Component Parts Location

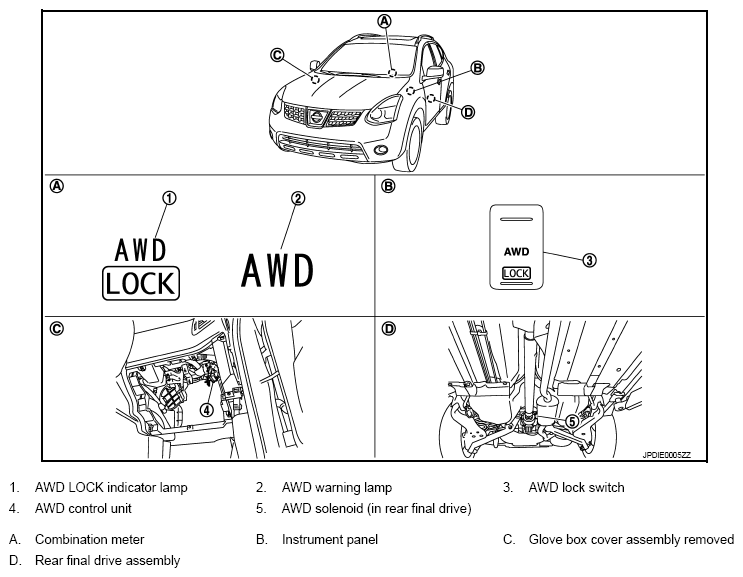

Fig 1: Identifying Electric Controlled Coupling Components
G09611454Courtesy of NISSAN NORTH AMERICA, INC.
