Charging Systems
>>
DTC/Circuit Diagnosis
>>
Charging System
>>
Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector End Views

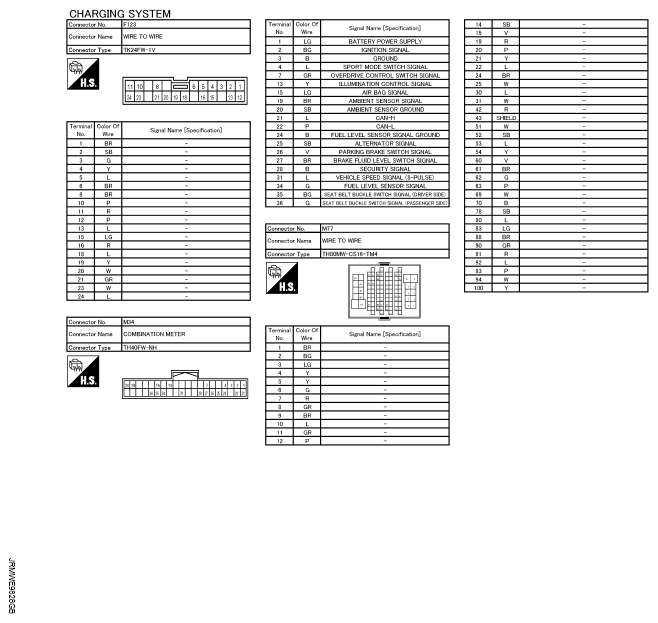

Fig 1: Charging System Connector End View (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

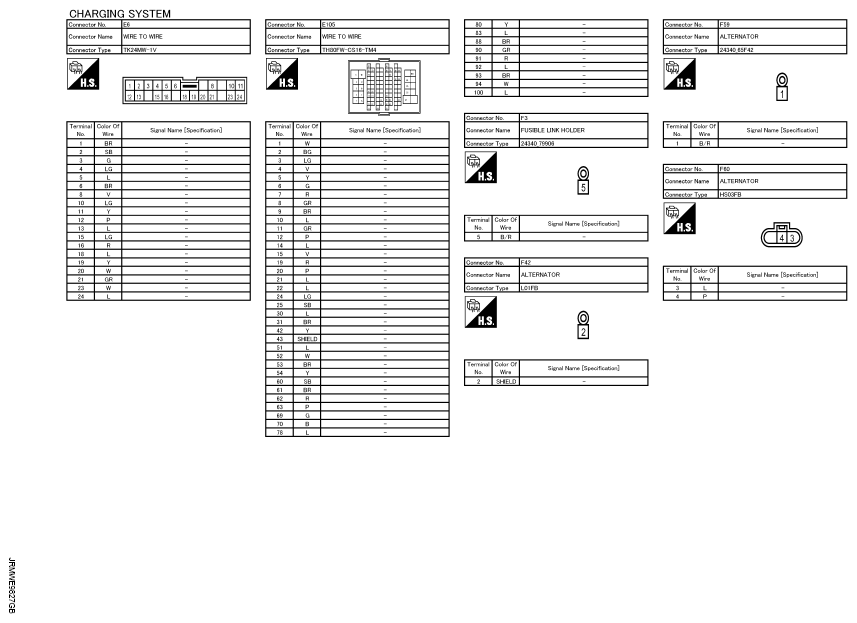

Fig 2: Charging System Connector End View (2 Of 2)
