Power Window System Connector End Views

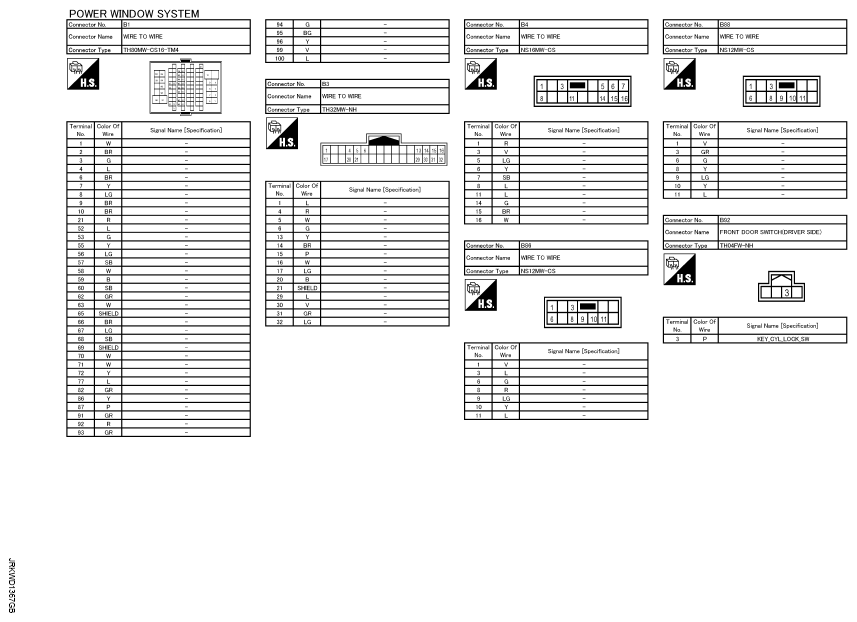

Fig 1: Power Window System Connector End View (1 Of 5)
G09612814Courtesy of NISSAN NORTH AMERICA, INC.

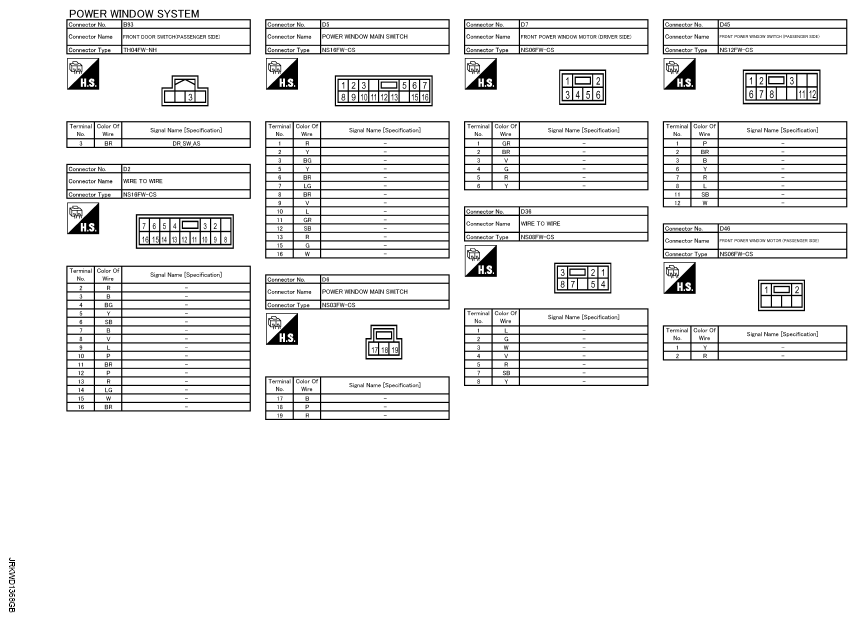

Fig 2: Power Window System Connector End View (2 Of 5)
G09612815Courtesy of NISSAN NORTH AMERICA, INC.

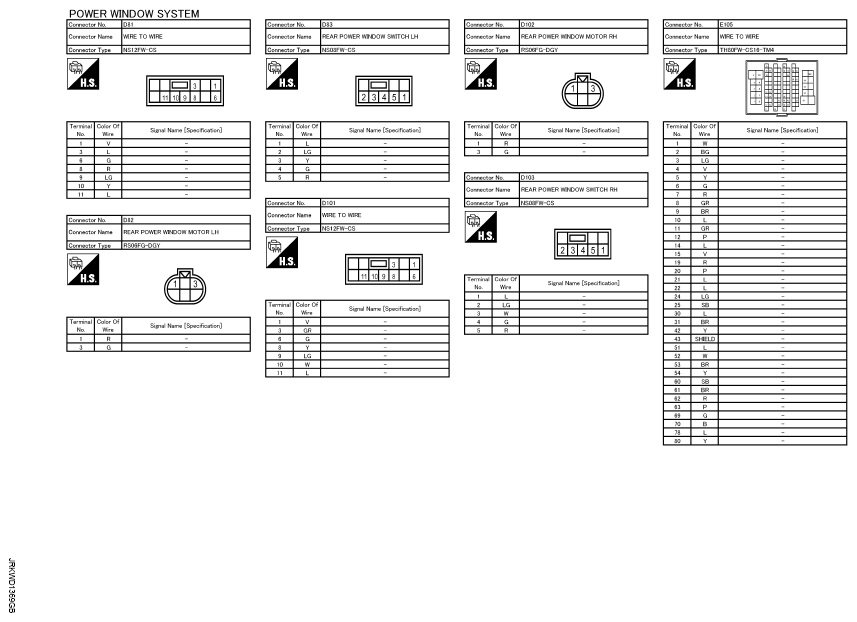

Fig 3: Power Window System Connector End View (3 Of 5)
G09612816Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Power Window System Connector End View (4 Of 5)
G09612817Courtesy of NISSAN NORTH AMERICA, INC.

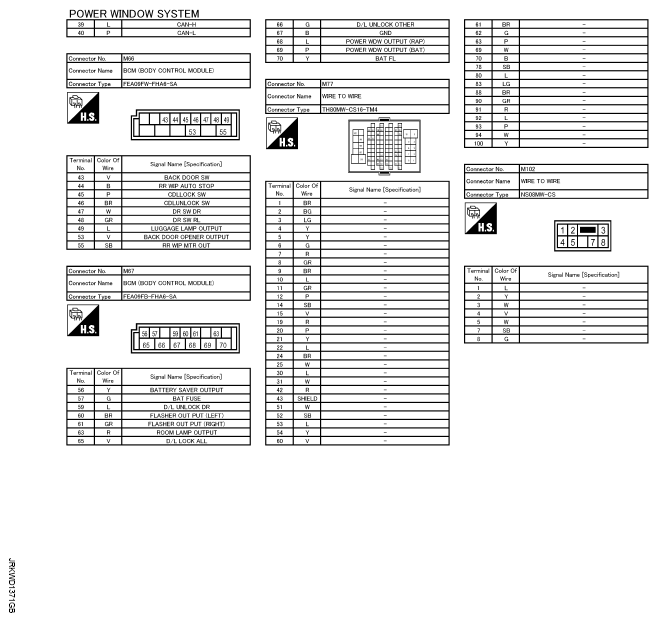

Fig 5: Power Window System Connector End View (5 Of 5)
G09612818Courtesy of NISSAN NORTH AMERICA, INC.
