IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector End Views

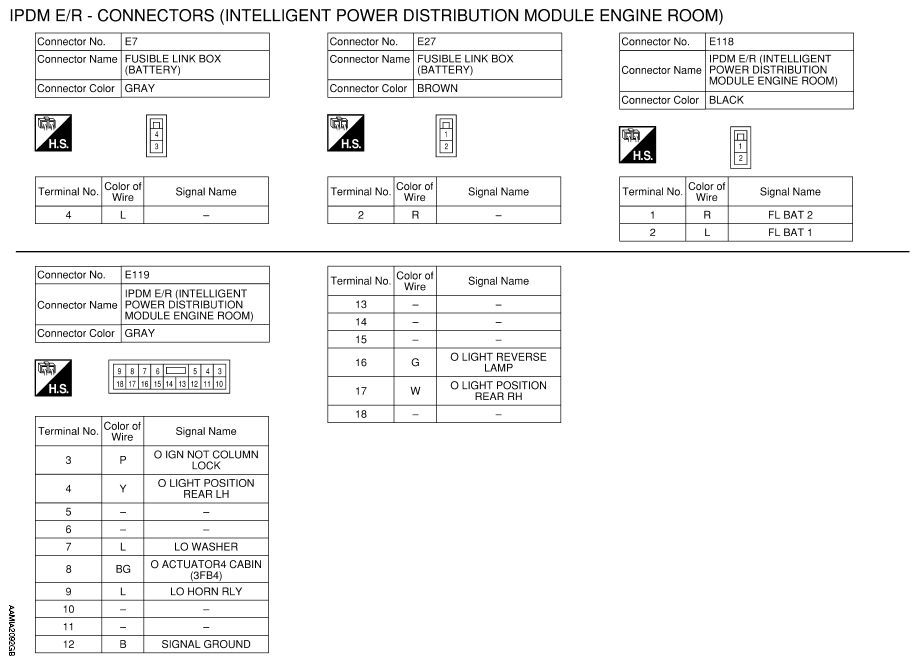

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

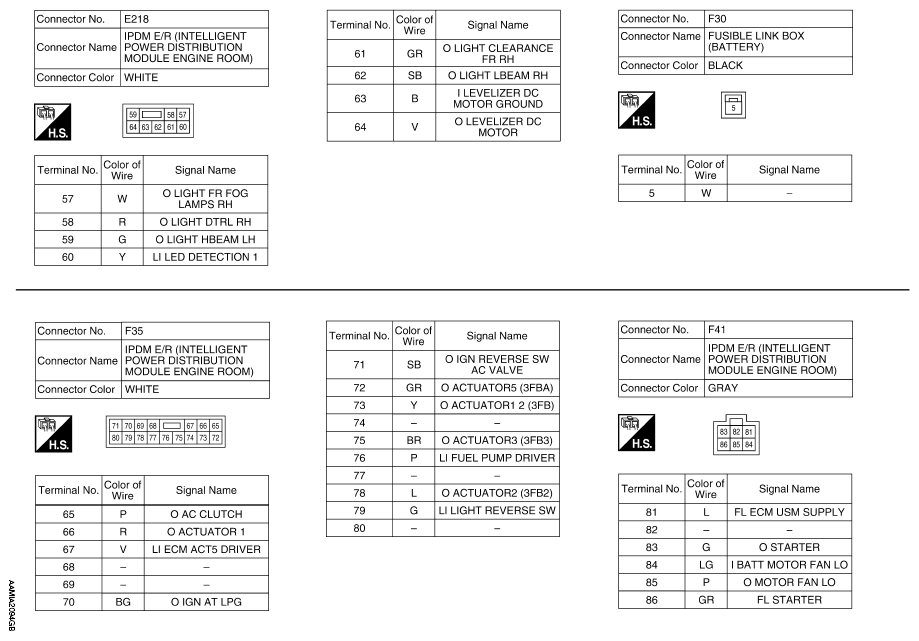

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

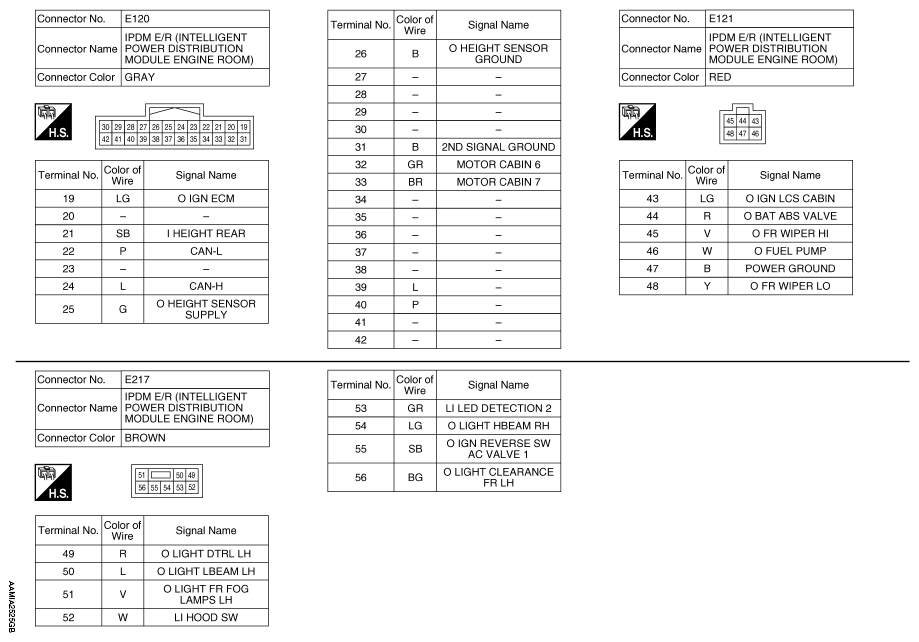

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
