Connector End Views

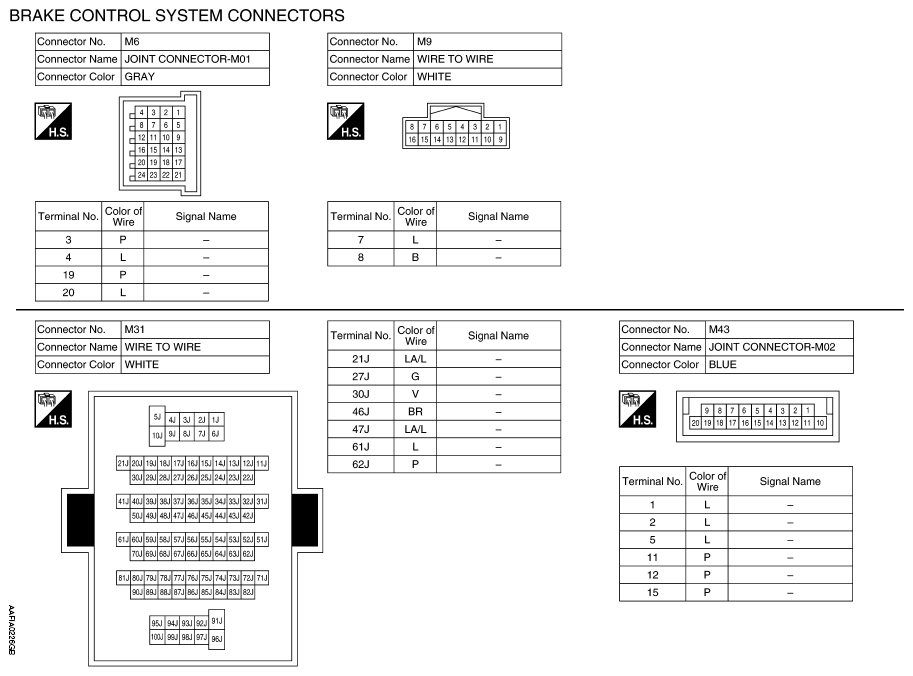

Fig 1: Brake Control System Connector End Views (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

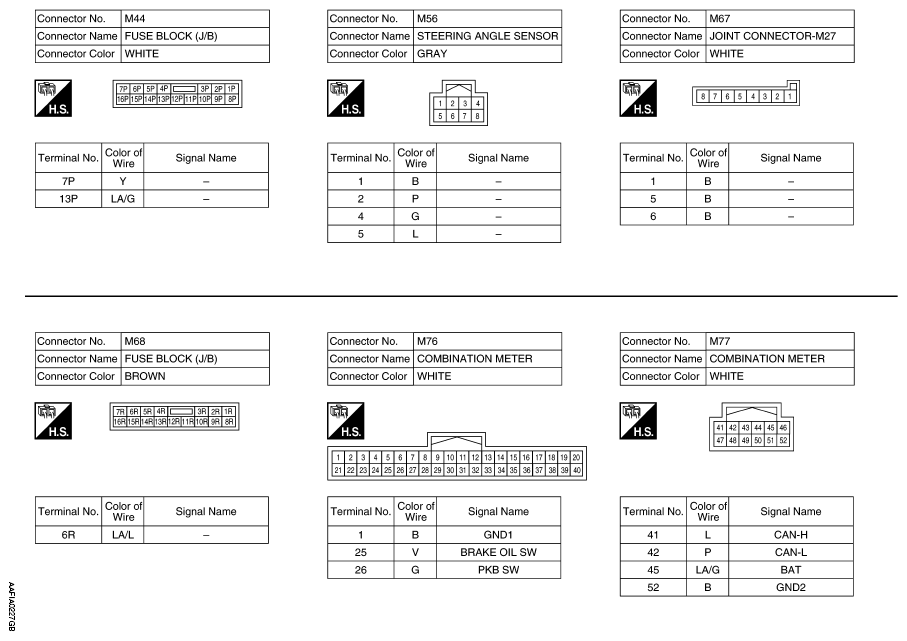

Fig 2: Brake Control System Connector End Views (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

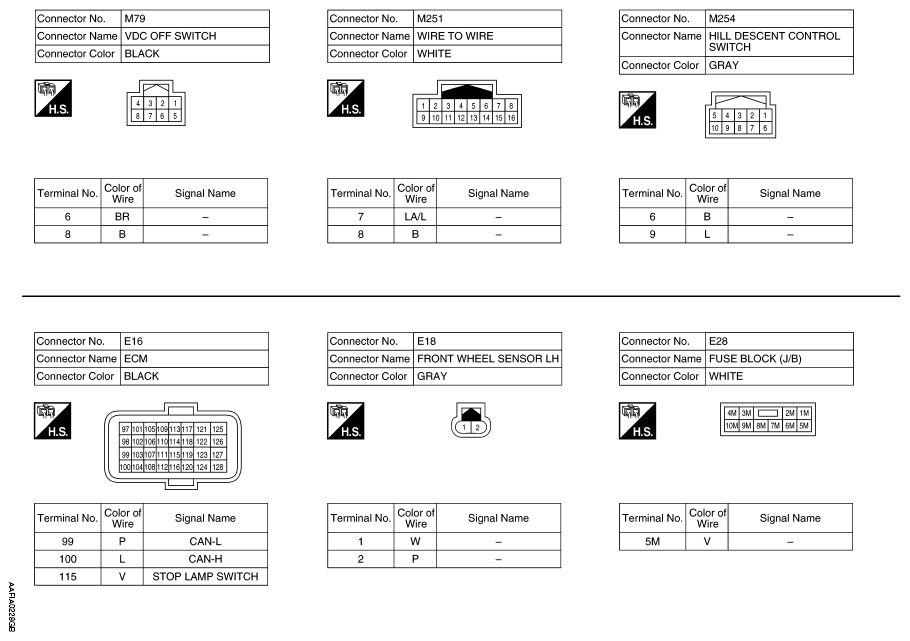

Fig 3: Brake Control System Connector End Views (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

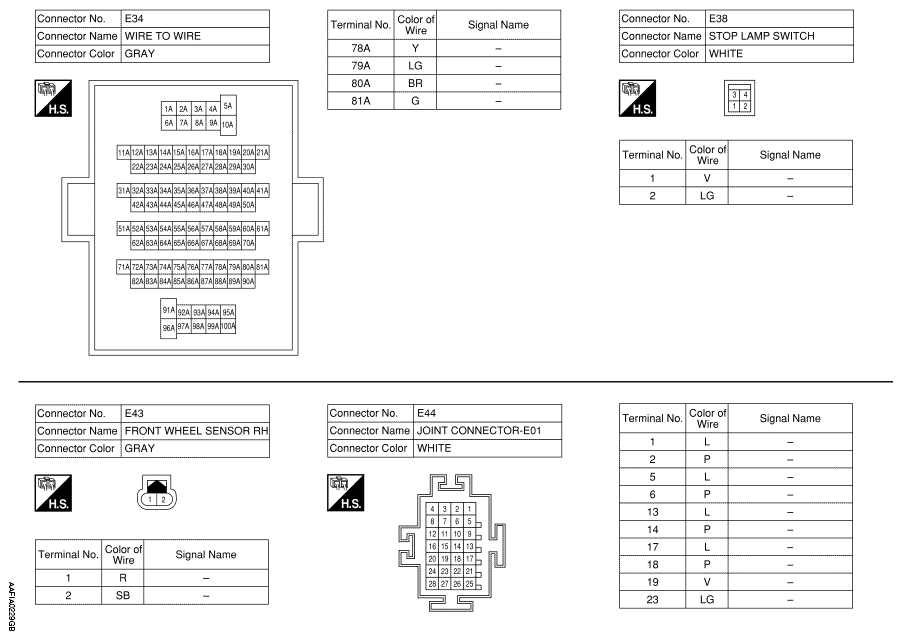

Fig 4: Brake Control System Connector End Views (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

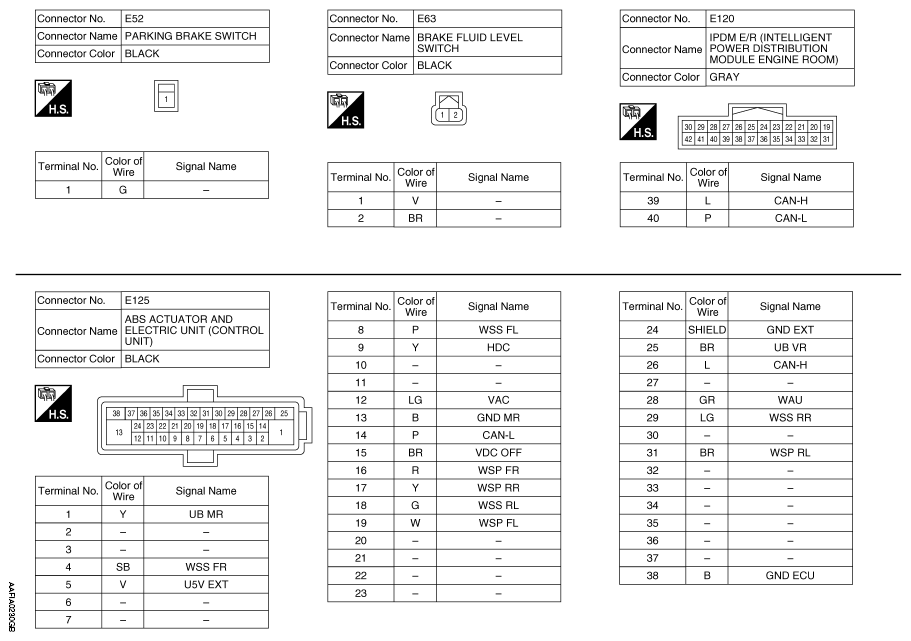

Fig 5: Brake Control System Connector End Views (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

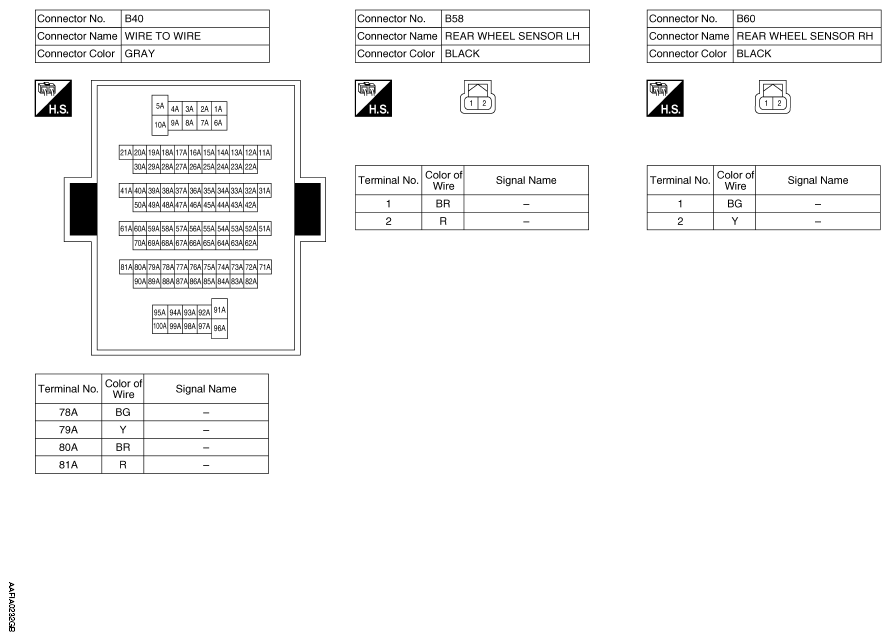

Fig 6: Brake Control System Connector End Views (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

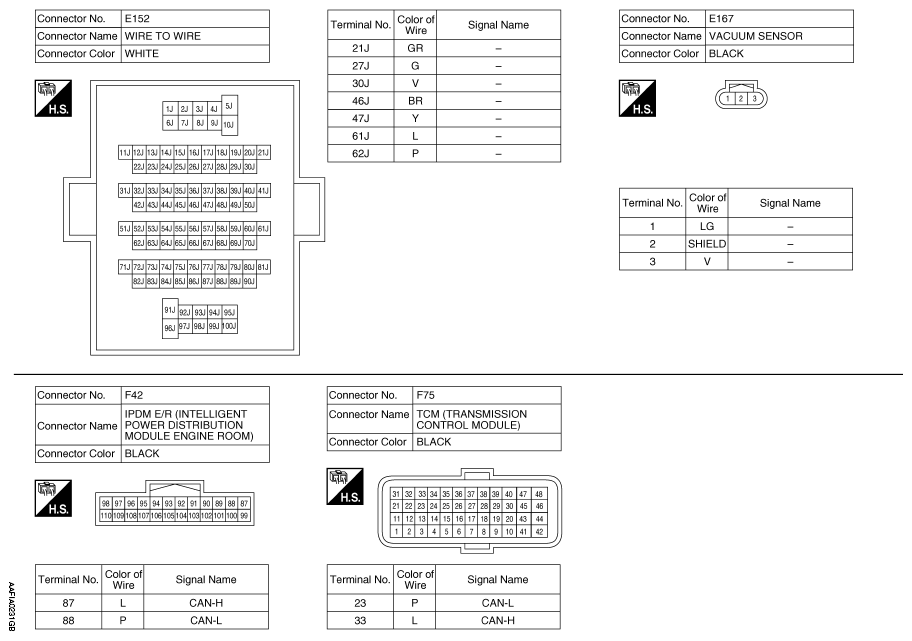

Fig 7: Brake Control System Connector End Views (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
