Exploded View

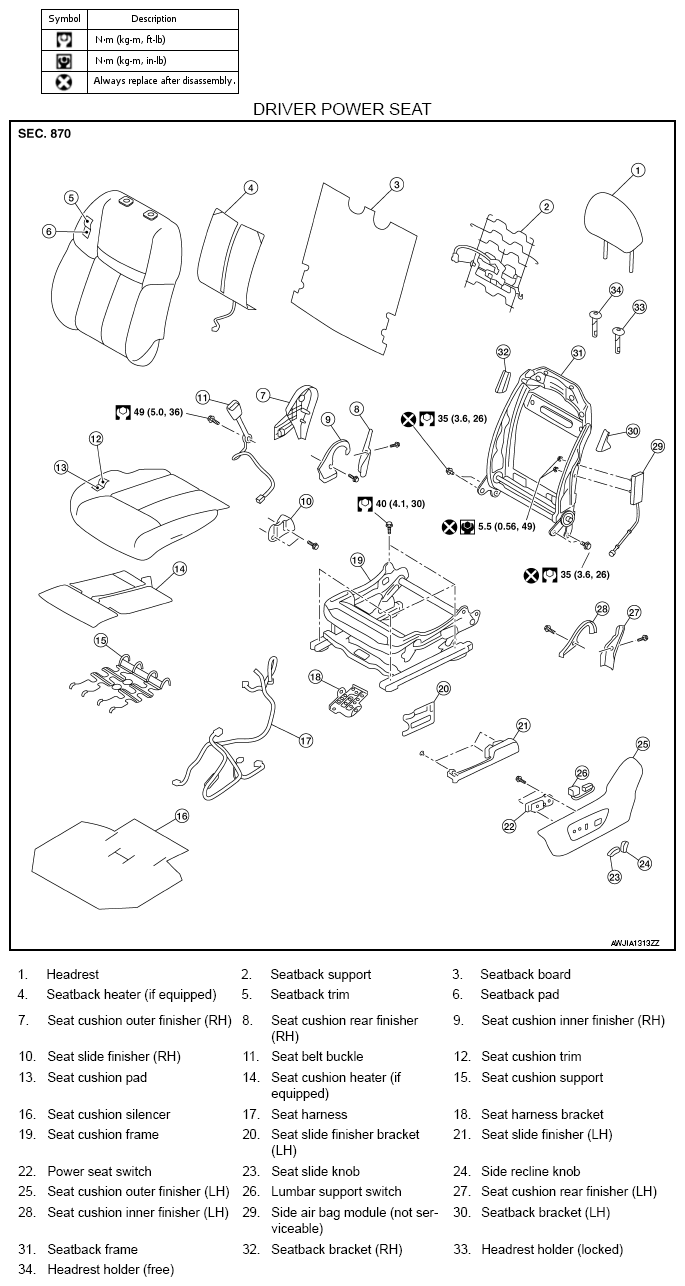

Fig 1: Exploded View Of Front Seat (Driver Power Seat) With Torque Specifications
G09158207Courtesy of NISSAN NORTH AMERICA, INC.

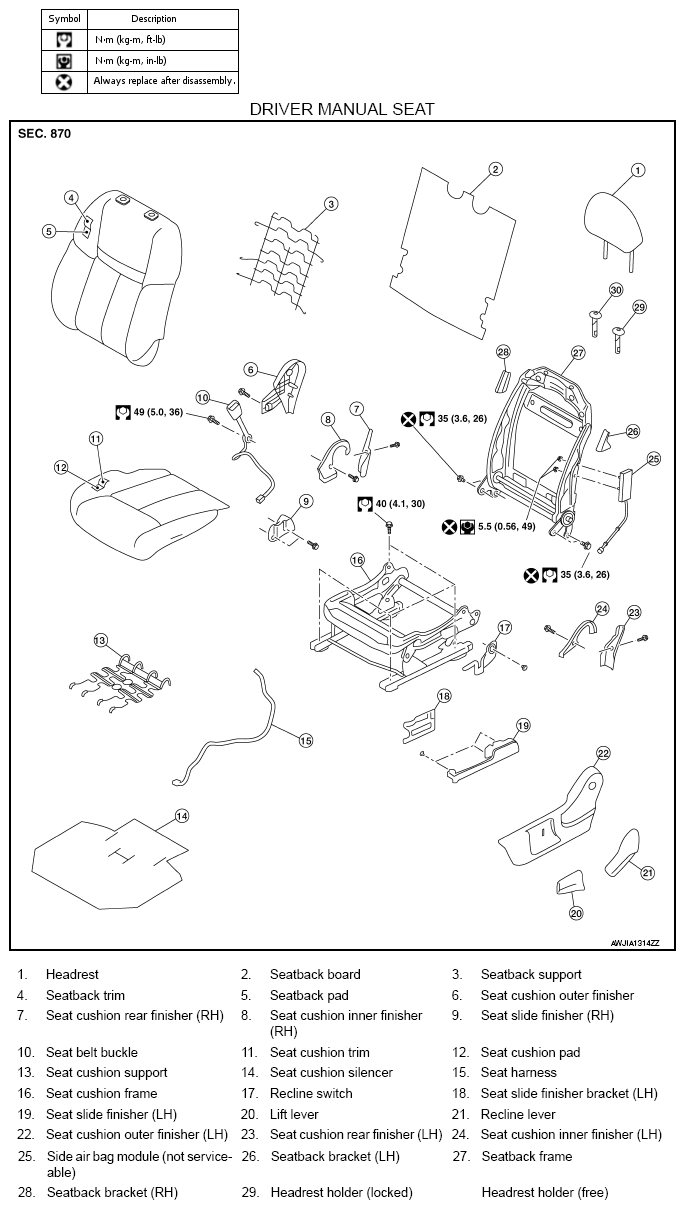

Fig 2: Exploded View Of Front Seat (Driver Manual Seat) With Torque Specifications
G09158208Courtesy of NISSAN NORTH AMERICA, INC.

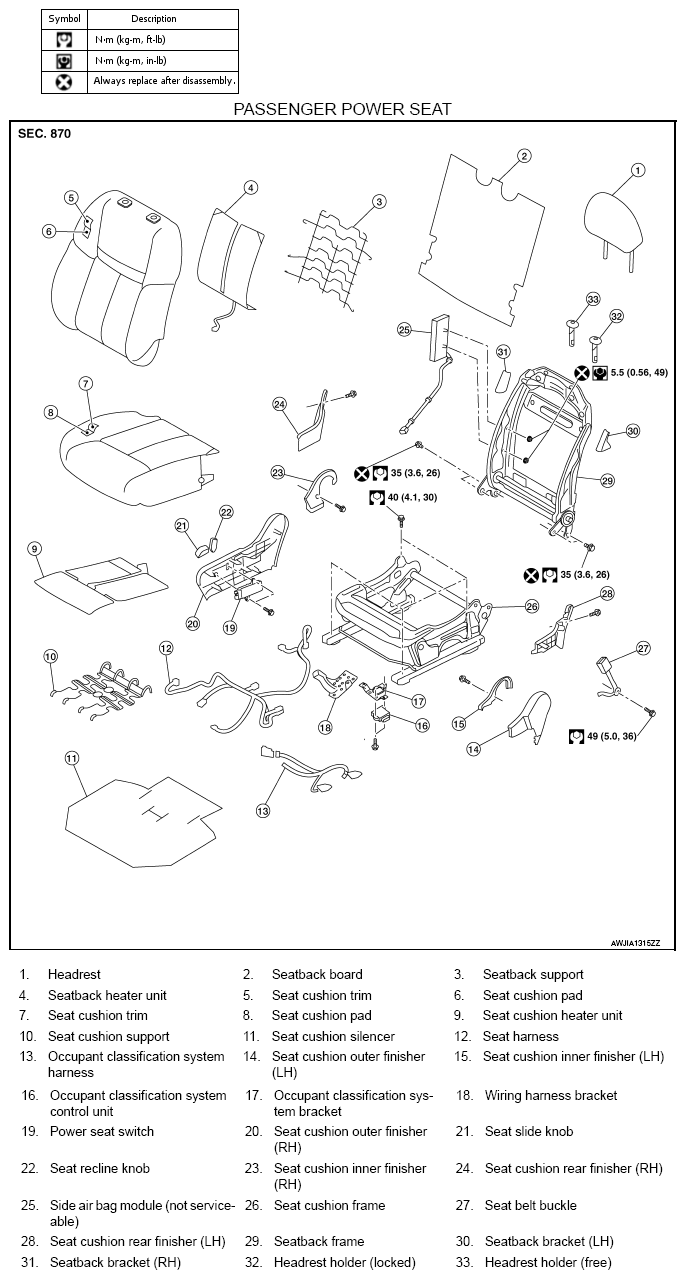

Fig 3: Exploded View Of Front Seat (Passenger Power Seat) With Torque Specifications
G09158209Courtesy of NISSAN NORTH AMERICA, INC.

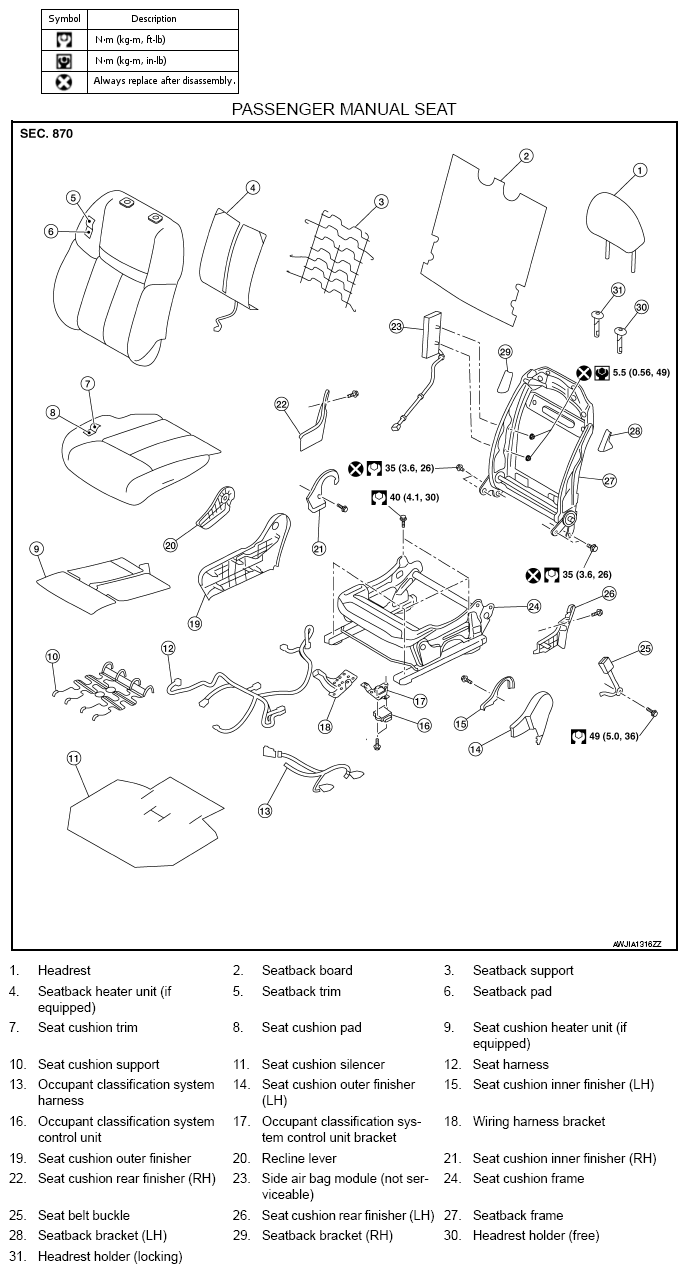

Fig 4: Exploded View Of Front Seat (Passenger Manual Seat) With Torque Specifications
G09158210Courtesy of NISSAN NORTH AMERICA, INC.
