Setting The Distance Sensor Target Board: Description

Accurate adjustment of the radar alignment requires that the distance sensor target board be accurately positioned.

CAUTION: If the radar alignment is adjusted with the distance sensor target board in the incorrect position, the distance system will not function properly or the alignment procedure may not be completed successfully.

DISTANCE SENSOR TARGET BOARD FINAL SETTING
1. With the distance sensor target board arm extended, the laser beam (1) emitted by the laser assembly (A) will be reflected back (B) toward the laser assembly.
  NOTE: When adjusted properly, reflected laser beam (B) must align with emitted laser beam (A) and the two laser beams will be seen as one.
2. Rotate the distance sensor target board to achieve the necessary horizontal adjustment.
3. Adjust the distance sensor target board leveling screws to achieve the necessary vertical adjustment.

  Fig 1: Identifying Emitted And Reflected Laser Beam
  Courtesy of NISSAN NORTH AMERICA, INC.
4. The figure shown below illustrates the laser beam (A) emitted by the laser assembly (1) and its reflection (B) off of the distance sensor target board arm.
Fig 2: Identifying Laser Assembly Emitted Laser Beam And Reflection
Courtesy of NISSAN NORTH AMERICA, INC.

: GO TO 2.
CHECK THE POSITION OF THE DISTANCE SENSOR TARGET BOARD
Do not place anything other than the distance sensor target board in the space shown below in front of the vehicle (view from top).

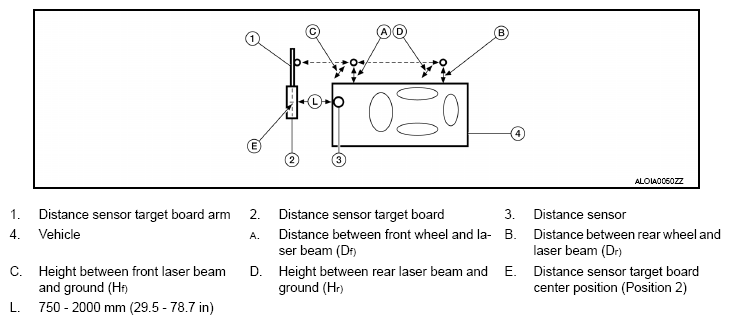

Fig 3: Identifying Distance Sensor Target Board Adjustment Dimensions
Courtesy of NISSAN NORTH AMERICA, INC.

: Refer to "DISTANCE SENSOR ADJUSTMENT ".
