Removal and Installation: Removal

  1. Remove screw cover (1).

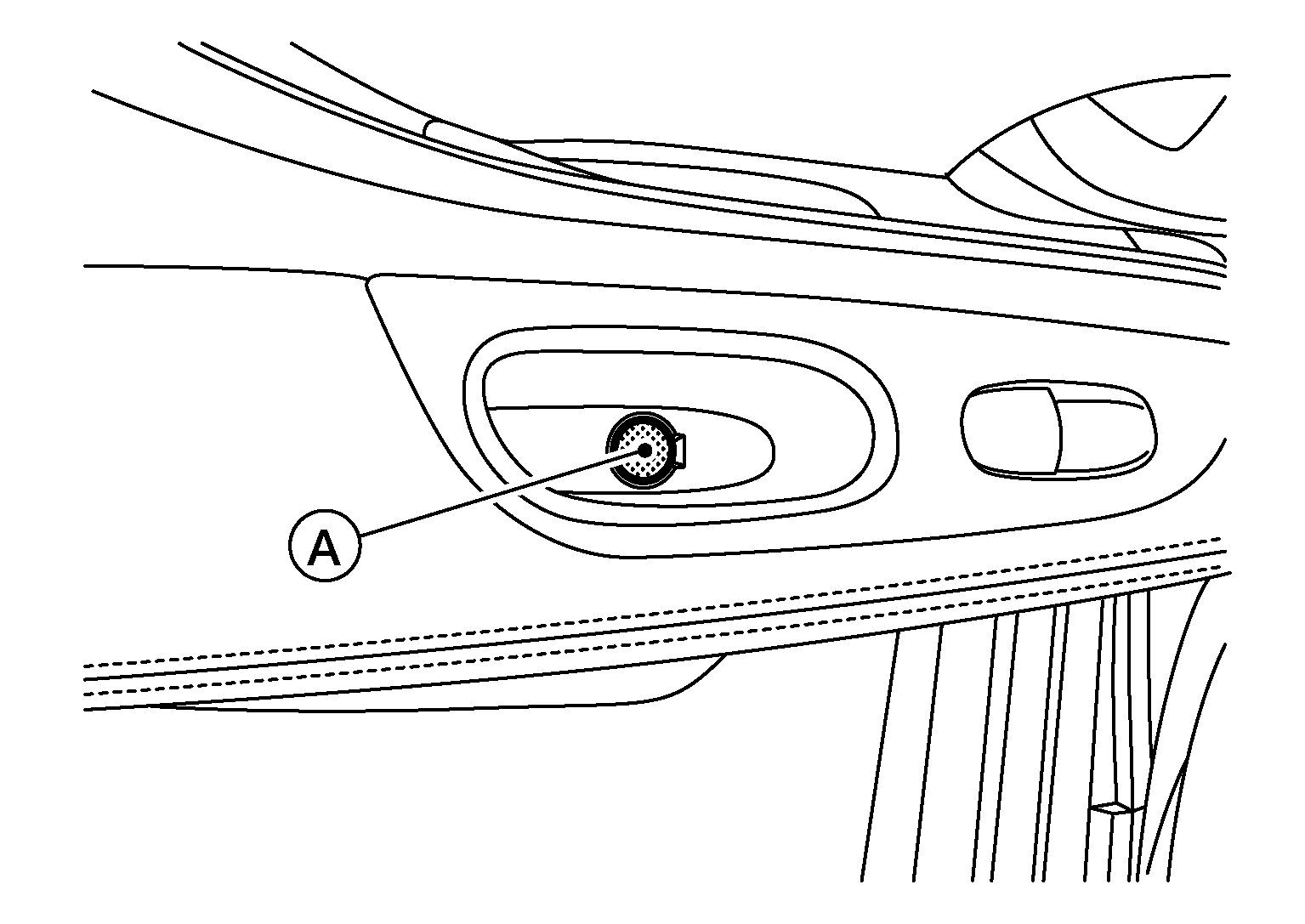

    Fig 1: Identifying Rear Power Window Switch Screw Cover
    G09158073Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove screw (A).
    Fig 2: Identifying Rear Power Window Switch Screw
    G09158074Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls using a suitable tool (A) and remove rear power window switch finisher (1).

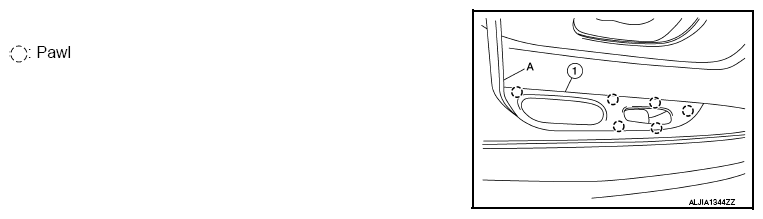

    Fig 3: Remove Rear Power Window Switch Finisher Using Tool
    G09156906Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connector from rear power window switch.
  5. Release the pawls, then separate the rear power window switch (1) from the switch finisher (2).

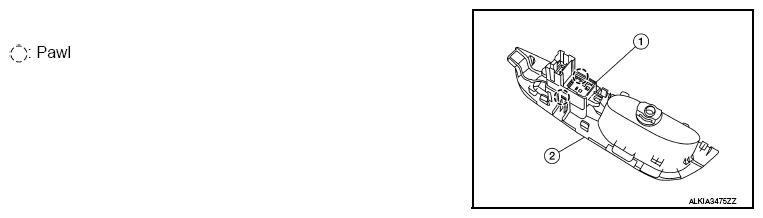

    Fig 4: Identifying Rear Power Window Switch And Finisher
    G09156907Courtesy of NISSAN NORTH AMERICA, INC.
