Disassembly And Assembly

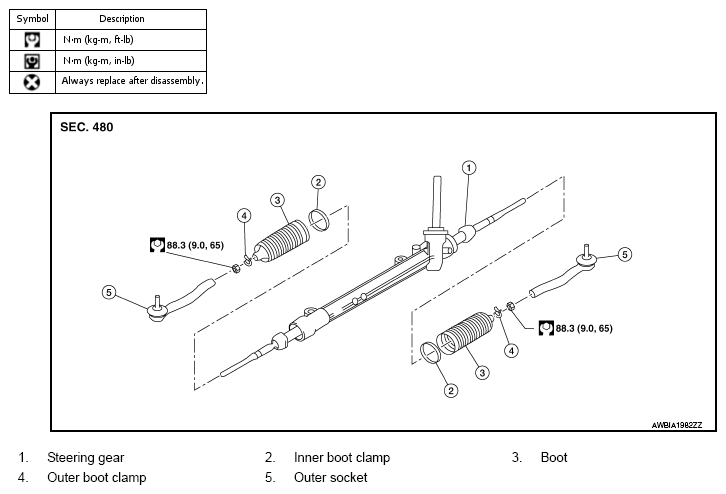

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G09156687Courtesy of NISSAN NORTH AMERICA, INC.
