Connector End Views

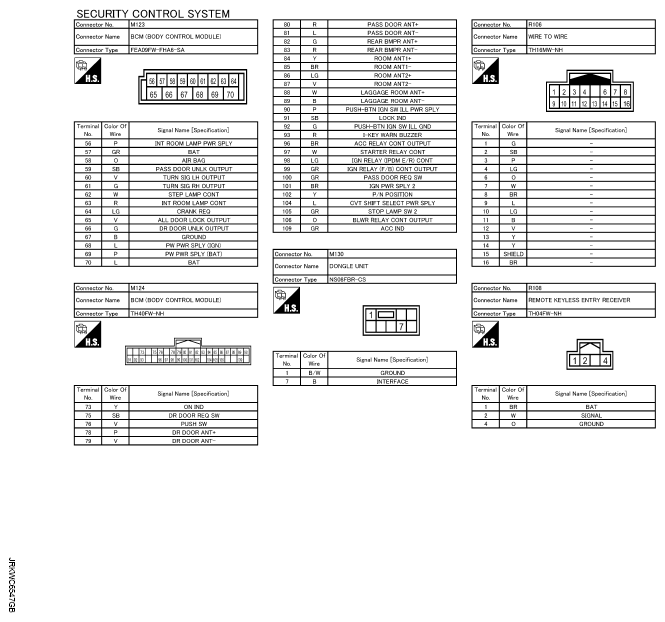

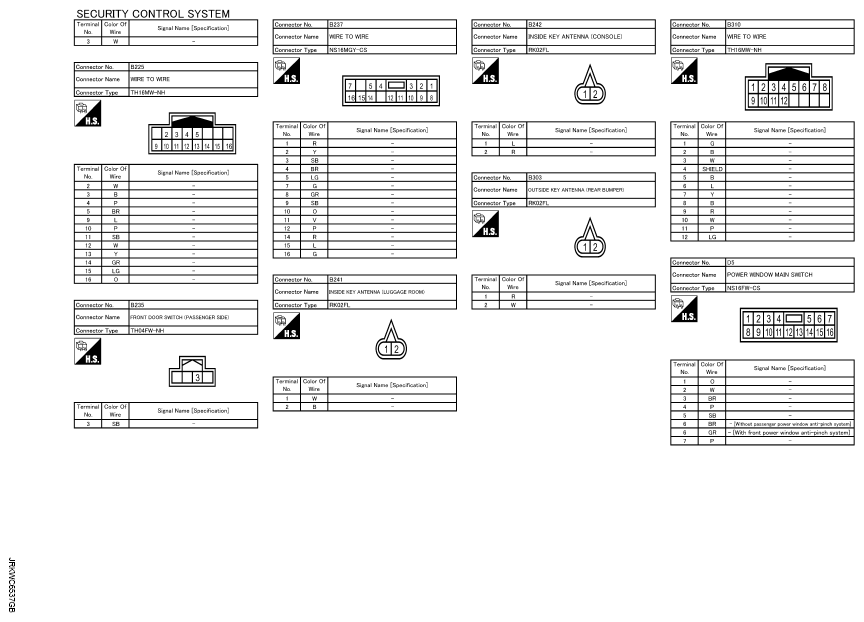

Fig 1: Security Control System Connector End View (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

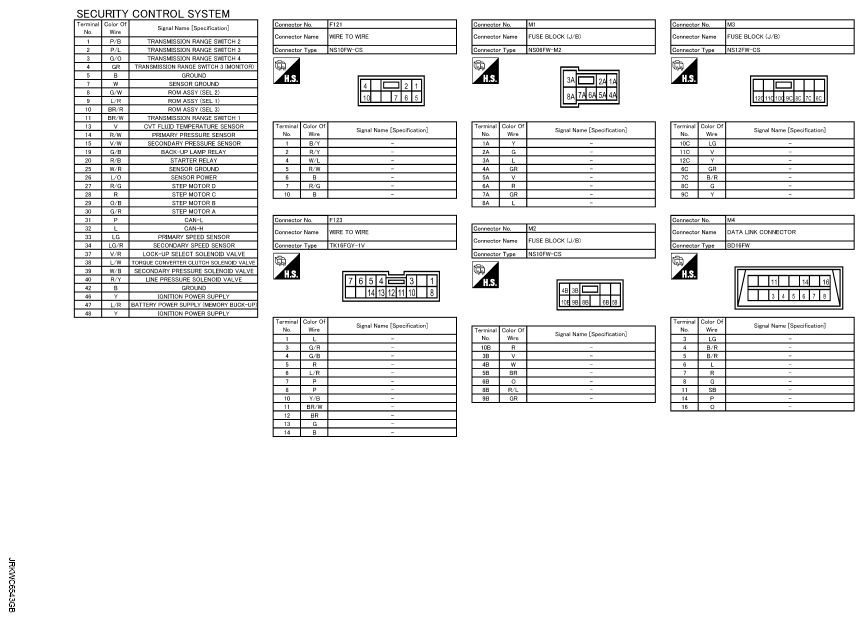

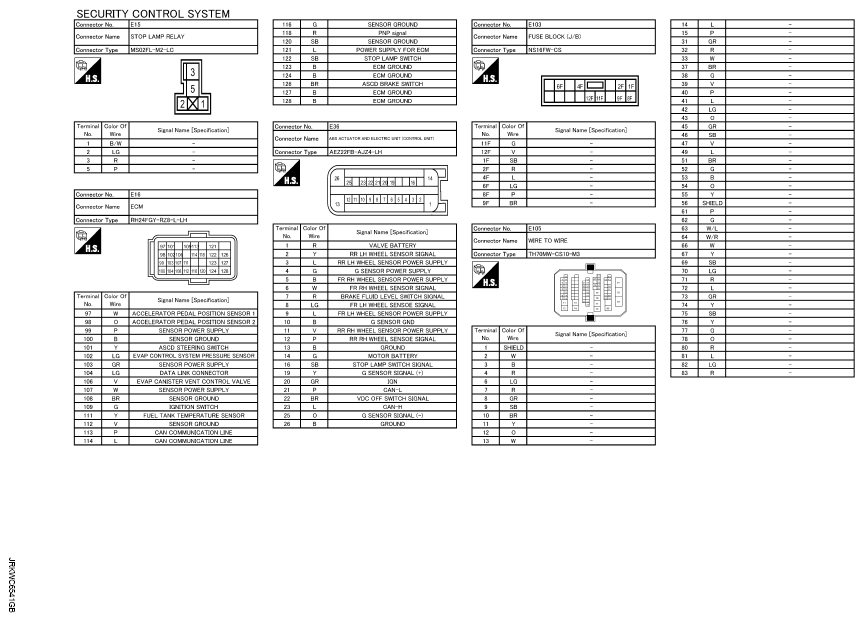

Fig 2: Security Control System Connector End View (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

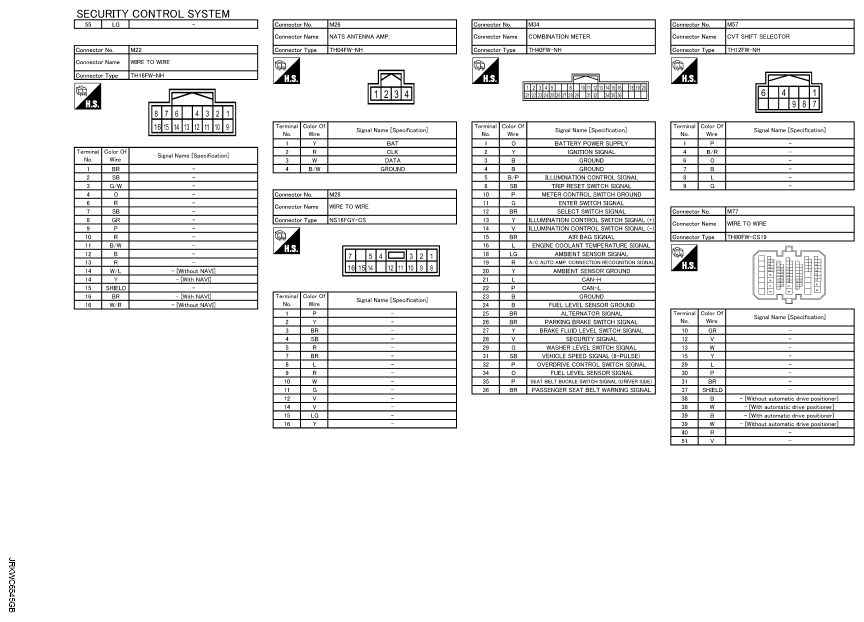

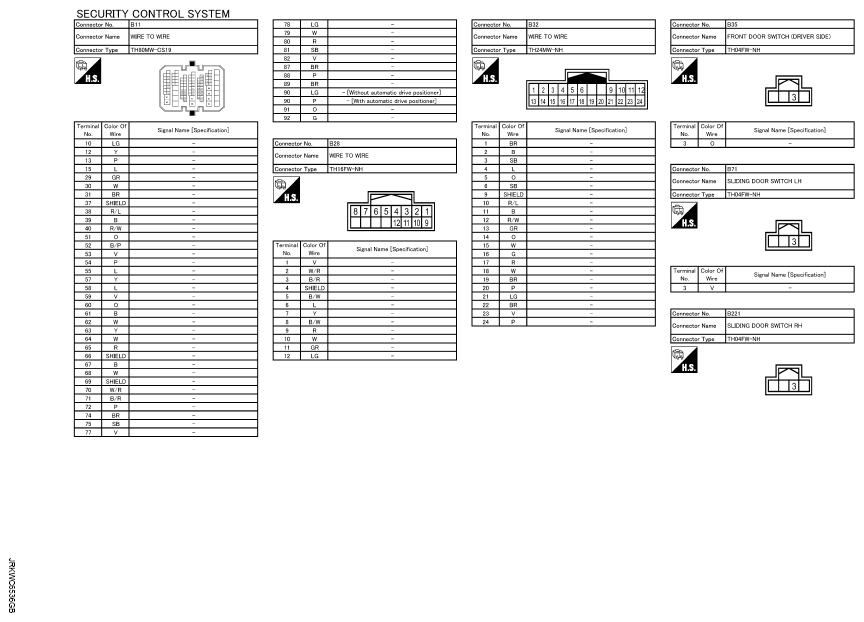

Fig 3: Security Control System Connector End View (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

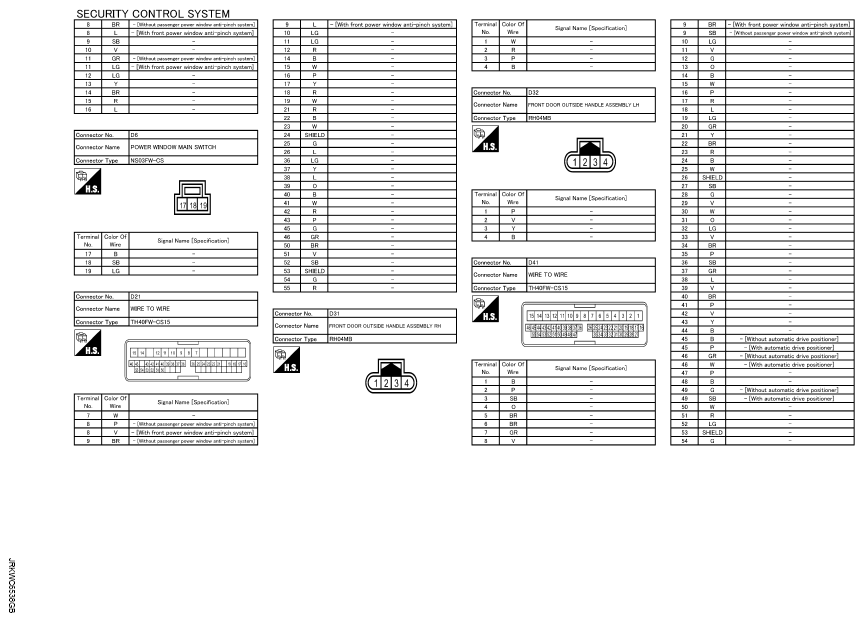

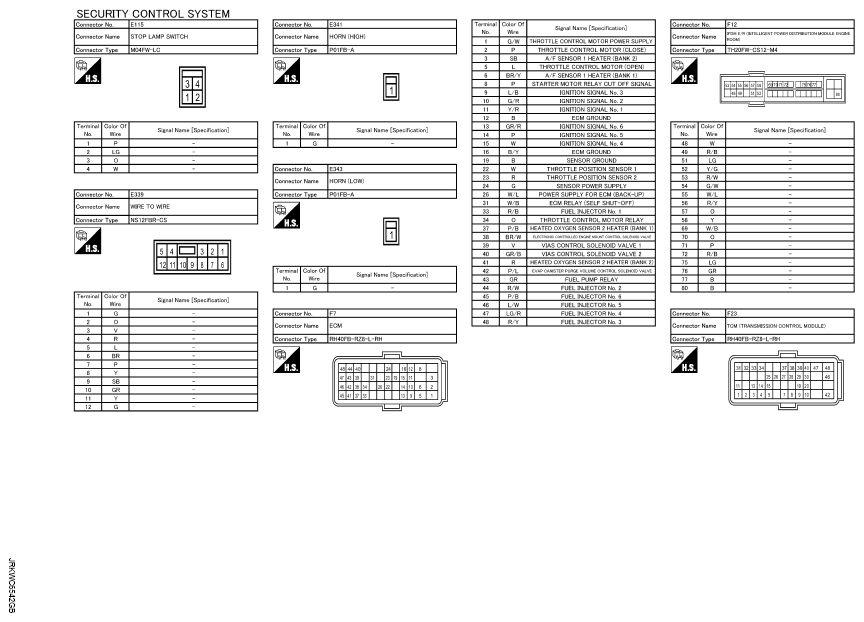

Fig 4: Security Control System Connector End View (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

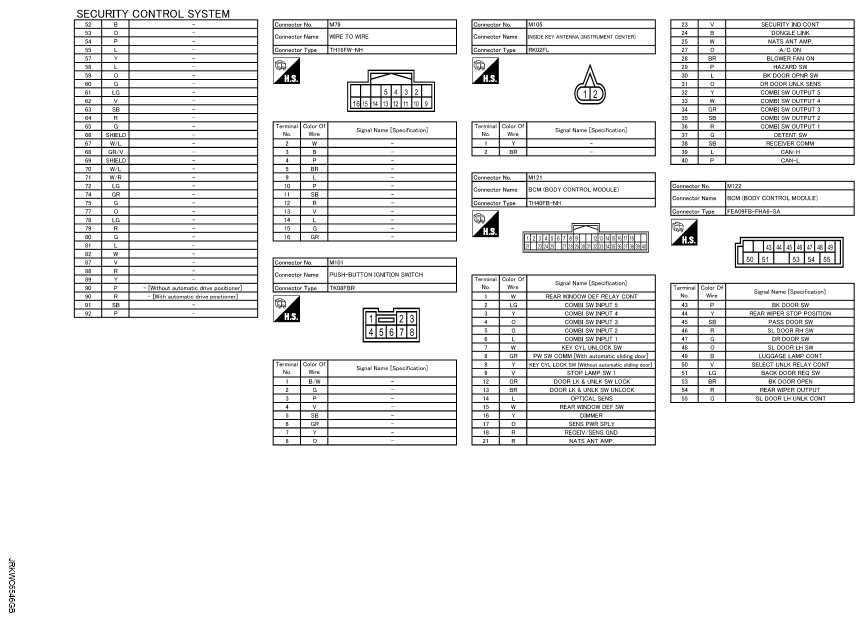

Fig 5: Security Control System Connector End View (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

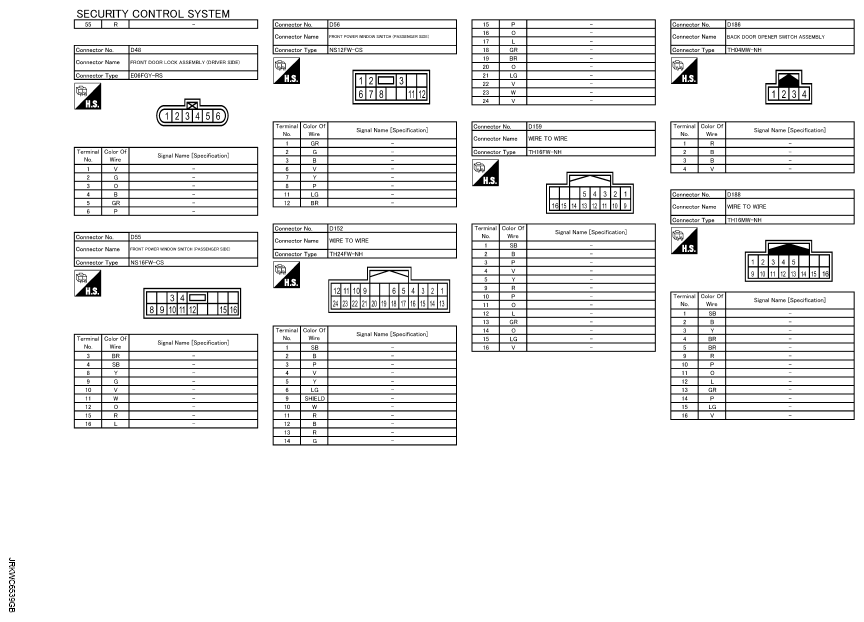

Fig 6: Security Control System Connector End View (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

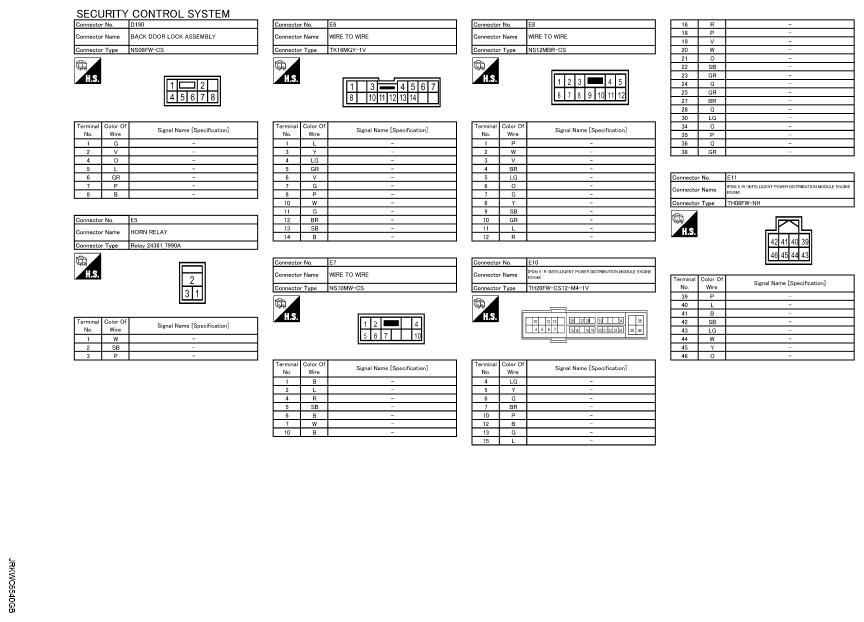

Fig 7: Security Control System Connector End View (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

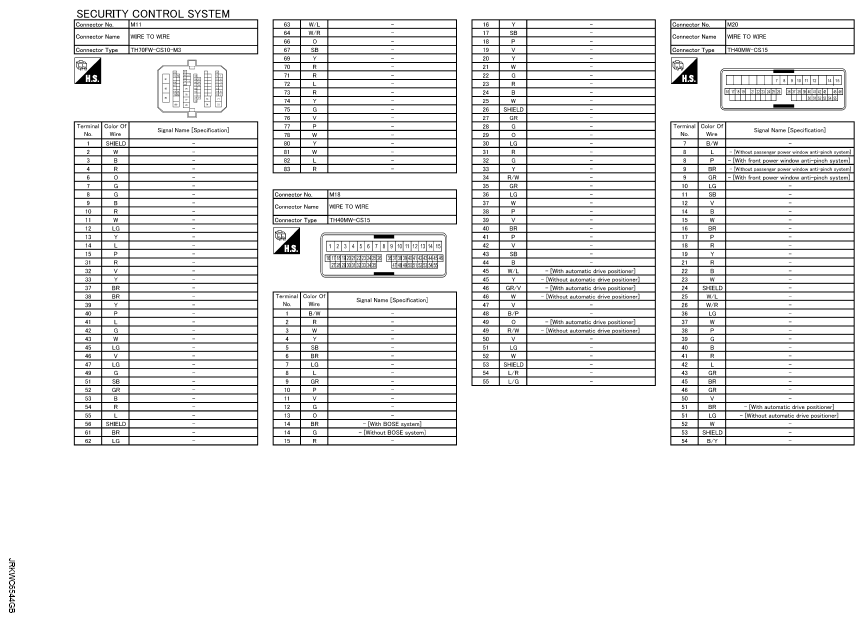

Fig 8: Security Control System Connector End View (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Security Control System Connector End View (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Security Control System Connector End View (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Security Control System Connector End View (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Security Control System Connector End View (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
