Engine Control System Connector End Views

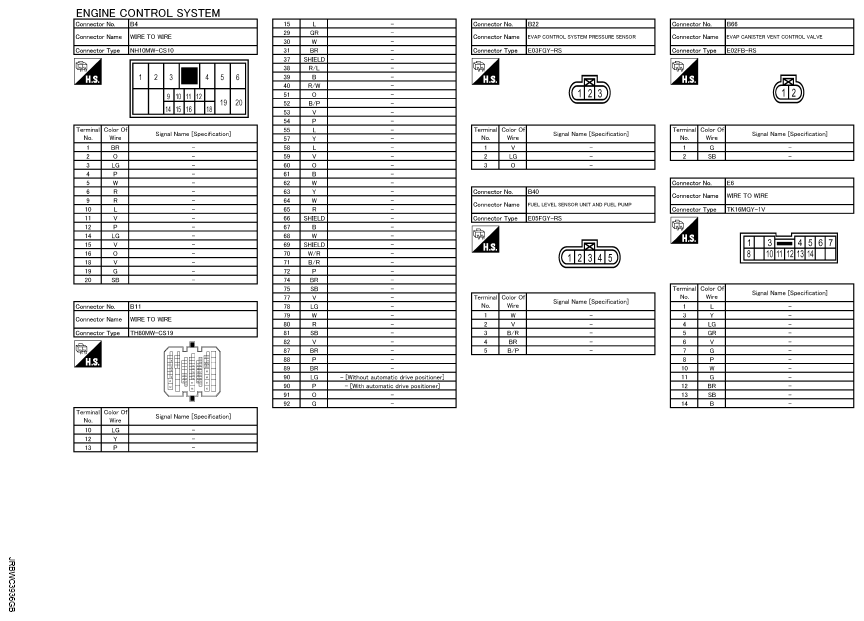

Fig 1: Engine Control System Connector End View (1 Of 11)
G09580848Courtesy of NISSAN NORTH AMERICA, INC.

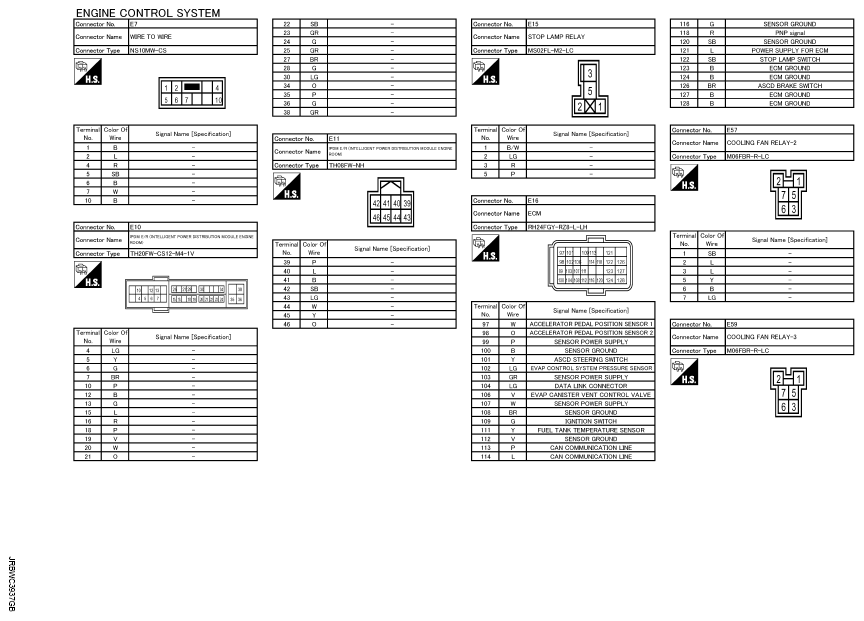

Fig 2: Engine Control System Connector End View (2 Of 11)
G09580849Courtesy of NISSAN NORTH AMERICA, INC.

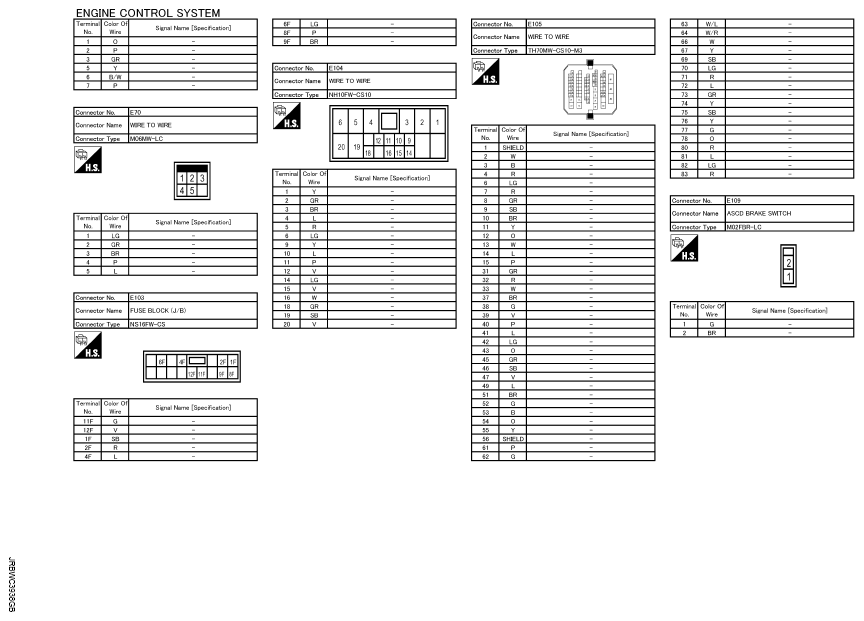

Fig 3: Engine Control System Connector End View (3 Of 11)
G09580850Courtesy of NISSAN NORTH AMERICA, INC.

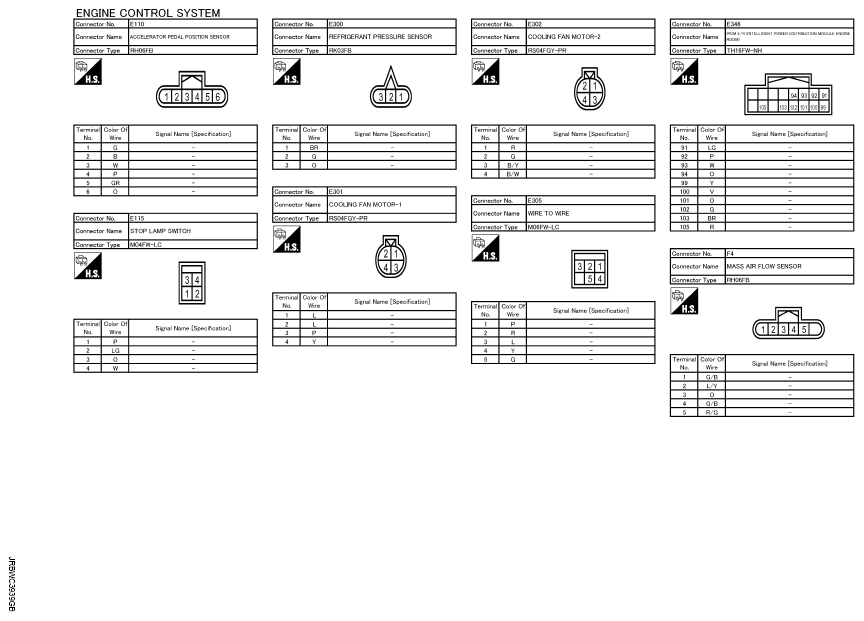

Fig 4: Engine Control System Connector End View (4 Of 11)
G09580851Courtesy of NISSAN NORTH AMERICA, INC.

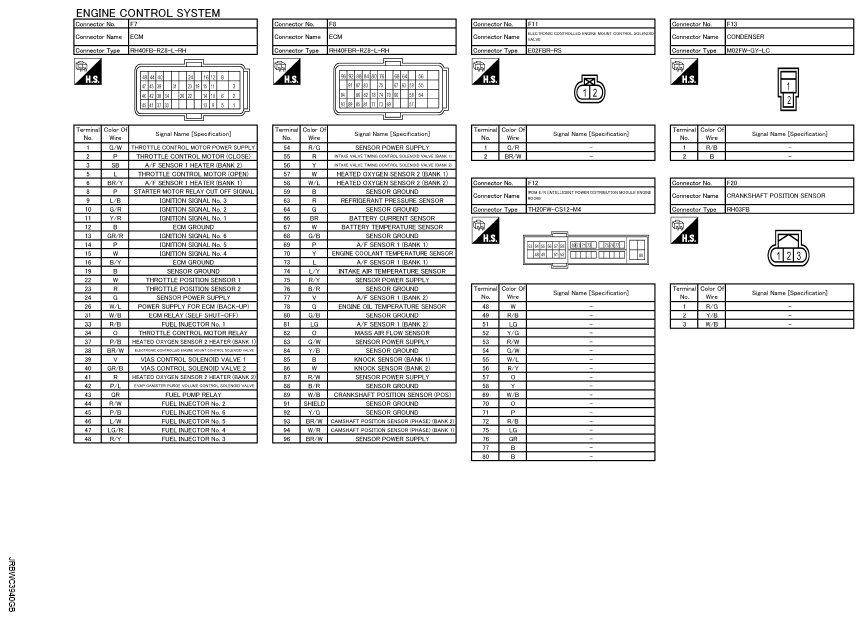

Fig 5: Engine Control System Connector End View (5 Of 11)
G09580852Courtesy of NISSAN NORTH AMERICA, INC.

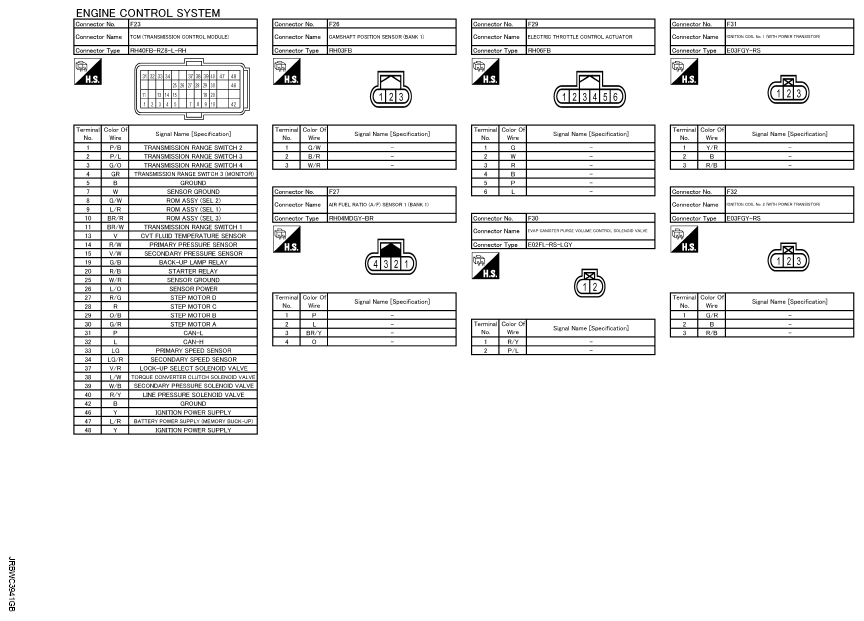

Fig 6: Engine Control System Connector End View (6 Of 11)
G09580853Courtesy of NISSAN NORTH AMERICA, INC.

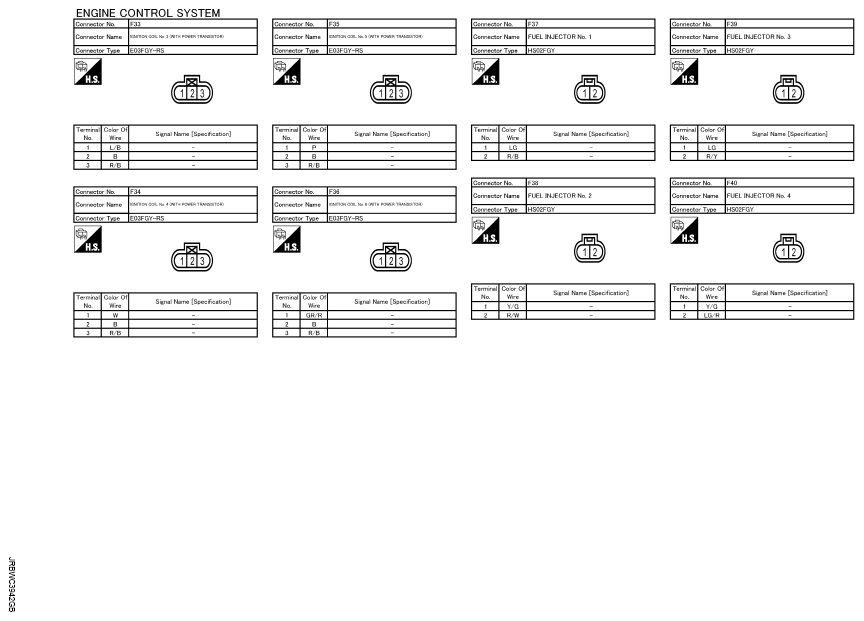

Fig 7: Engine Control System Connector End View (7 Of 11)
G09580854Courtesy of NISSAN NORTH AMERICA, INC.

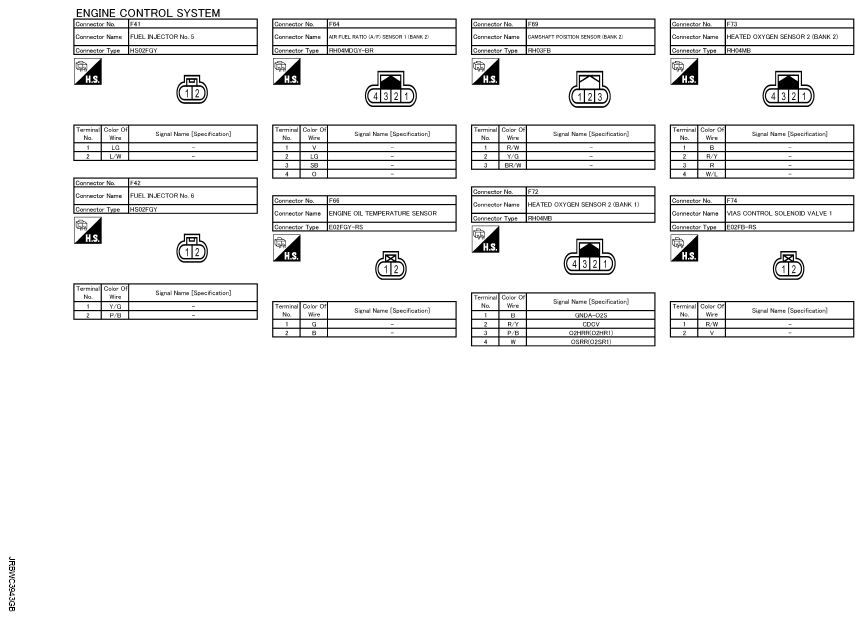

Fig 8: Engine Control System Connector End View (8 Of 11)
G09580855Courtesy of NISSAN NORTH AMERICA, INC.

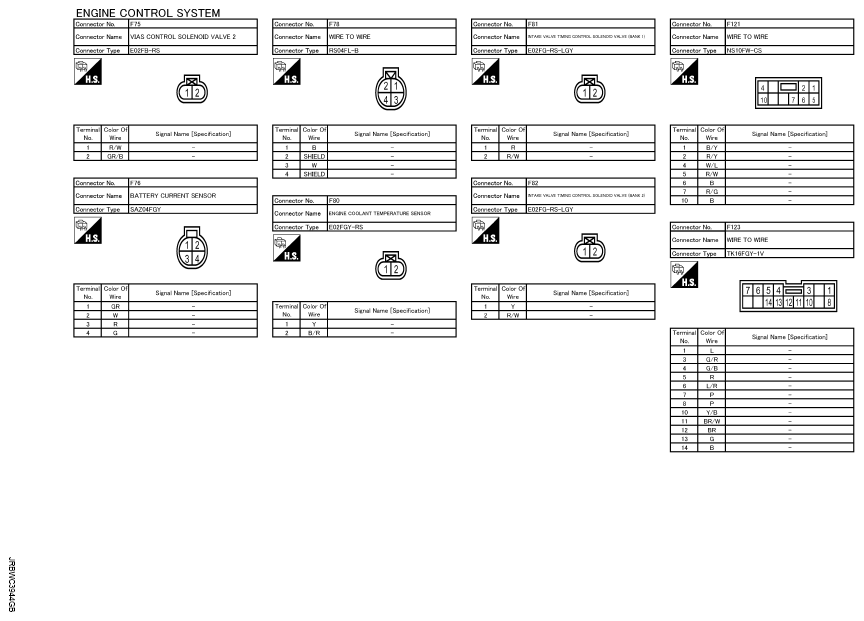

Fig 9: Engine Control System Connector End View (9 Of 11)
G09580856Courtesy of NISSAN NORTH AMERICA, INC.

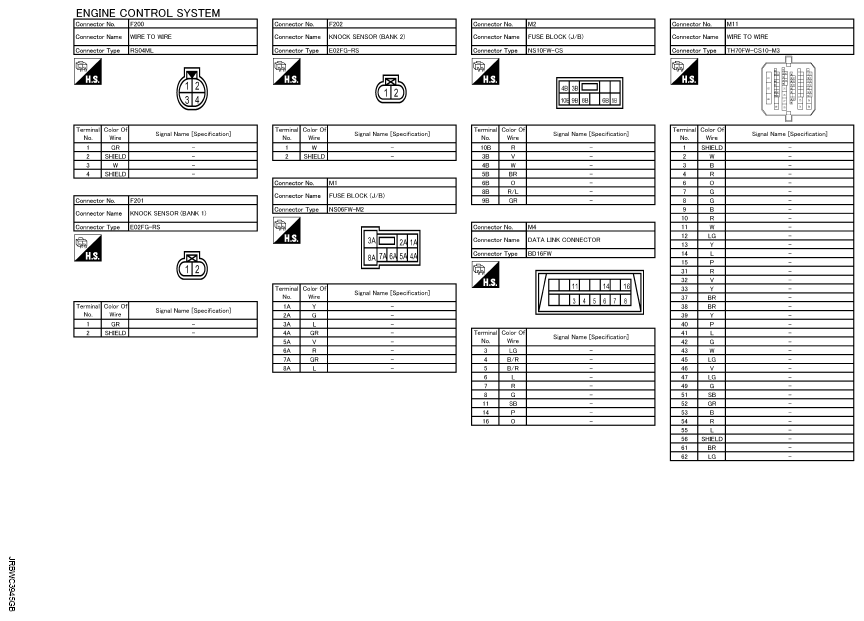

Fig 10: Engine Control System Connector End View (10 Of 11)
G09580857Courtesy of NISSAN NORTH AMERICA, INC.

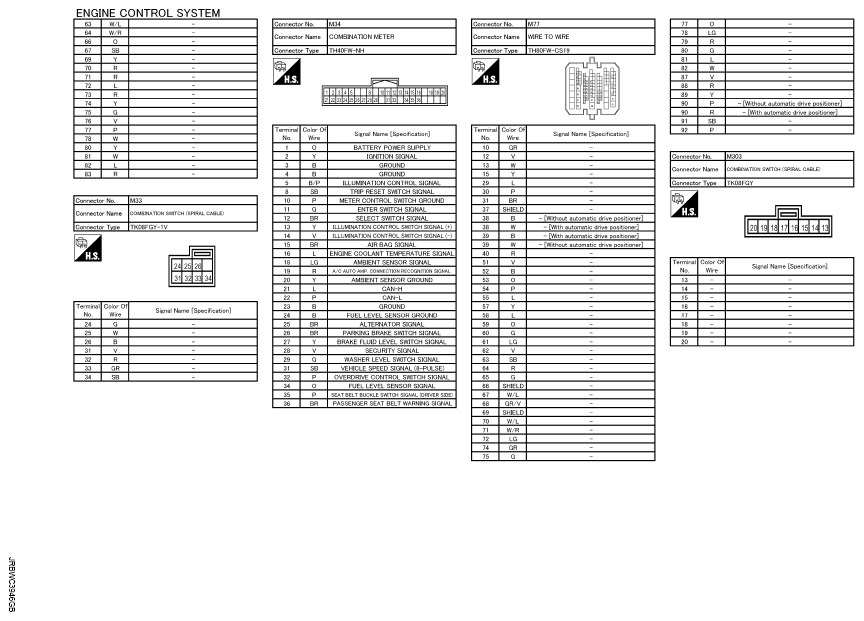

Fig 11: Engine Control System Connector End View (11 Of 11)
G09580858Courtesy of NISSAN NORTH AMERICA, INC.
