Component Parts Location

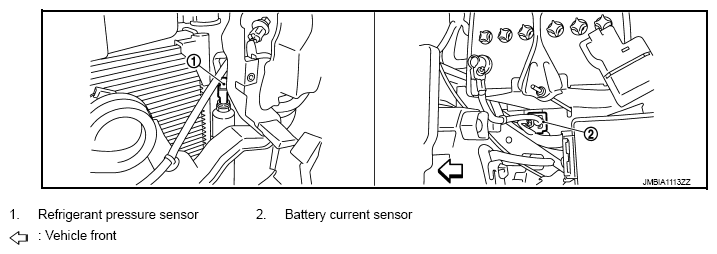

Fig 1: Evaporative Emission System Components Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

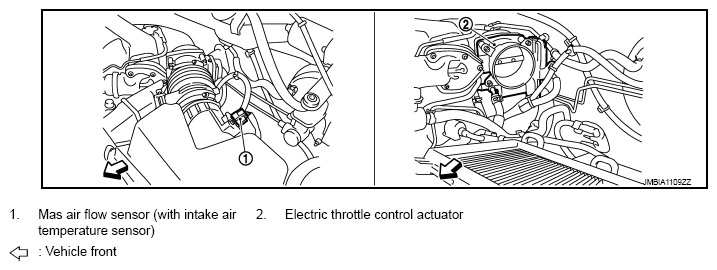

Fig 2: Evaporative Emission System Components Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

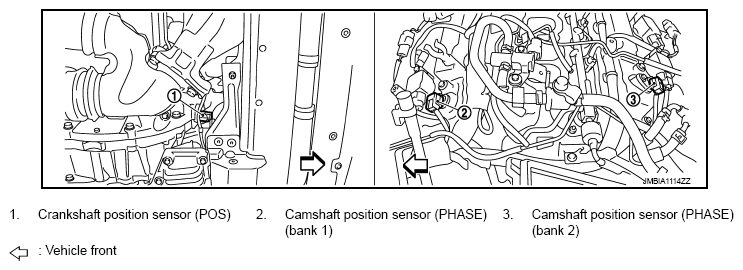

Fig 3: Evaporative Emission System Components Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

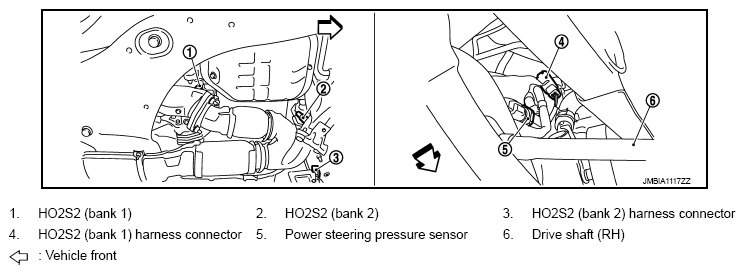

Fig 4: Evaporative Emission System Components Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

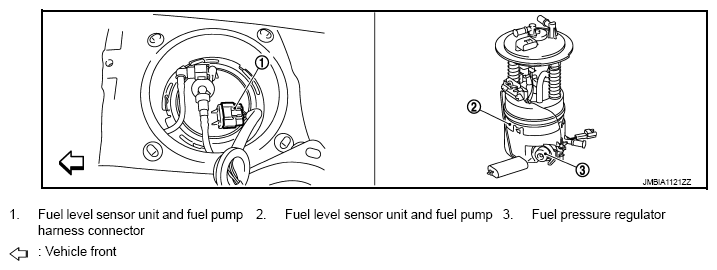

Fig 5: Evaporative Emission System Components Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

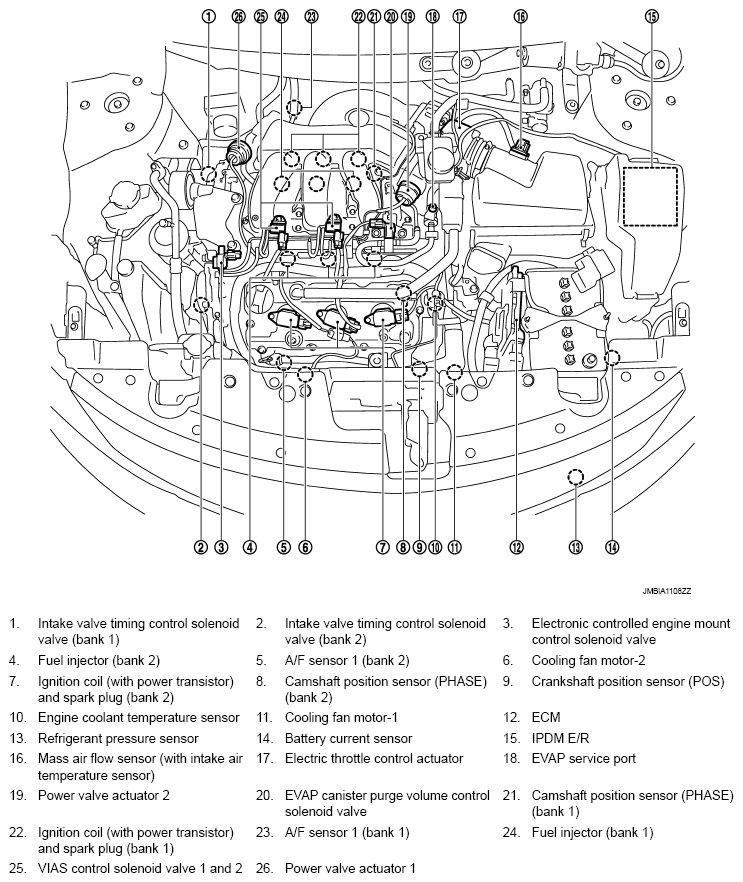

Fig 6: Evaporative Emission System Components Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

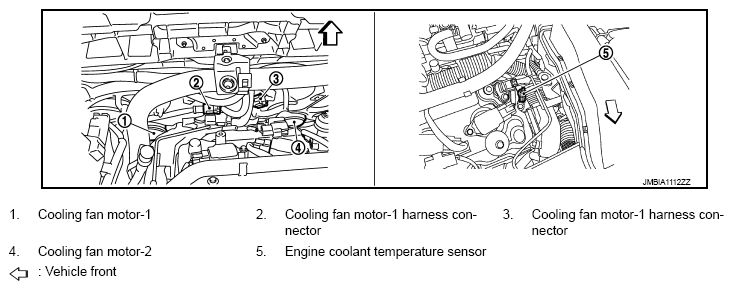

Fig 7: Evaporative Emission System Components Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

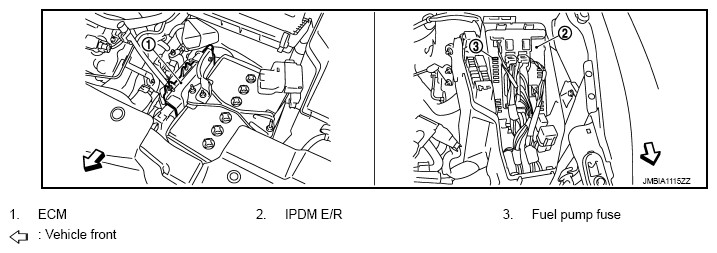

Fig 8: Evaporative Emission System Components Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

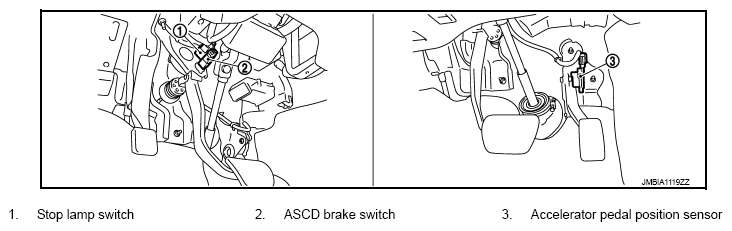

Fig 9: Evaporative Emission System Components Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

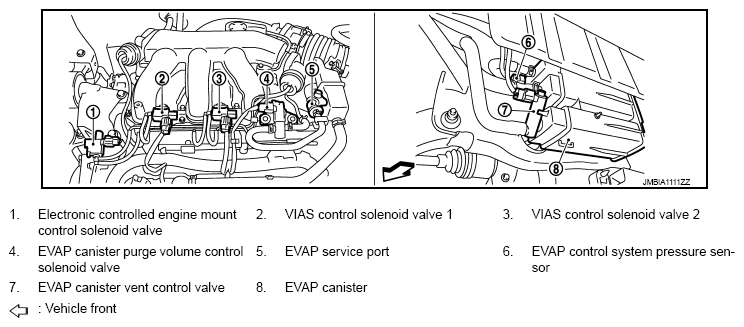

Fig 10: Evaporative Emission System Components Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

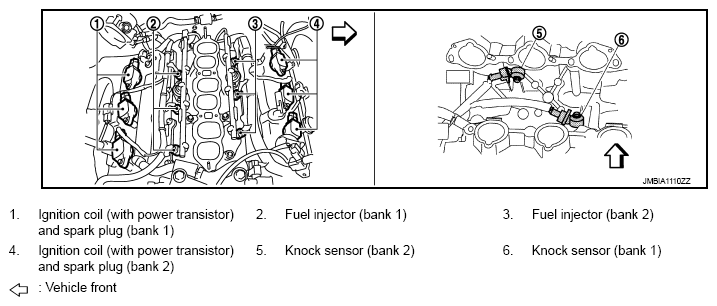

Fig 11: Evaporative Emission System Components Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

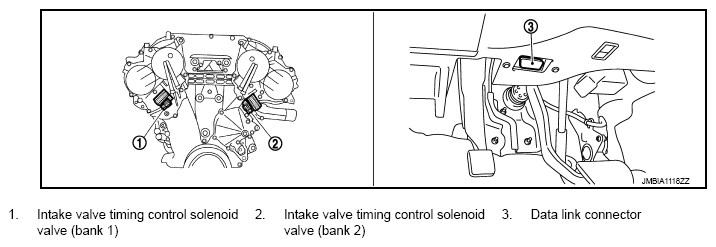

Fig 12: Evaporative Emission System Components Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

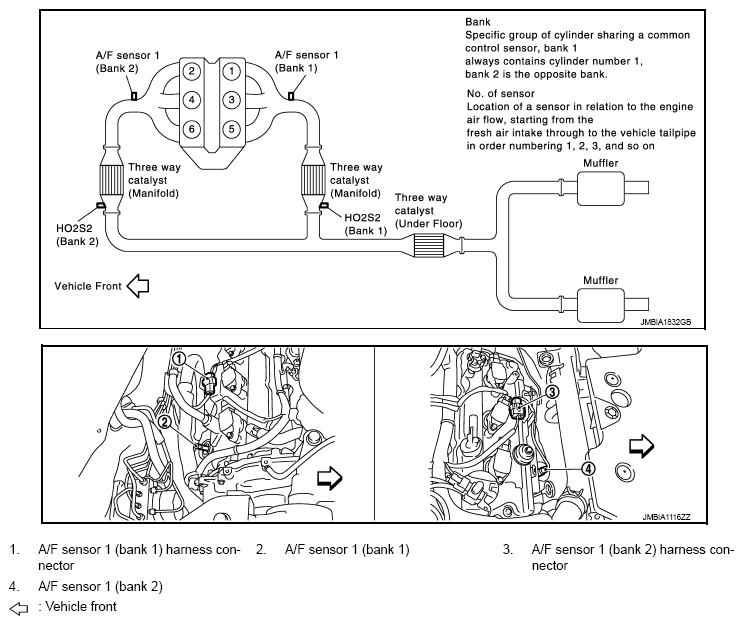

Fig 13: Evaporative Emission System Components Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

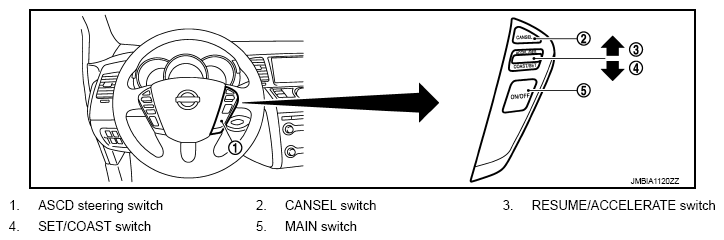

Fig 14: Evaporative Emission System Components Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
