Brake Control System (CROSSCABRIOLET)
>>
Wiring Diagram
>>
Brake Control System
>>
Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector End Views

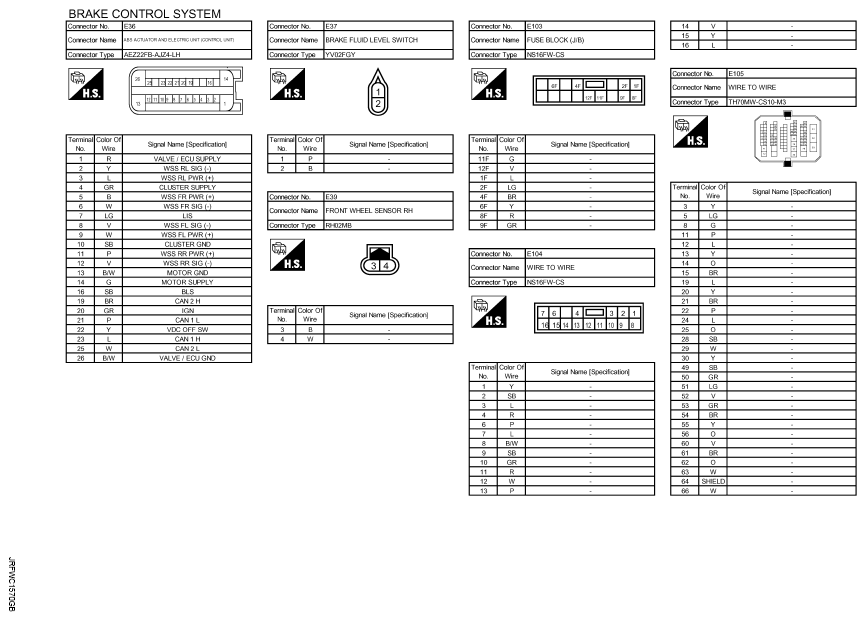

Fig 1: Brake Control System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

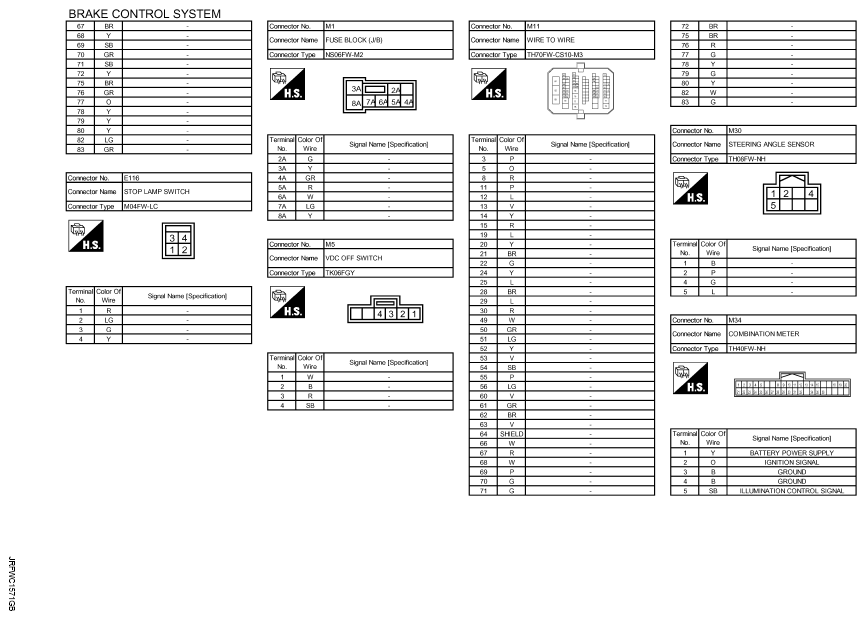

Fig 2: Brake Control System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

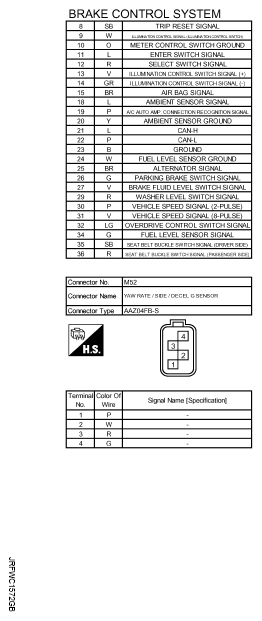

Fig 3: Brake Control System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

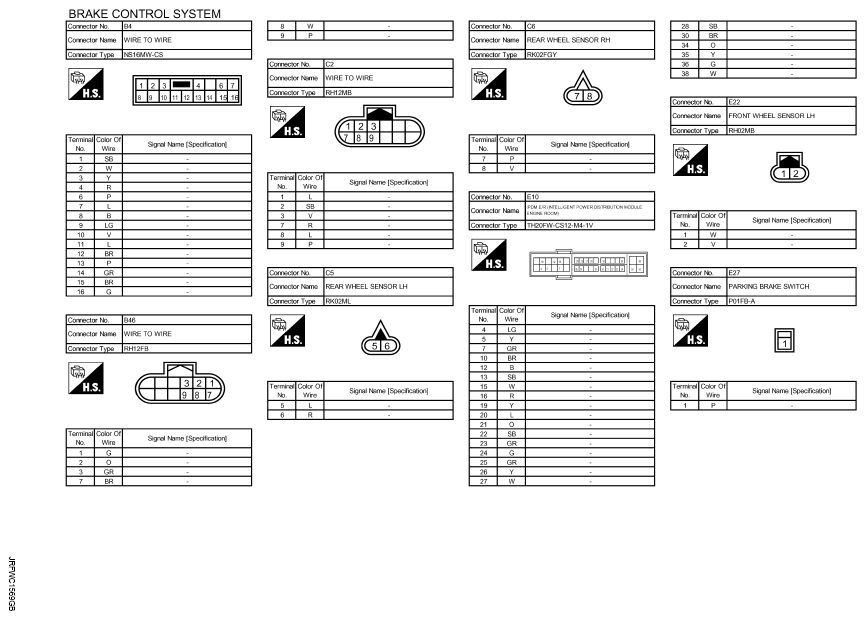

Fig 4: Brake Control System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
