Exploded View

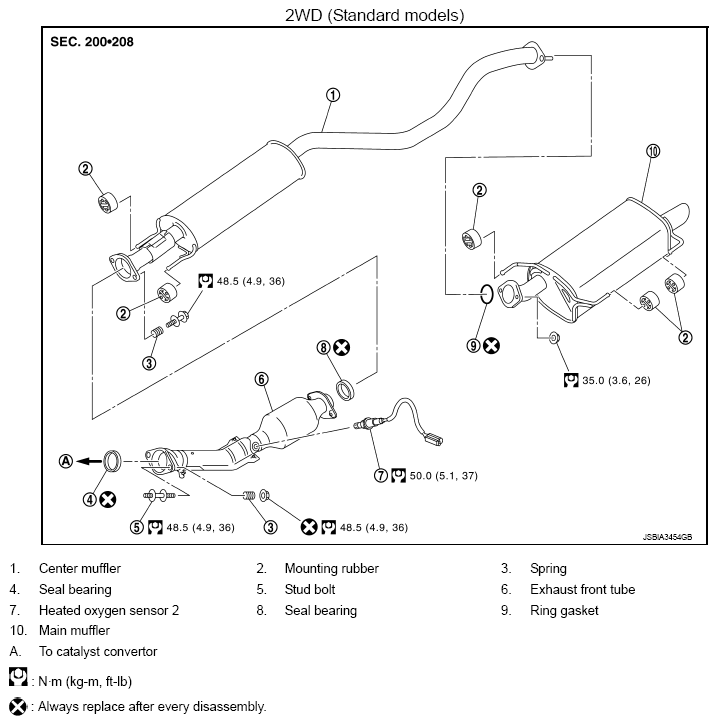

Fig 1: Exploded View Of Exhaust System - 2WD (Standard Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

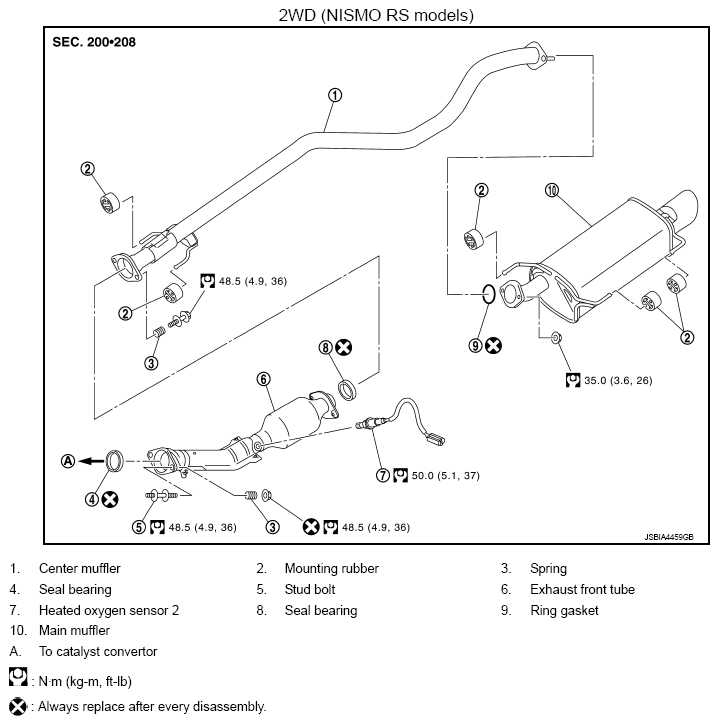

Fig 2: Exploded View Of Exhaust System - 2WD (Nismo RS Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

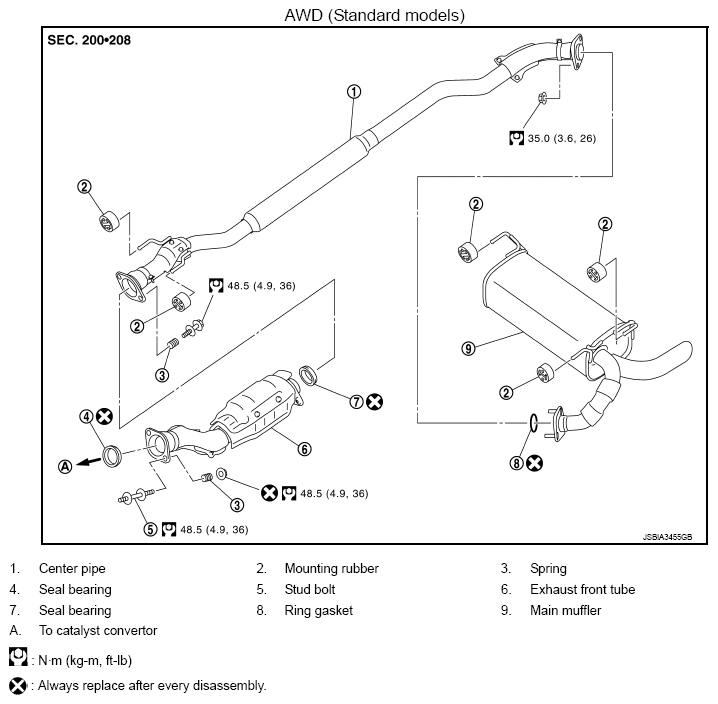

Fig 3: Exploded View Of Exhaust System - AWD (Standard Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

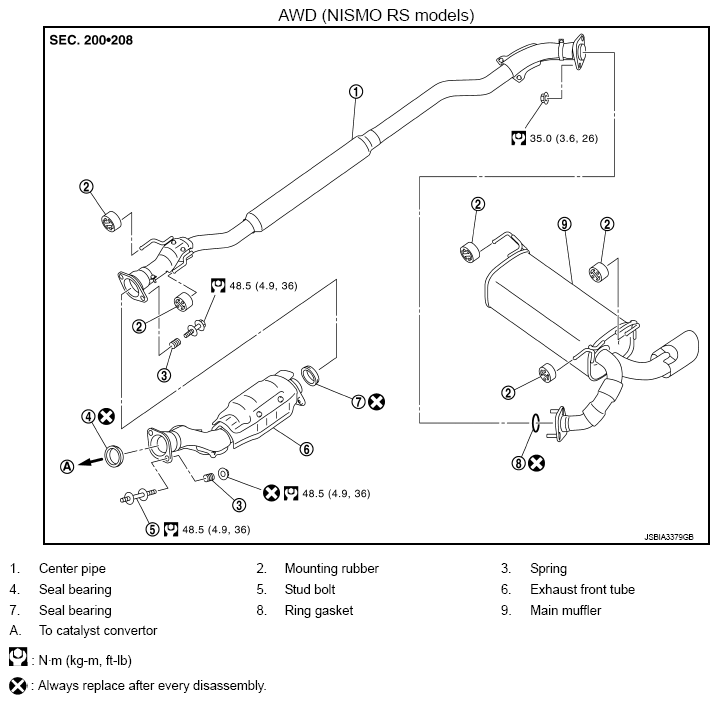

Fig 4: Exploded View Of Exhaust System - AWD (Nismo RS Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
