Removal and Installation: Removal

  1. Remove power window main switch finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove power window main switch (1) from power window main switch finisher (2) using remover tool (A).

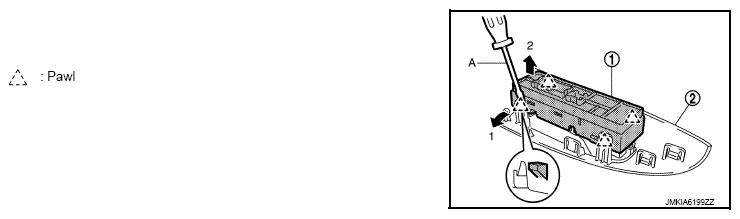

    Fig 1: Removing Power Window Main Switch From Power Window Main Switch Finisher Using Remover Tool
    G09245188Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
