Integrated Control System: Wiring Diagram

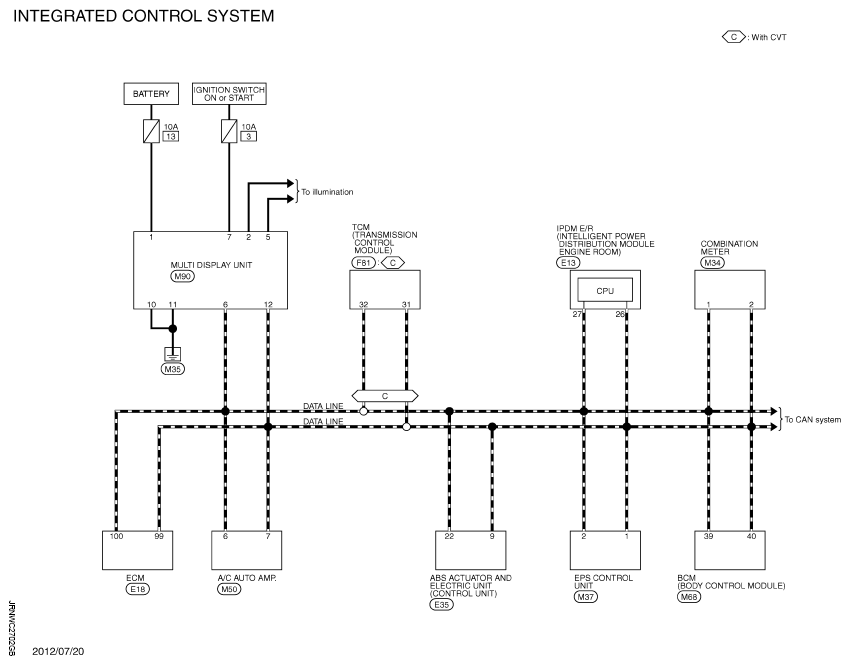

Fig 1: Integrated Control System Wiring Diagram
G09246026Courtesy of NISSAN NORTH AMERICA, INC.
