Disassembly and Assembly: Notes

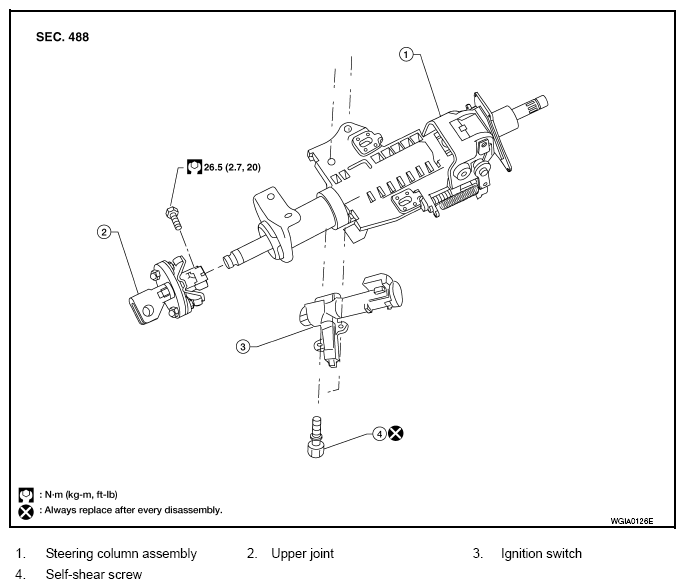

Fig 1: Disassembled View Of Steering Column With Torque Specifications
G09147570Courtesy of NISSAN NORTH AMERICA, INC.
