Exploded View

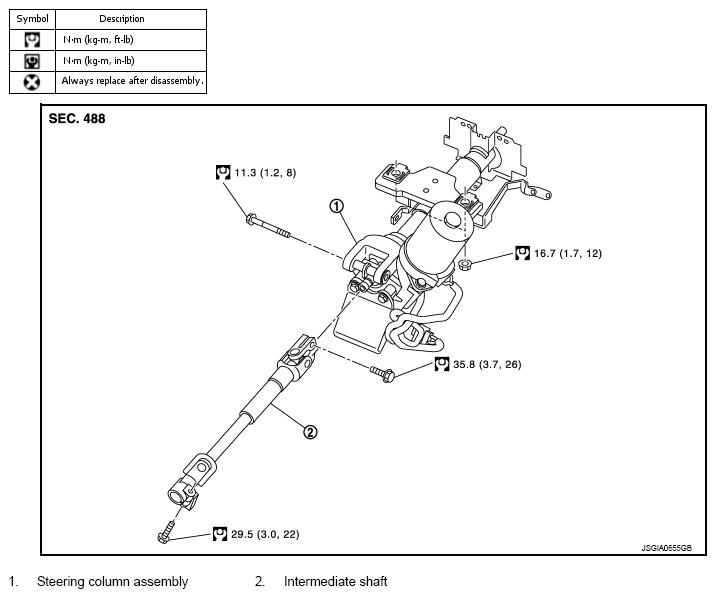

Fig 1: Steering Column Assembly And Intermediate Shaft With Torque Specifications
G09519068Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
