System - Engine Mechanical & Other

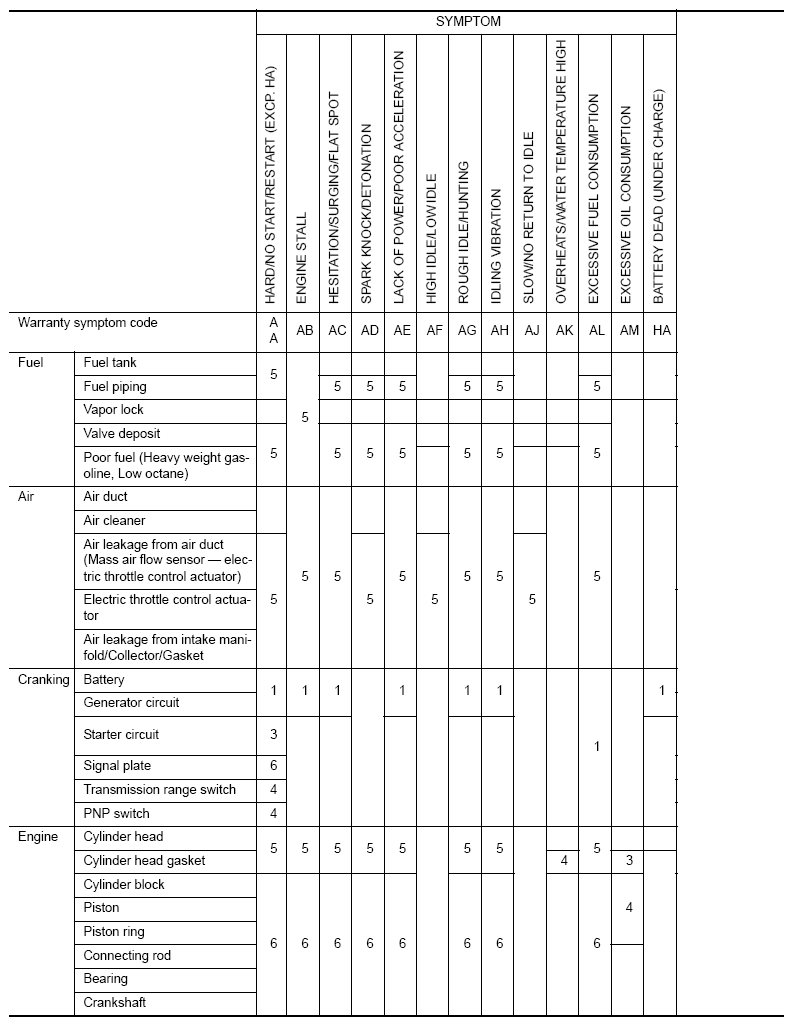

Fig 1: Engine Control System Symptoms Chart - Engine Mechanical & Other (1 Of 2)
G09518452

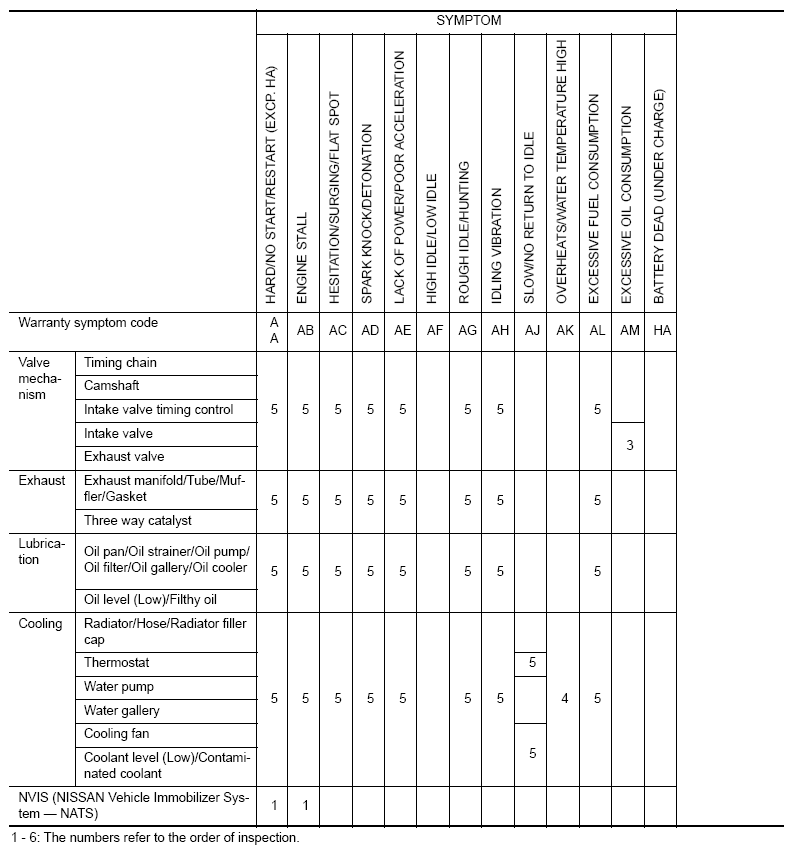

Fig 2: Engine Control System Symptoms Chart - Engine Mechanical & Other (2 Of 2)
G09518453
