Exploded View

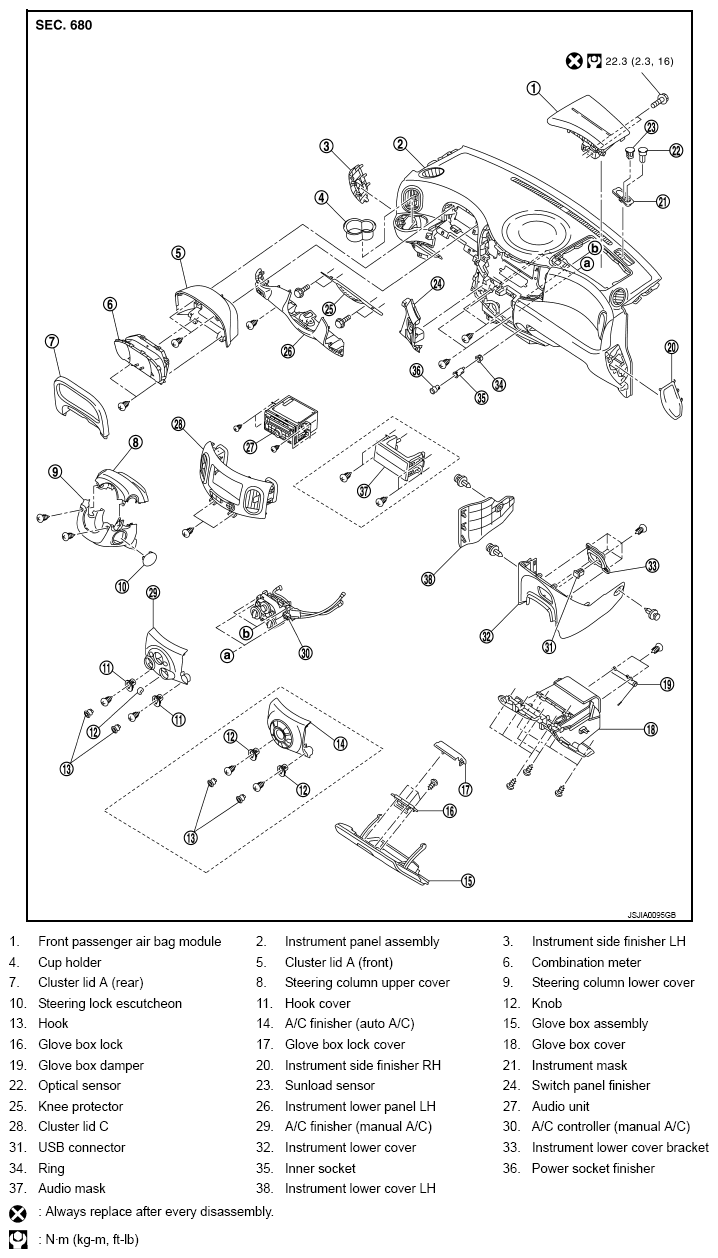

Fig 1: Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
