Connector End Views

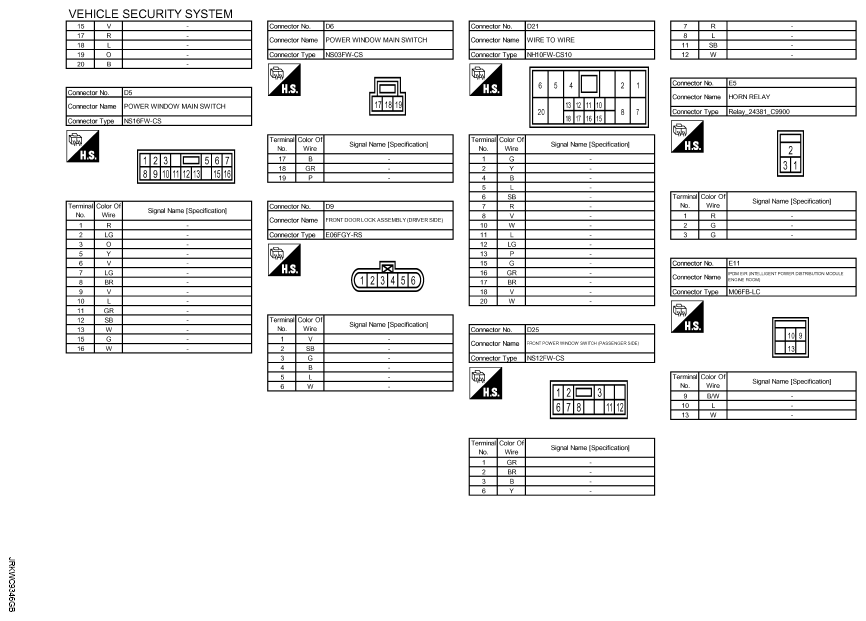

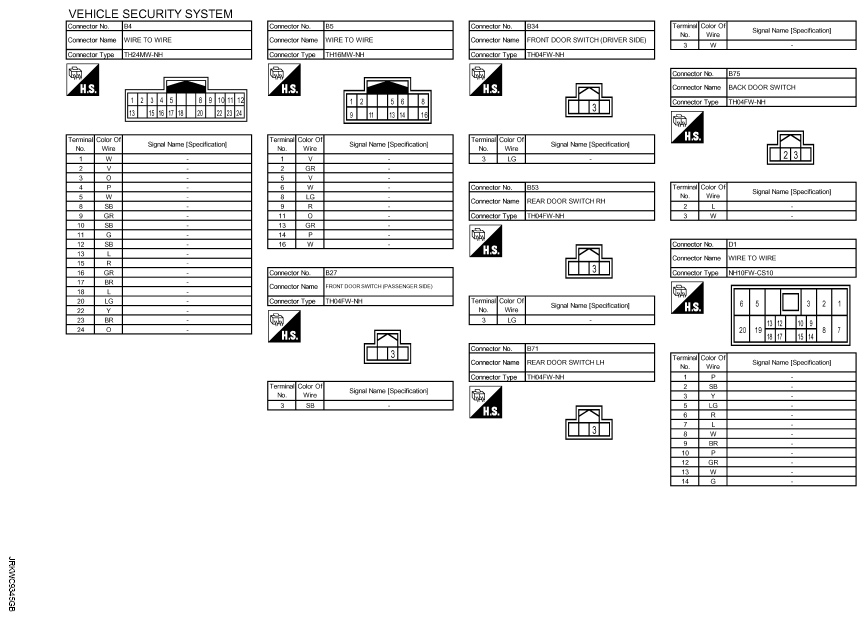

Fig 1: Vehicle Security System Connector End Views (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

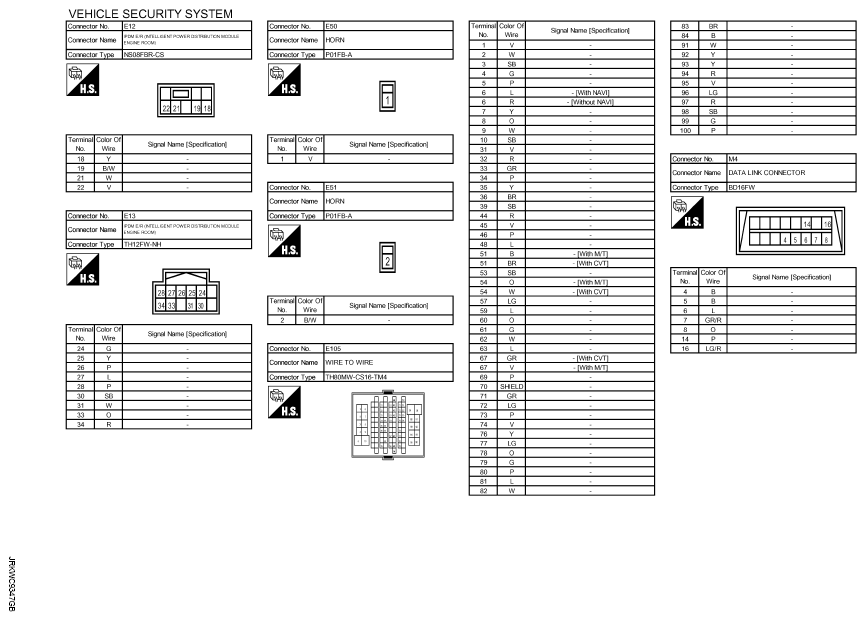

Fig 2: Vehicle Security System Connector End Views (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

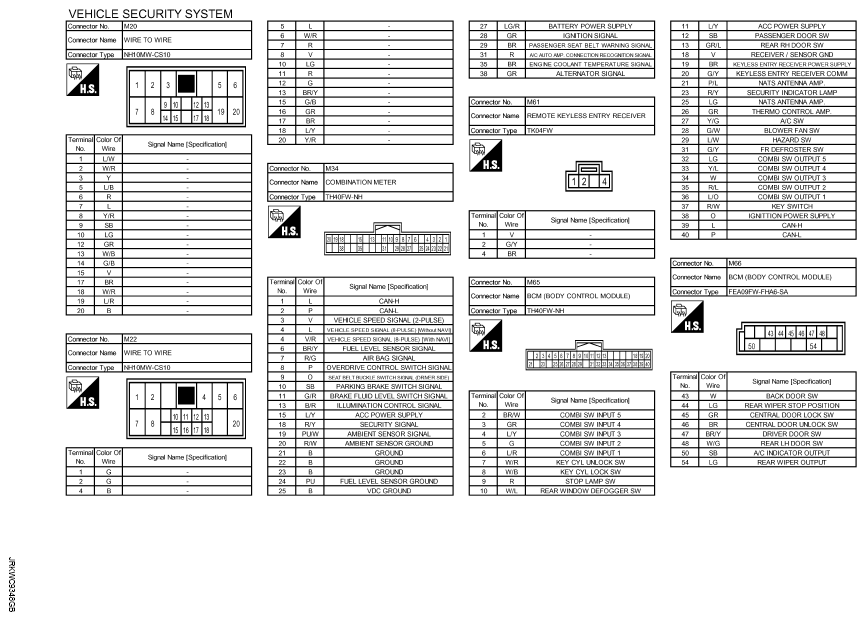

Fig 3: Vehicle Security System Connector End Views (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

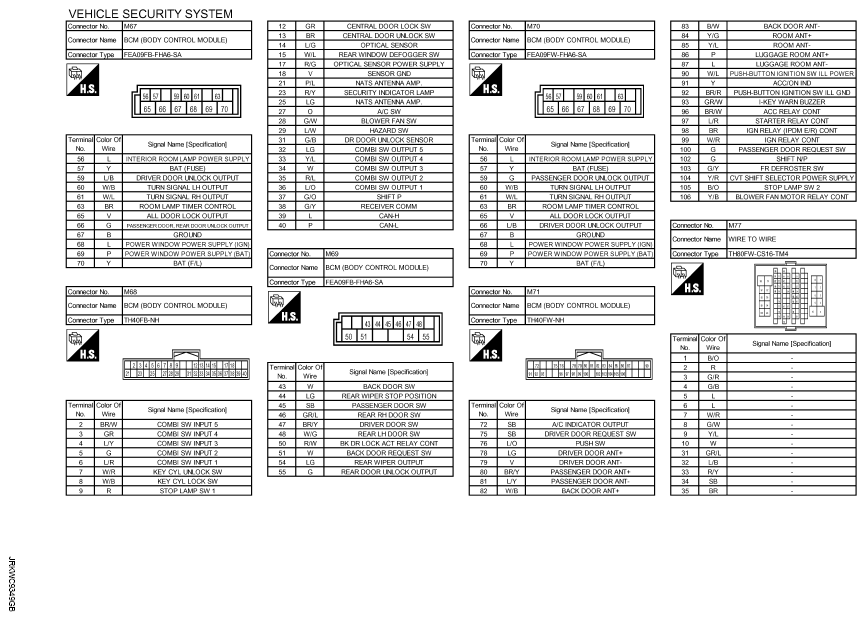

Fig 4: Vehicle Security System Connector End Views (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

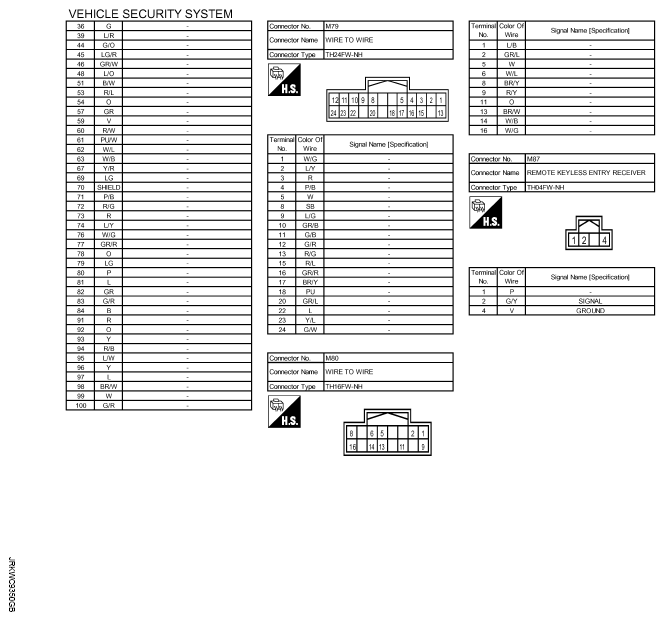

Fig 5: Vehicle Security System Connector End Views (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Vehicle Security System Connector End Views (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
