Connector End Views

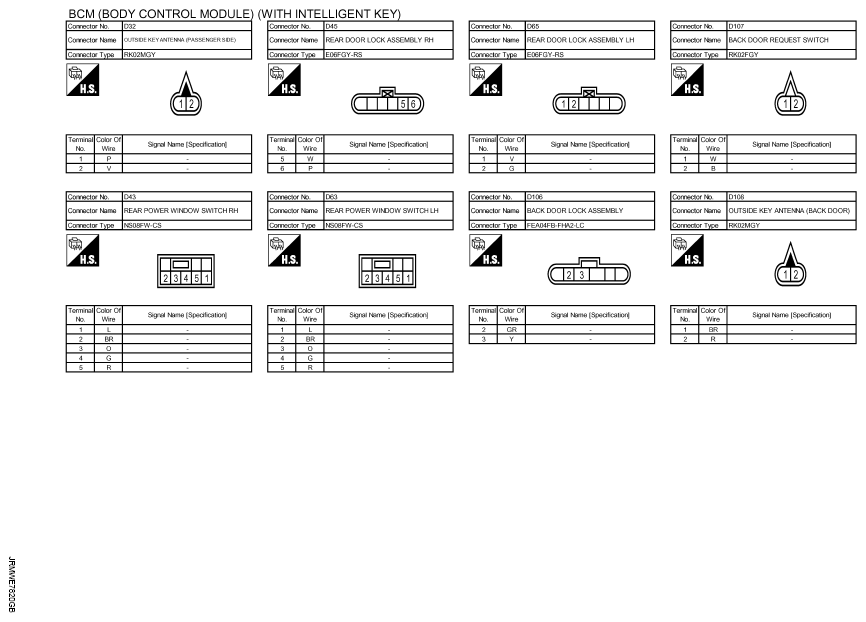

Fig 1: Body Control Module Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

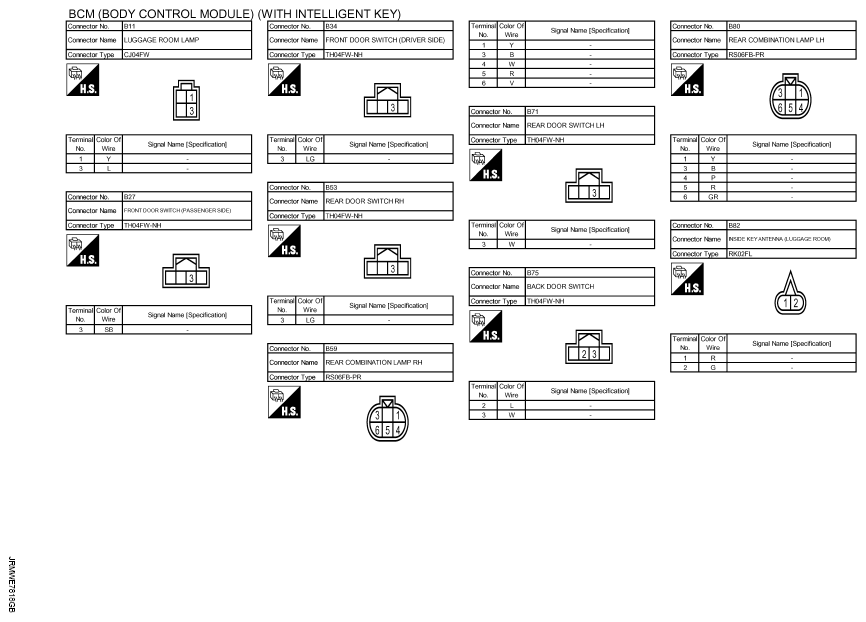

Fig 2: Body Control Module Connector End Views (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

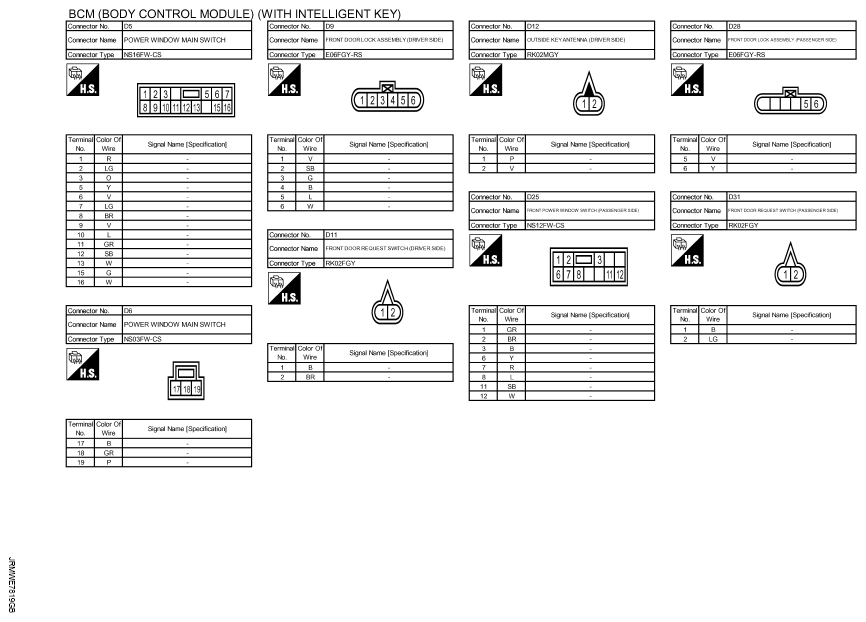

Fig 3: Body Control Module Connector End Views (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

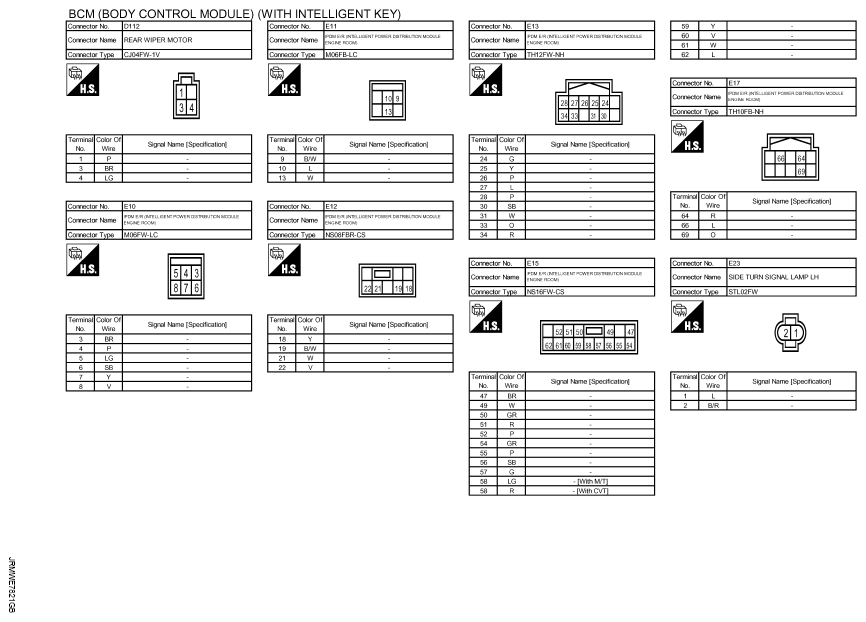

Fig 4: Body Control Module Connector End Views (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

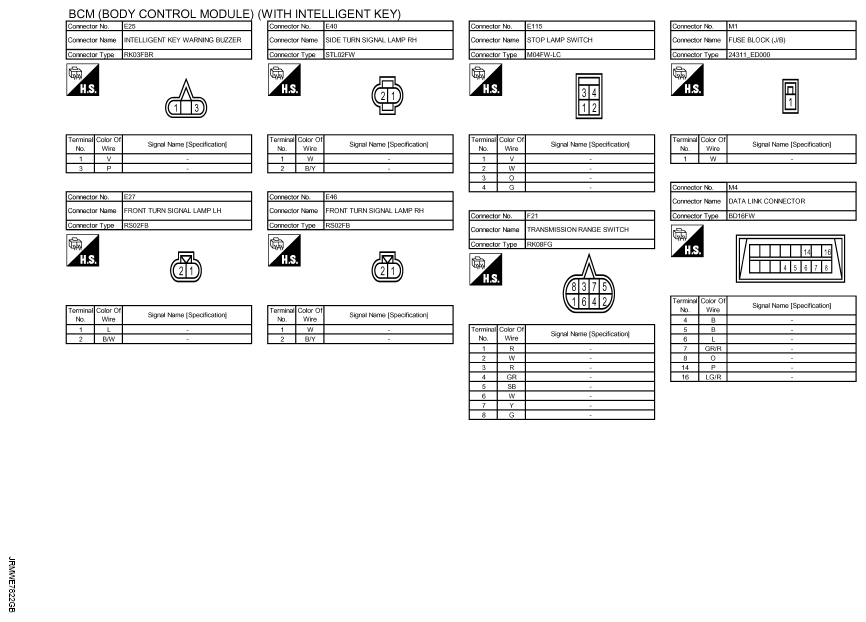

Fig 5: Body Control Module Connector End Views (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

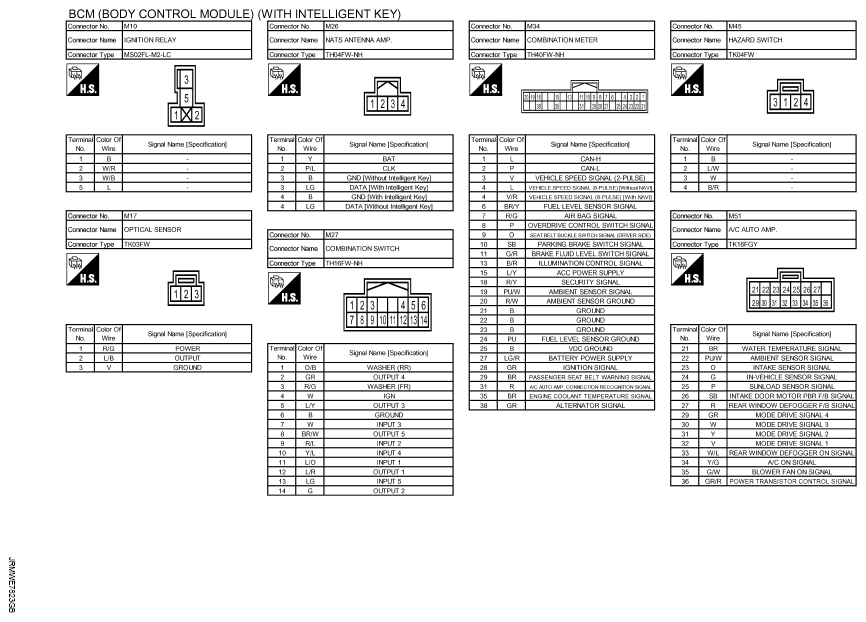

Fig 6: Body Control Module Connector End Views (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Body Control Module Connector End Views (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

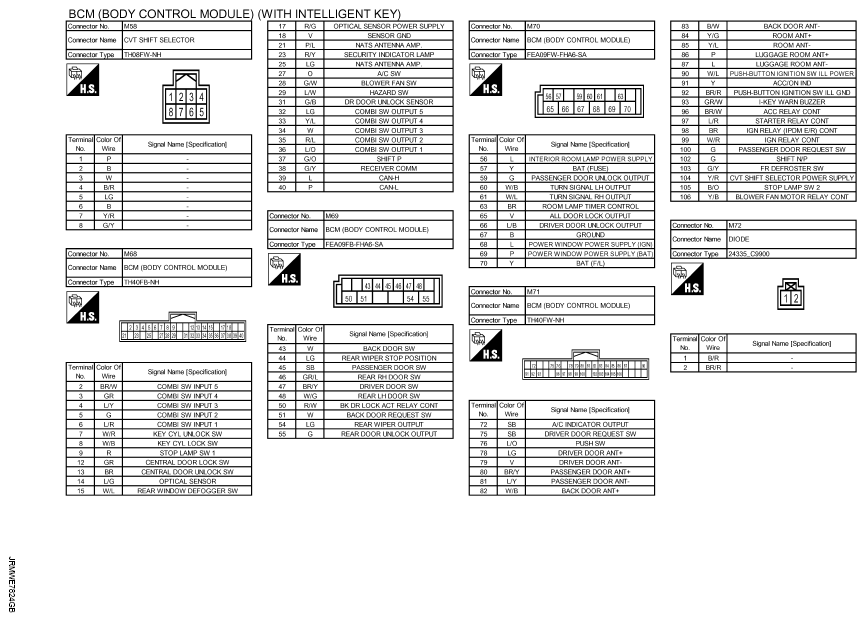

Fig 8: Body Control Module Connector End Views (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
