System Application

BCM can perform the following functions.

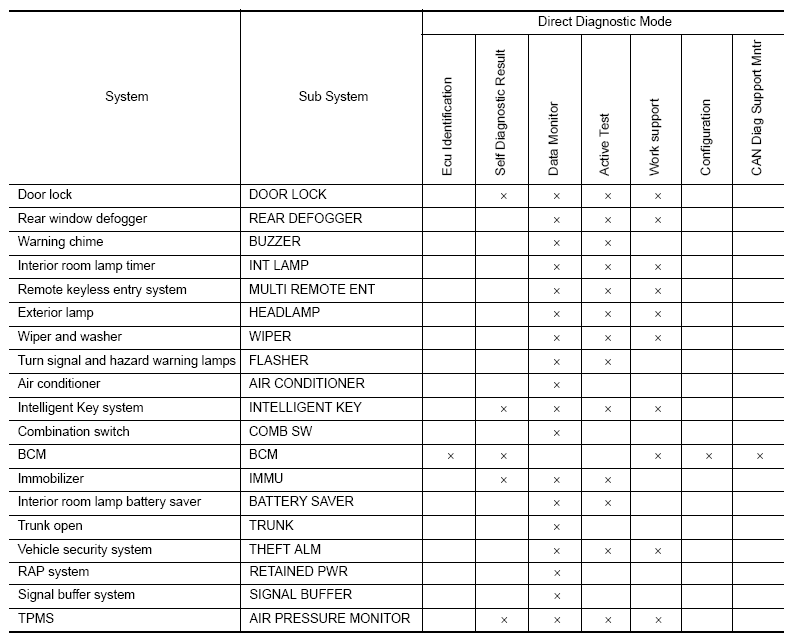

Fig 1: BCM System Application Chart
G09142101Courtesy of NISSAN NORTH AMERICA, INC.
