Component Parts Location

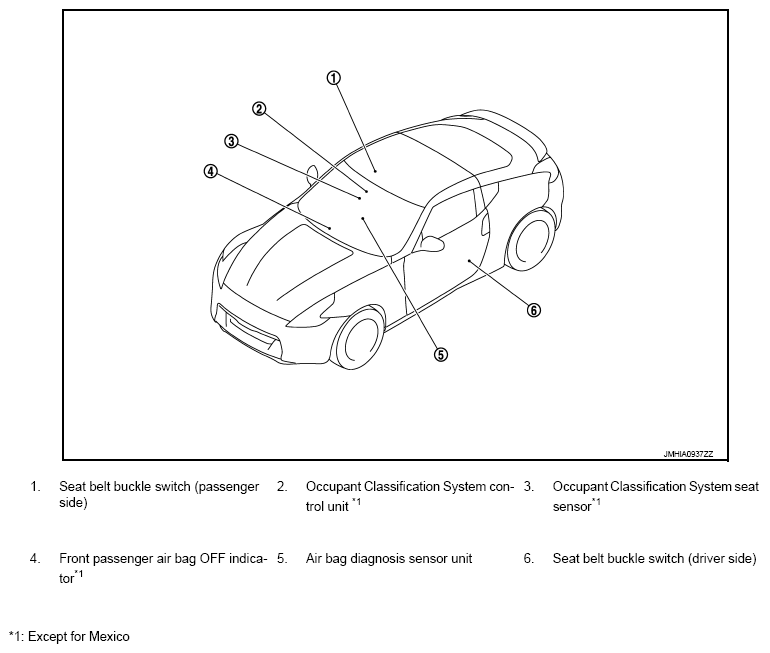

Fig 1: Seat Belt Warning System Components Location
G09508189Courtesy of NISSAN NORTH AMERICA, INC.

*1: Except for Mexico
