Disassembly And Assembly

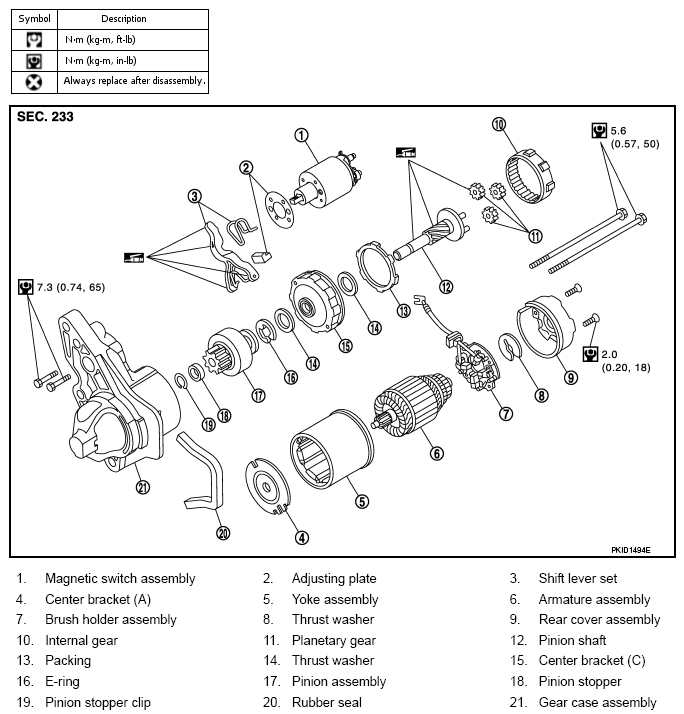

Fig 1: Disassembled View Of Starter Motor
Courtesy of NISSAN NORTH AMERICA, INC.
