Final Drive

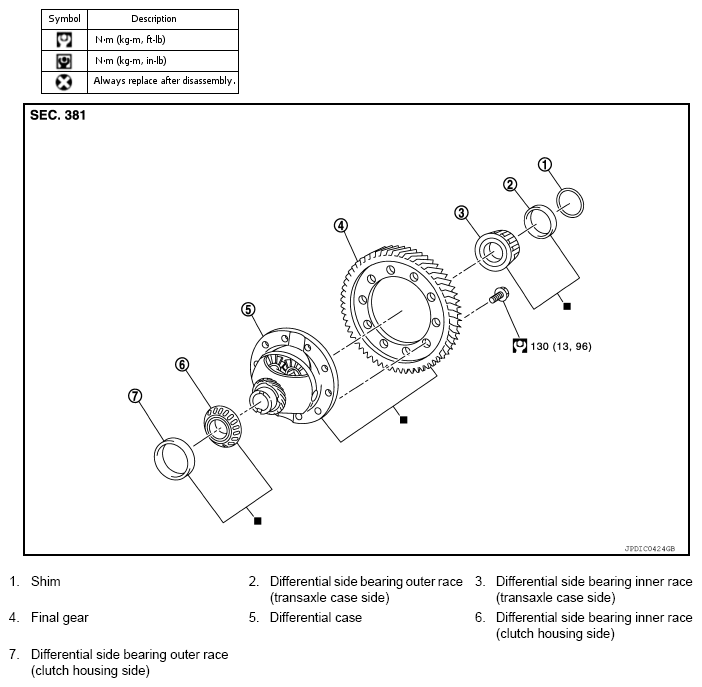

Fig 1: Exploded View Of Transaxle Assembly (Final Drive) With Torque Specifications
G08989553Courtesy of NISSAN NORTH AMERICA, INC.
