System Description
>>
Structure And Operation
>>
Sectional View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Sectional View

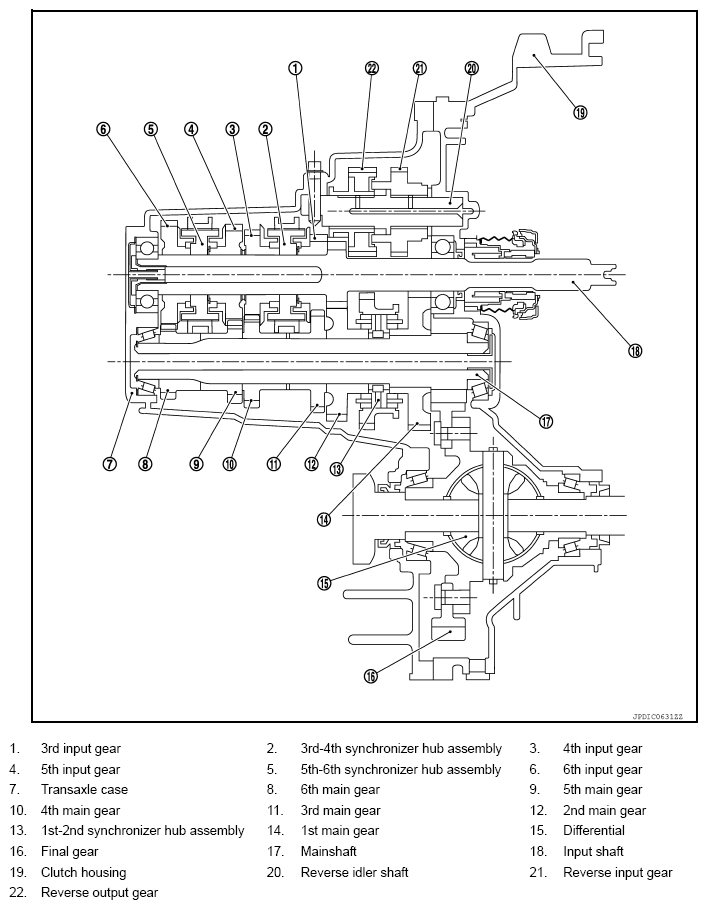

Fig 1: Sectional View Of Transmission Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
