Component Inspection

  1. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR
    1. Turn ignition switch OFF.
    2. Disconnect fuel level sensor unit and fuel pump harness connector.
    3. Remove fuel level sensor unit. Refer to "REMOVAL AND INSTALLATION ".
    4. Check resistance between fuel level sensor unit and fuel pump terminals by heating with hot water as shown in the figure below.
      Fuel level sensor unit and fuel pump Condition Resistance (kΩ)
      + -
      Terminal
      4 5 Temperature [°C (°F)] 20 (68) 2.3 - 2.7
      50 (122) 0.79 - 0.90

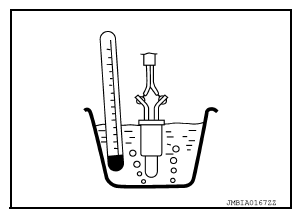

      Fig 1: Checking Fuel Tank Temperature Sensor
      G08989313Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace fuel level sensor unit and fuel pump. Refer to "REMOVAL AND INSTALLATION ".
