Connector End View

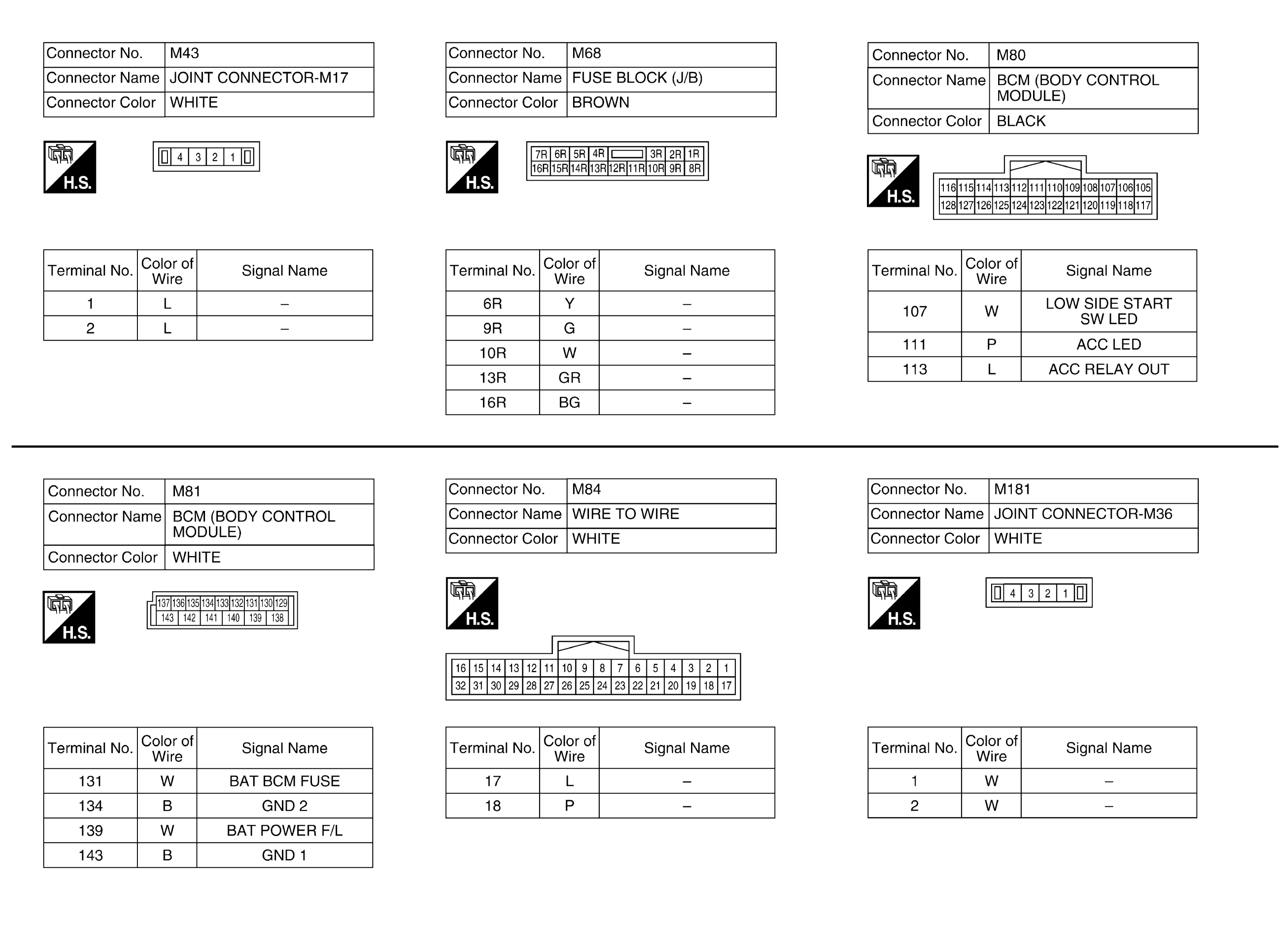

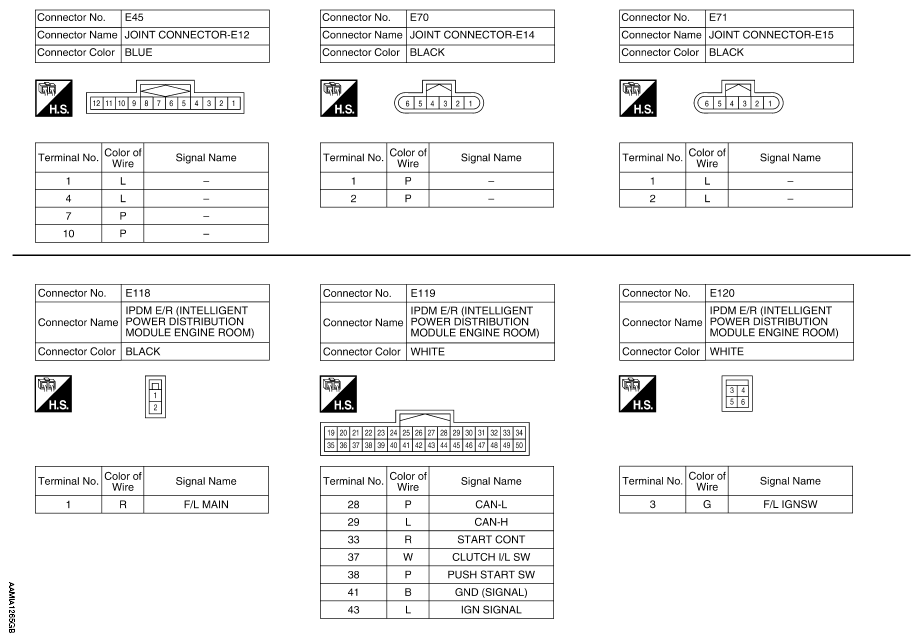

Fig 1: Power Distribution System Connector End View (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

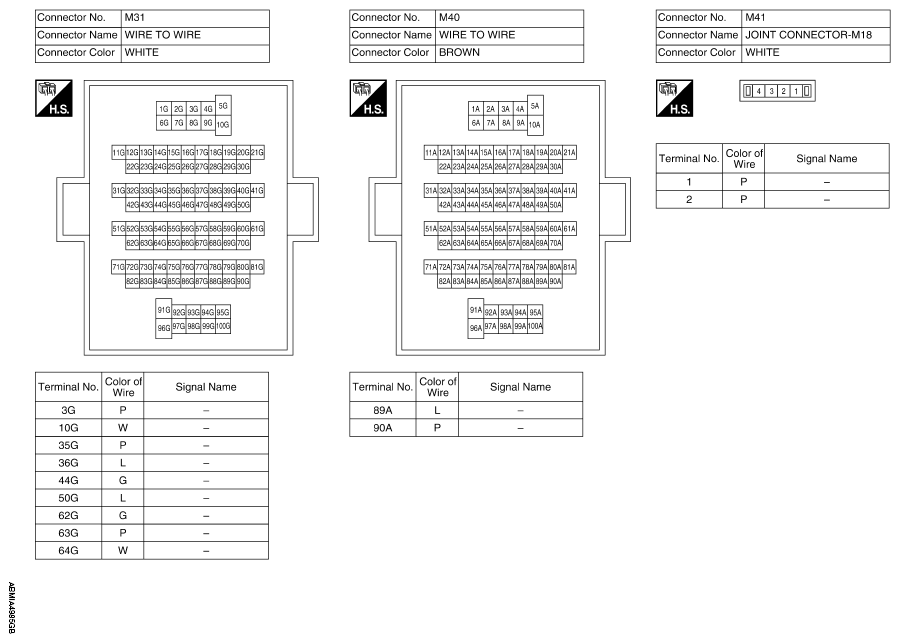

Fig 2: Power Distribution SystemConnector End View (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

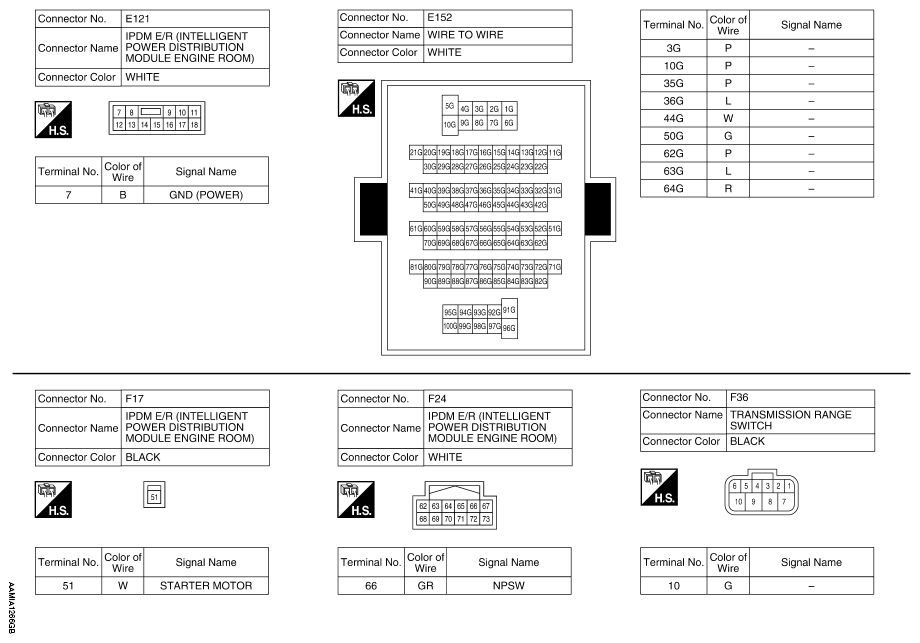

Fig 3: Power Distribution System Connector End View (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

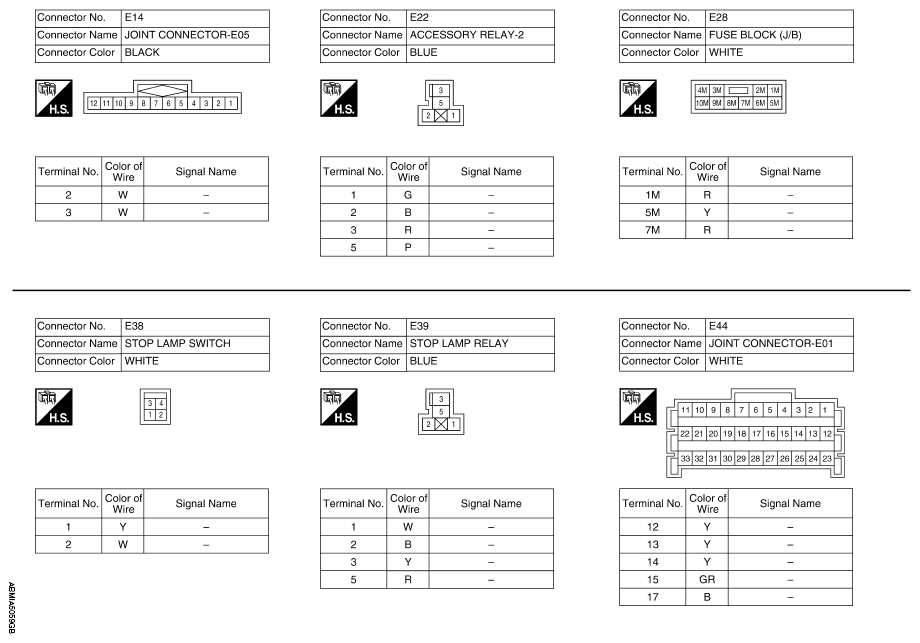

Fig 4: Power Distribution System Connector End View (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

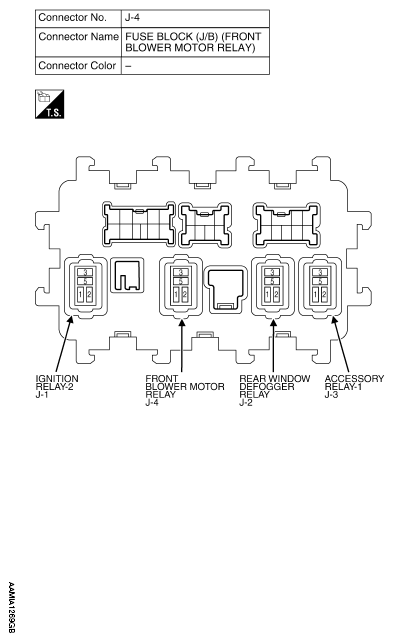

Fig 5: Power Distribution System Connector End View (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

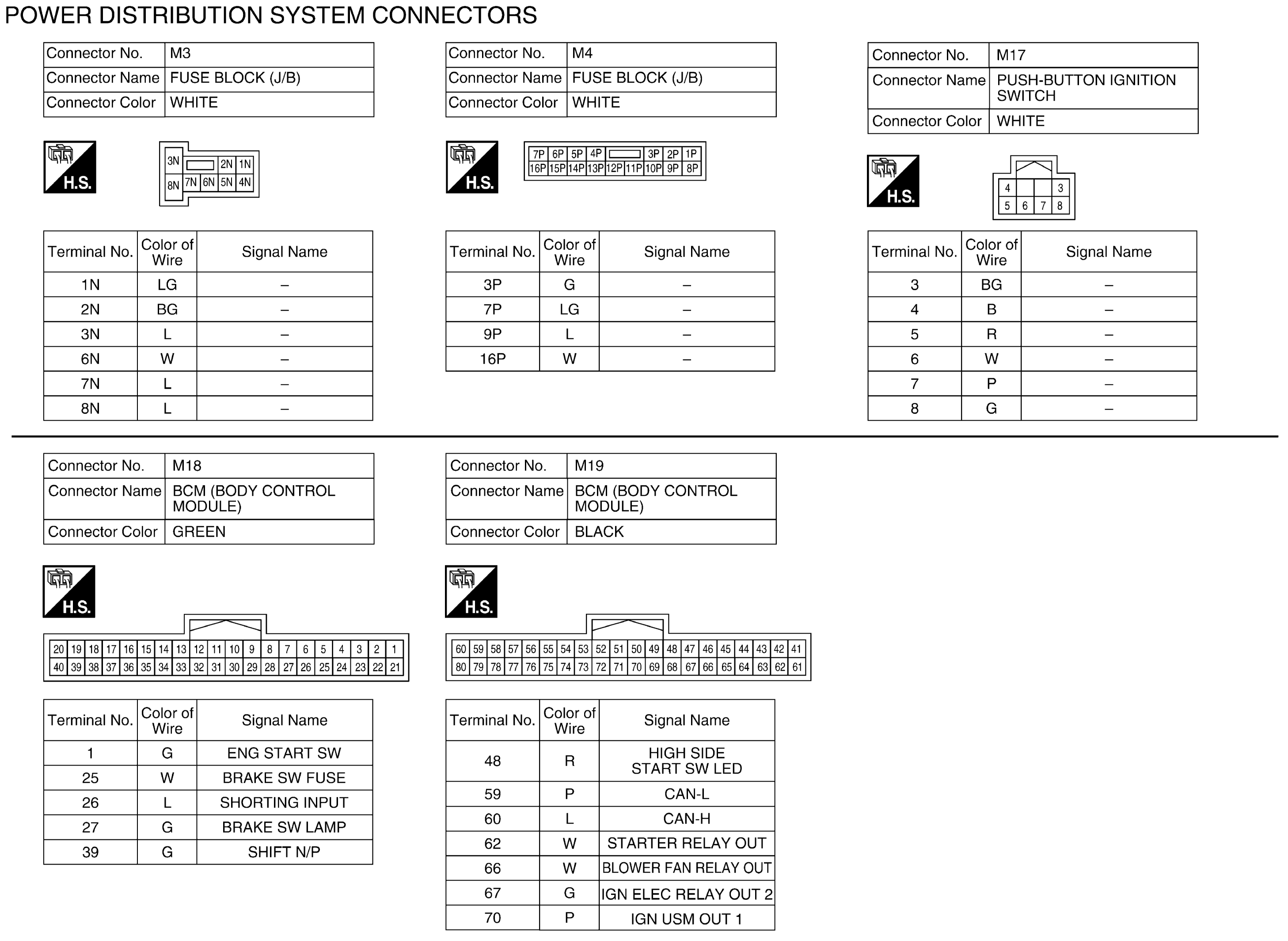

Fig 6: Power Distribution System Connector End View (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

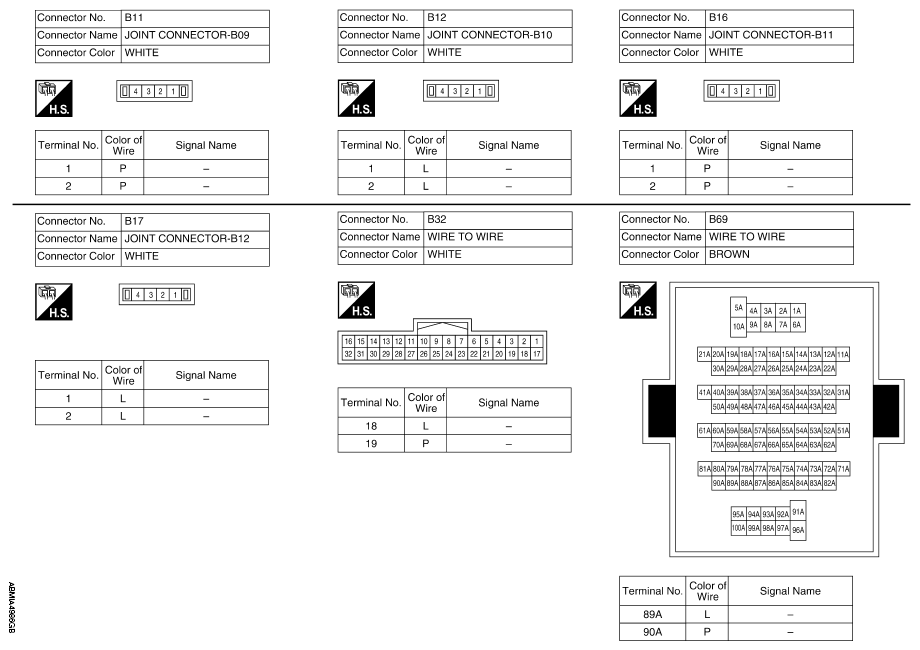

Fig 7: Power Distribution System Connector End View (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

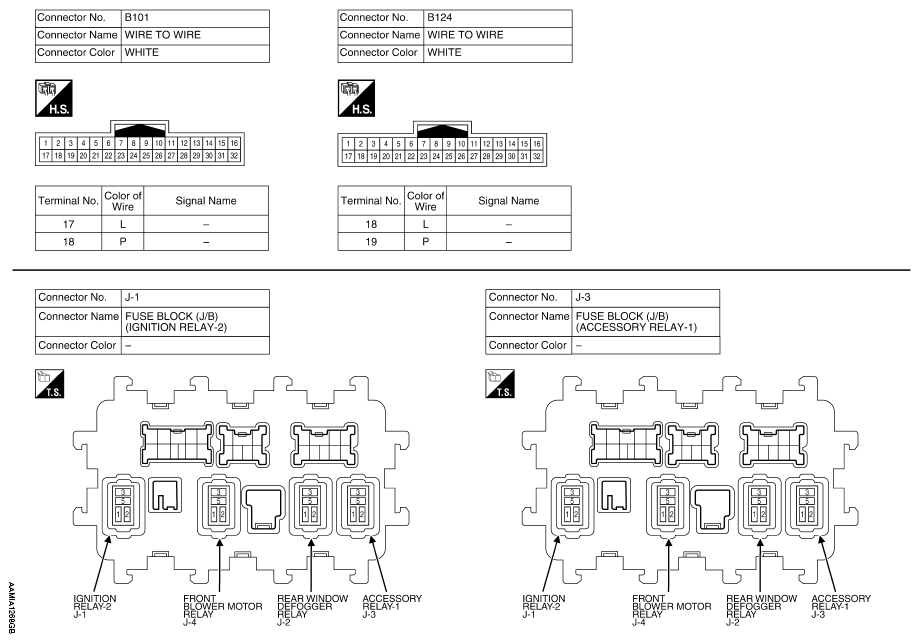

Fig 8: Power Distribution System Connector End View (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Power Distribution System Connector End View (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
