Pathfinder SL, FWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
System
>>
Abs Function
>>
ABS FUNCTION: System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
ABS FUNCTION: System Diagram

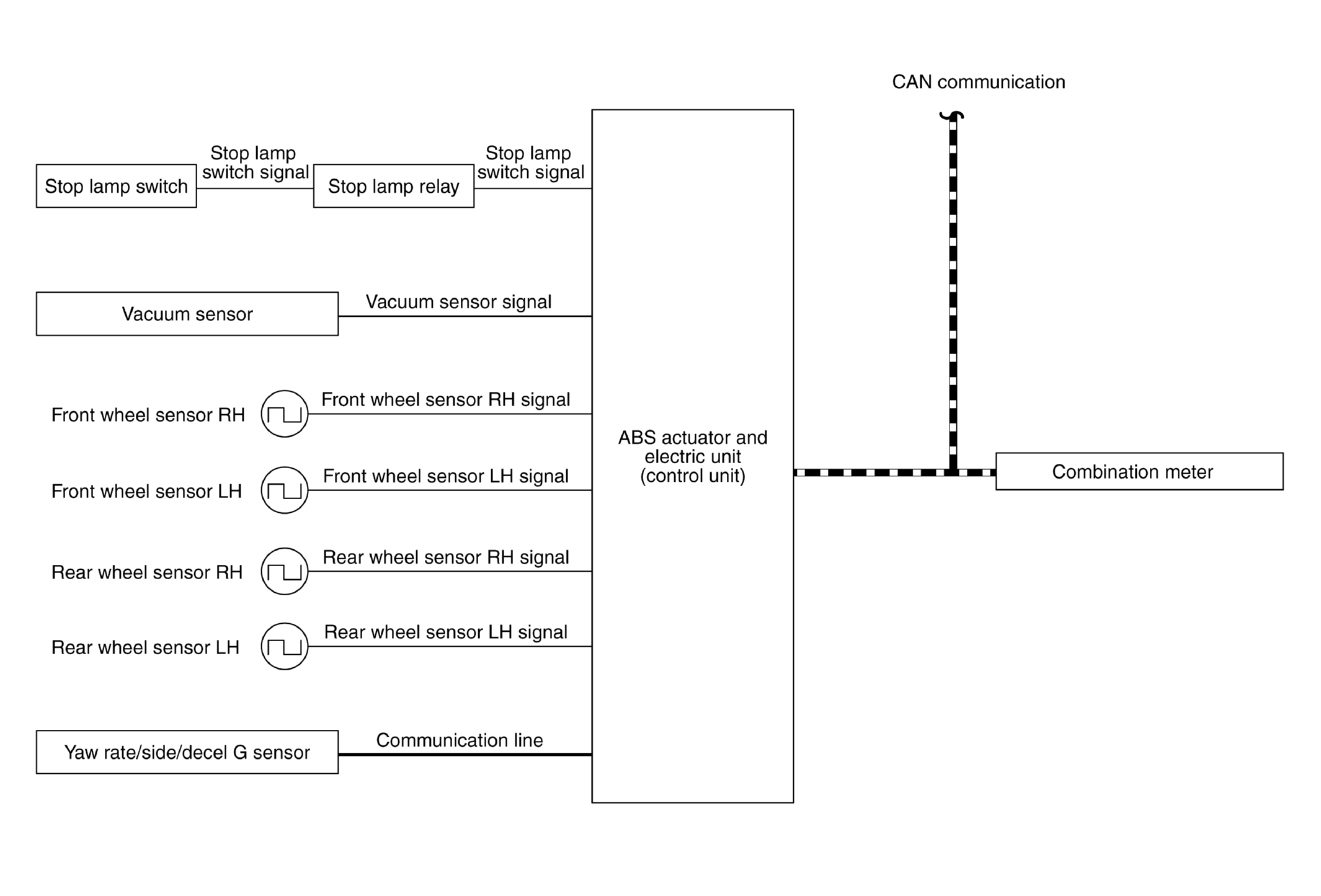

Fig 1: ABS Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
