Component Parts Location: AWD

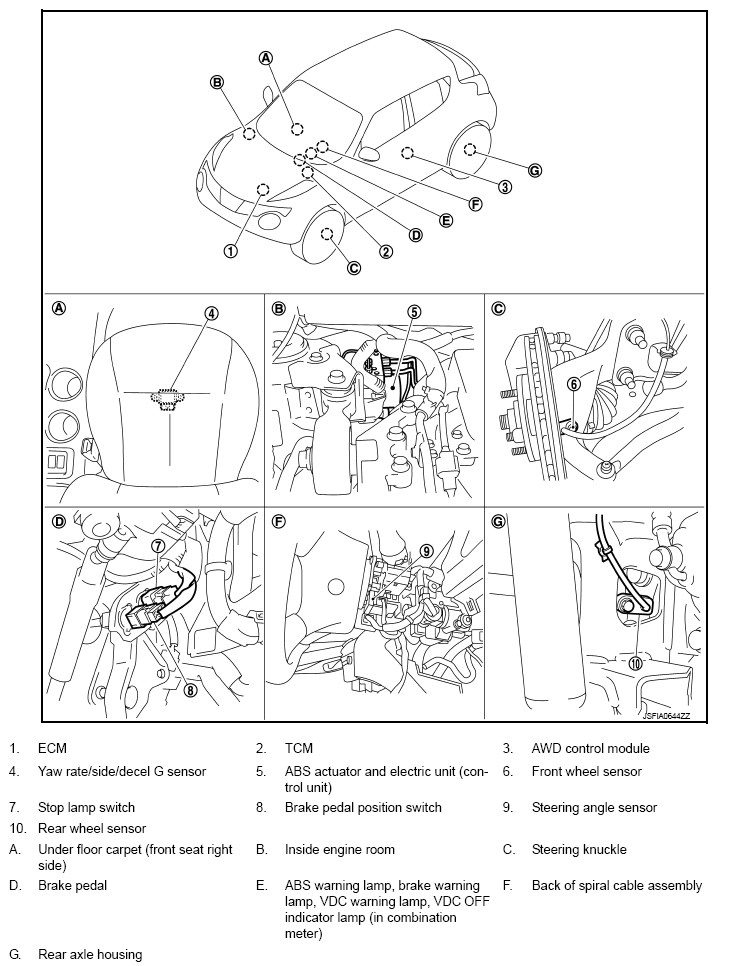

Fig 1: Identifying Brake Control System Components Location (AWD)
G08707024Courtesy of NISSAN NORTH AMERICA, INC.
