Engine Control System - Introduction (Qr25DE) (Sedan)
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Workflow
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

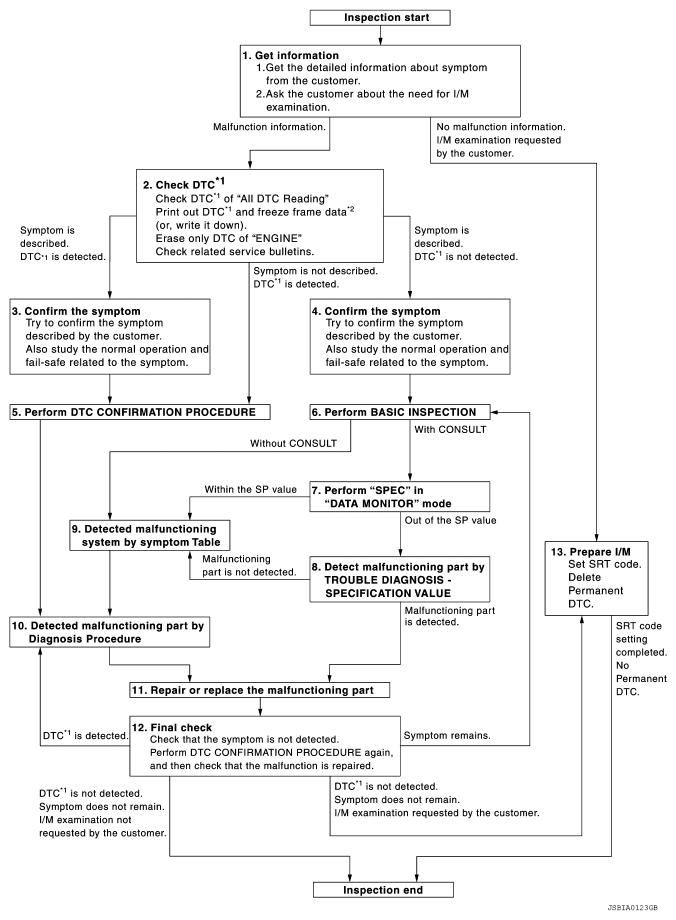

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
