Exploded View: Disassembly

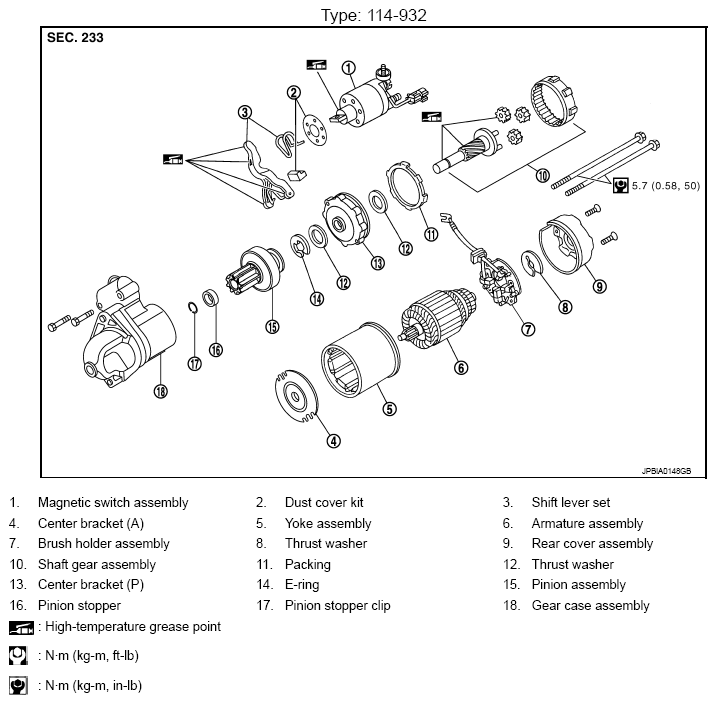

Fig 1: Starter Motor Replacement Components With Torque Specifications (Type 114-932)
G08677481Courtesy of NISSAN NORTH AMERICA, INC.
