Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.

Refer to "GROUND INSPECTION ".

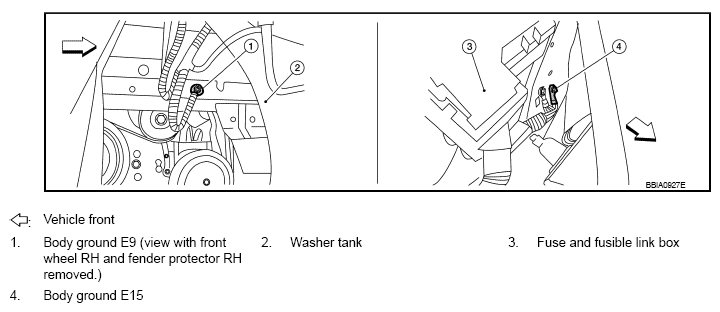

Fig 1: Identifying Body Ground (E9 And E15) And Washer Tank With Fuse And Fusible Link Box

Courtesy of NISSAN NORTH AMERICA, INC.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace mass air flow sensor (with intake air temperature sensor). Refer to , "REMOVAL AND INSTALLATION ".

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

Refer to "WIRING DIAGRAM ".

INSPECTION END
