Exhaust System: Component

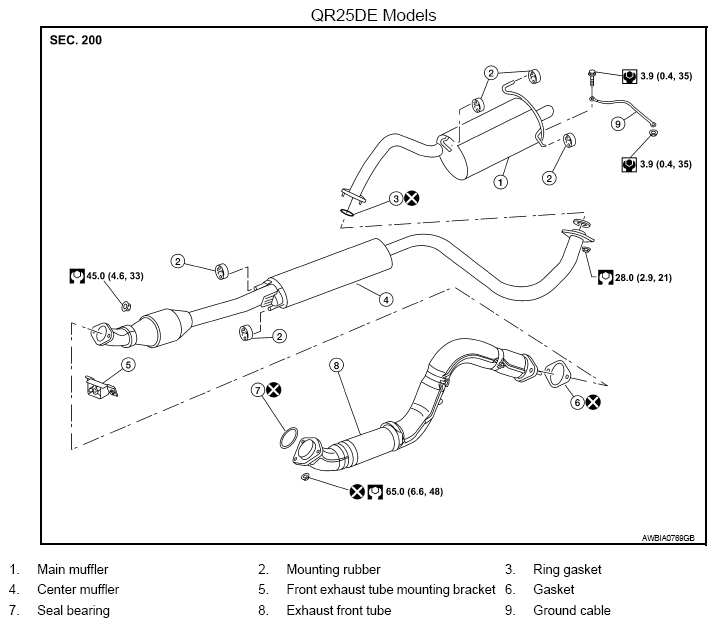

Fig 1: Exhaust System Components Location (QR25DE Models) With Torque Specifications
G08179770Courtesy of NISSAN NORTH AMERICA, INC.
