Disassembly and Assembly: Notes

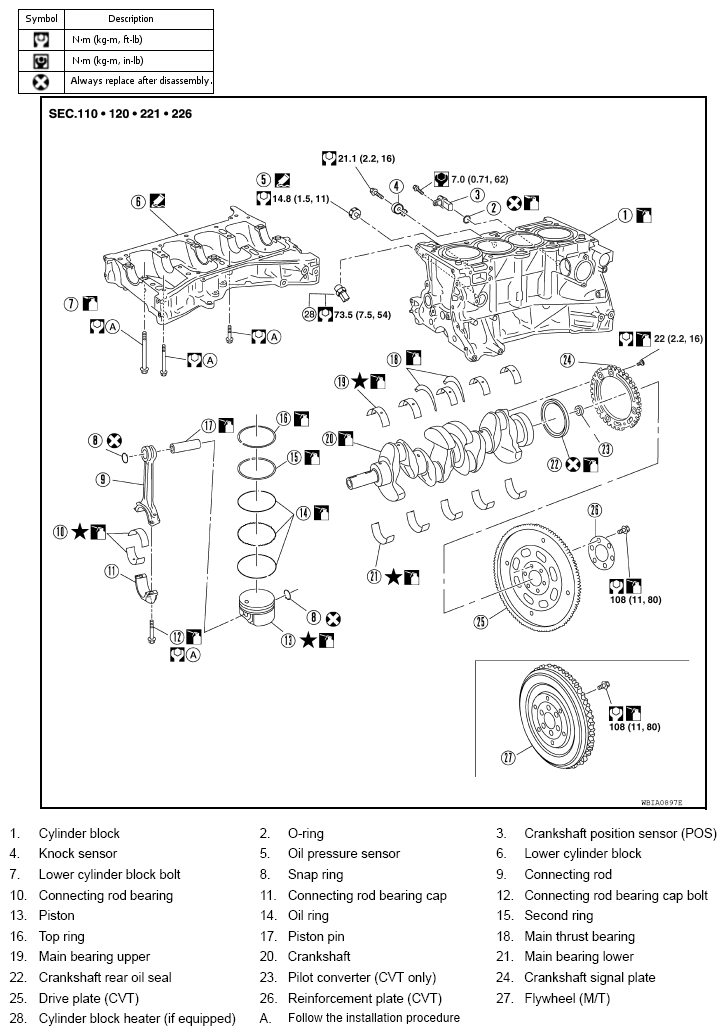

Fig 1: Disassembled View Of Cylinder Block With Torque Specifications
G08503131Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
