Removal and Installation MR20DE: Notes

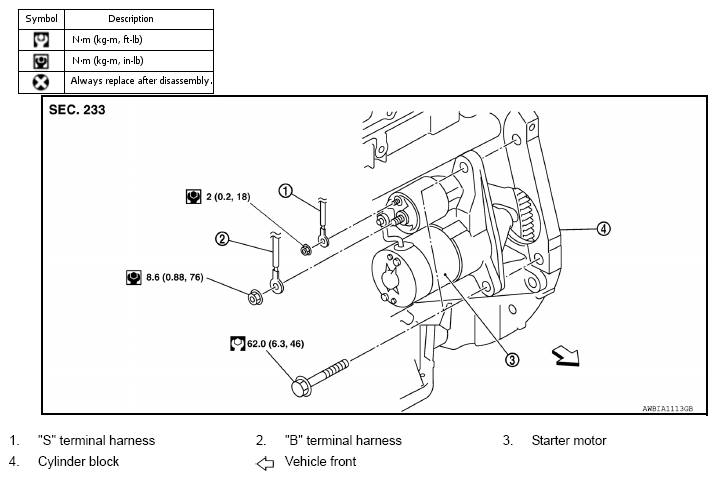

Fig 1: Exploded View Of Starter Motor With Torque Specification
G08503270Courtesy of NISSAN NORTH AMERICA, INC.
