Removal and Installation: Component

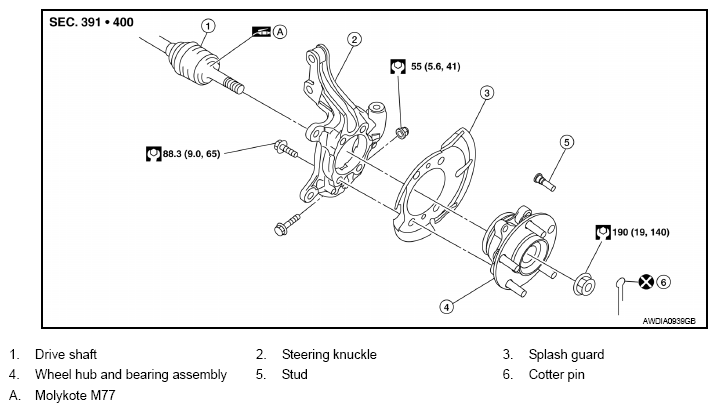

Fig 1: Exploded View Of Wheel Hub Assembly With Torque Specifications
G08180181Courtesy of NISSAN NORTH AMERICA, INC.
