Wiring Diagram - WINDOW -

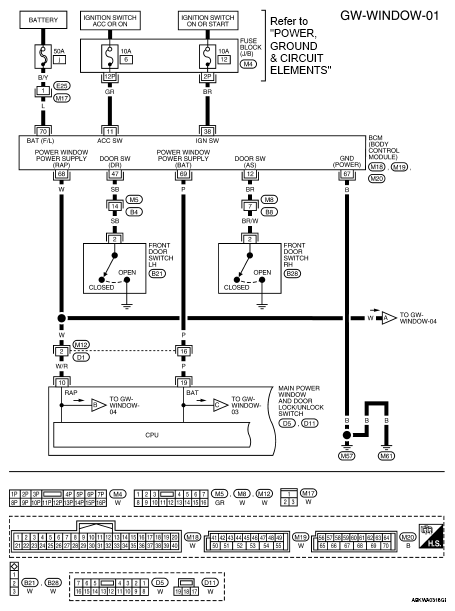

Fig 1: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-01)
G05922820Courtesy of NISSAN NORTH AMERICA, INC.

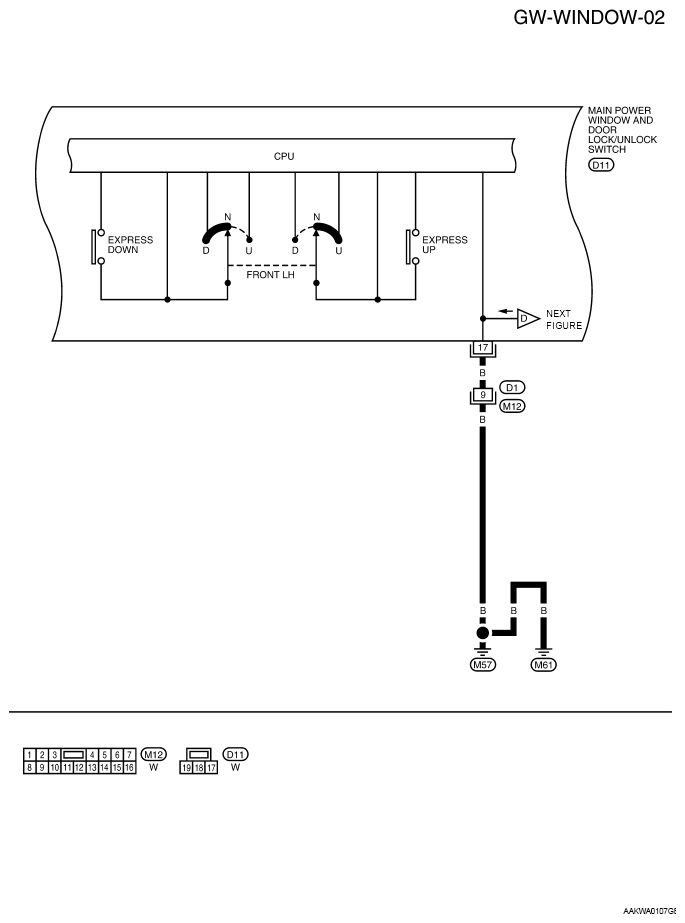

Fig 2: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-02)
G05922821Courtesy of NISSAN NORTH AMERICA, INC.

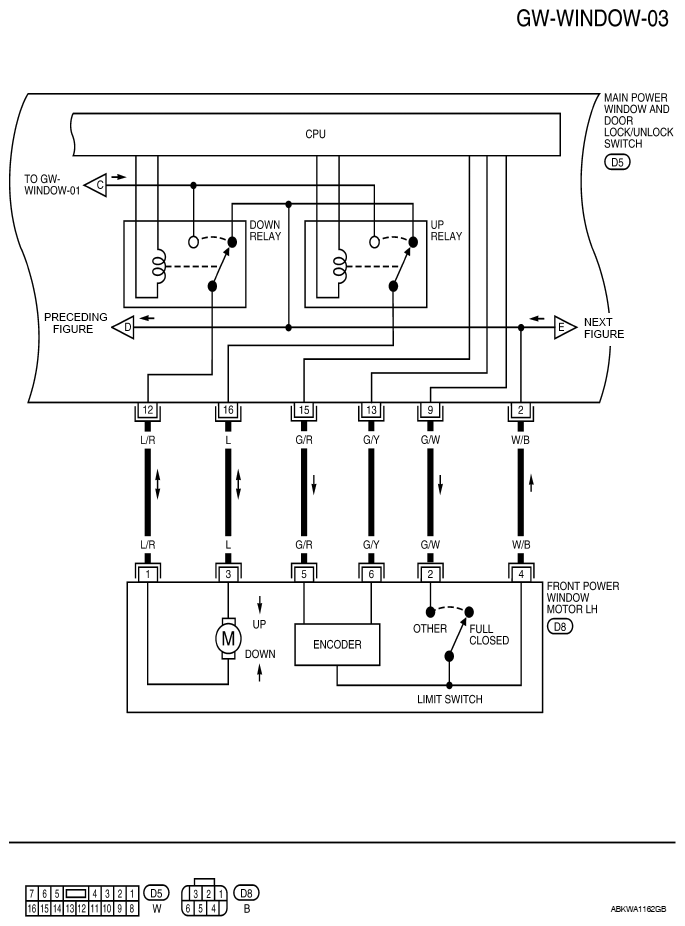

Fig 3: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-03)
G07142751Courtesy of NISSAN NORTH AMERICA, INC.

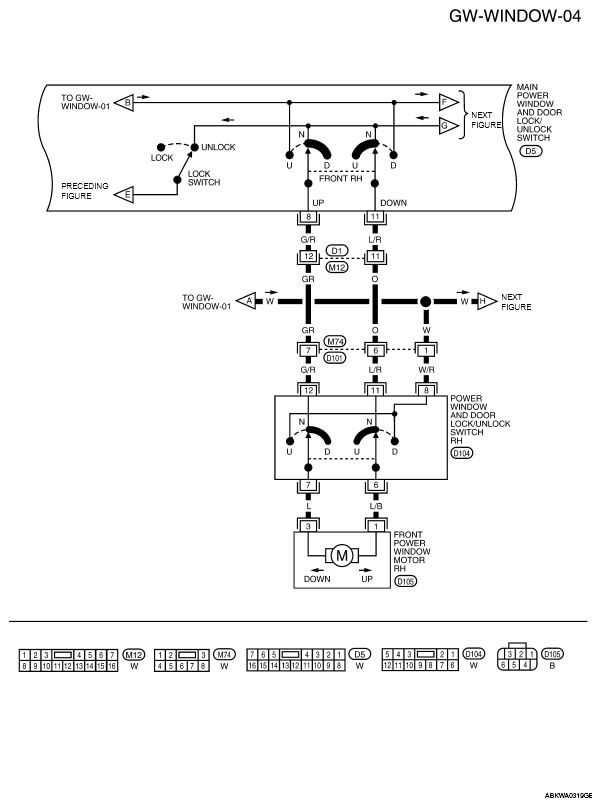

Fig 4: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-04)
G05922823Courtesy of NISSAN NORTH AMERICA, INC.

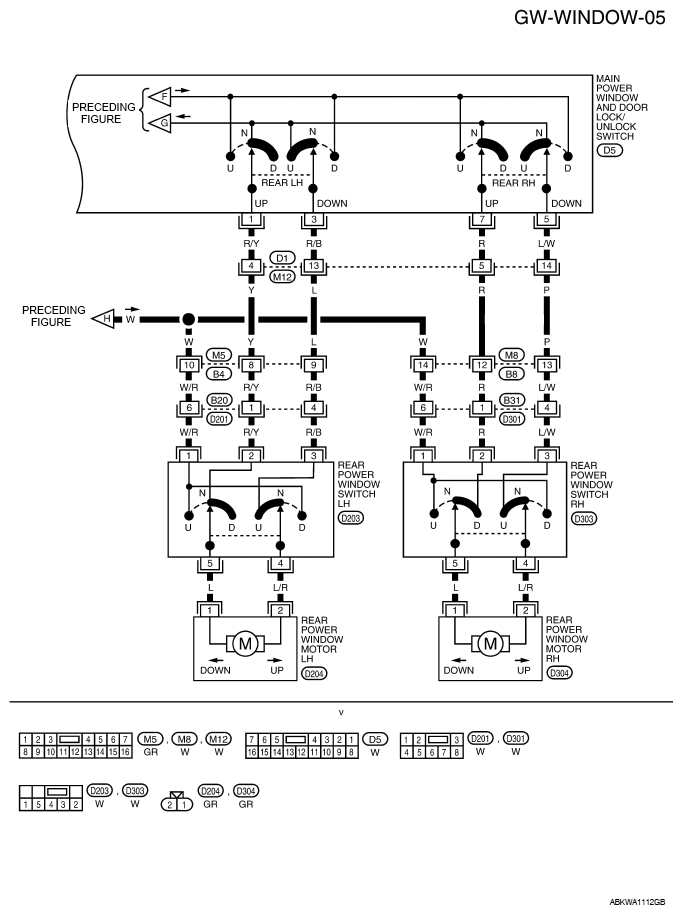

Fig 5: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-05)
G07142753Courtesy of NISSAN NORTH AMERICA, INC.
