Service Information: Illumination: Schematic

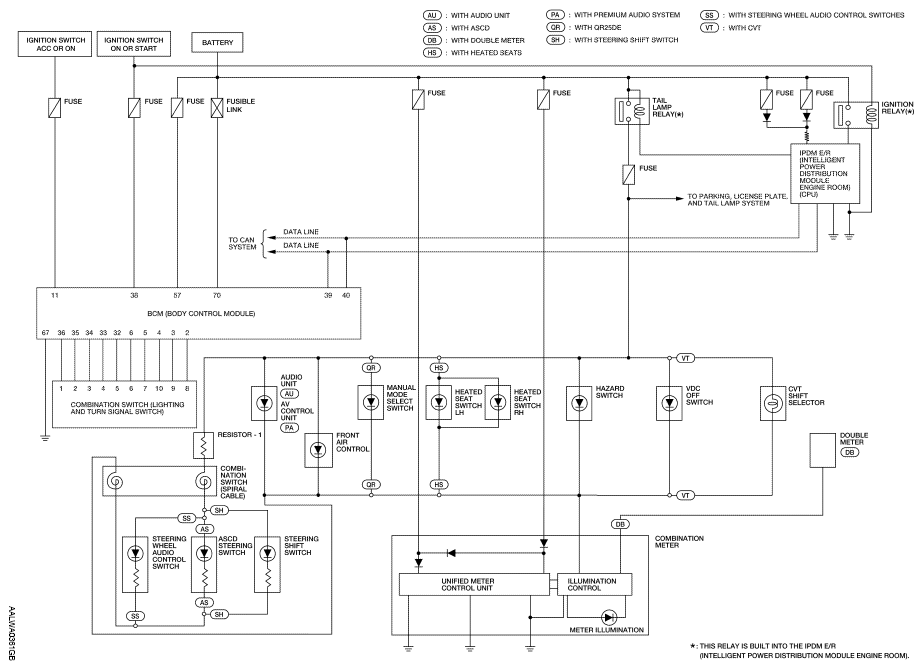

Fig 1: Identifying Illumination Lamp Schematic (LT-ILL-01)
G08181923Courtesy of NISSAN NORTH AMERICA, INC.
