Engine Control System: Schematic

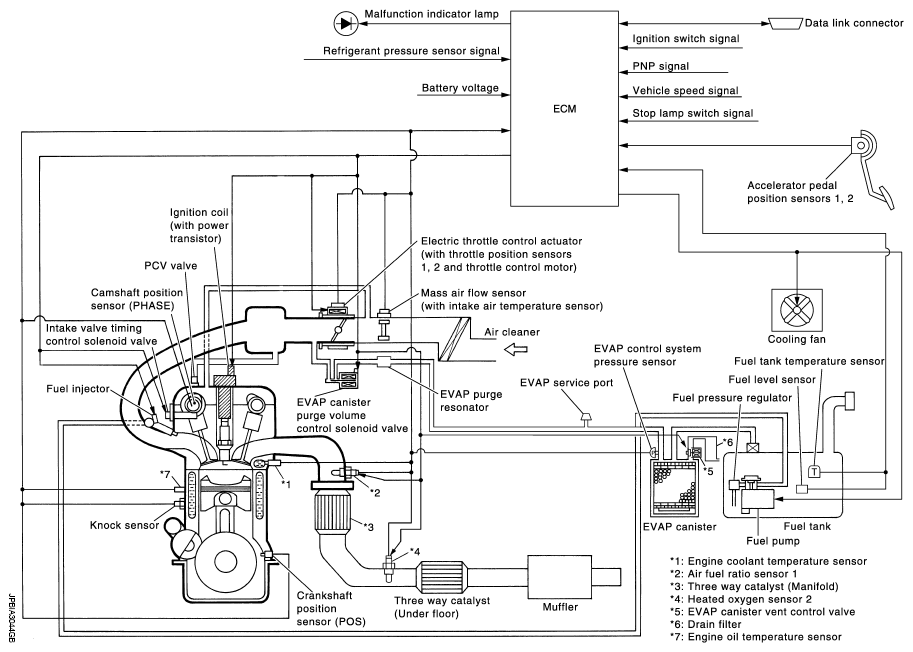

Fig 1: Engine Control System Schematic
G06550840Courtesy of NISSAN NORTH AMERICA, INC.
