DTC P2101: Electric Throttle Control Function: Wiring Diagram

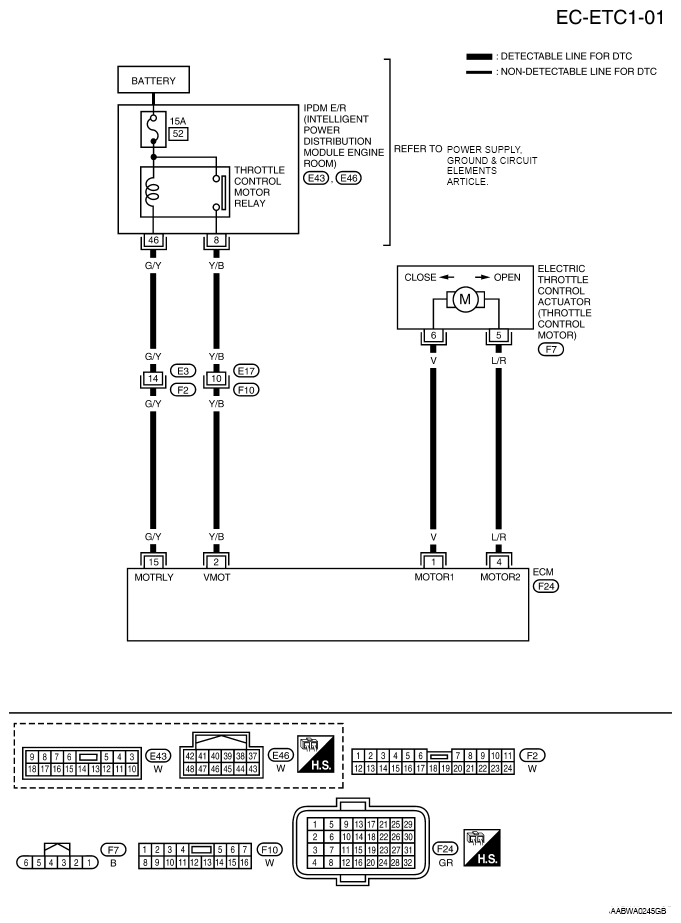

Fig 1: Identifying Wiring Diagram With Connector End View (EC-ETC1-01)

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Terminal No.

Wire color

Item

Condition

Data (DC voltage)

Throttle control motor (Open)

[Ignition switch: ON]

Engine stopped
Shift lever: D (CVT), 1st (M/T)
Accelerator pedal: Fully depressed

Approximately 3.2 V⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

Y/B

Throttle control motor power supply

[Ignition switch: ON]

Battery voltage (11 - 14 V)

L/R

Throttle control motor (Close)

[Ignition switch: ON]

Engine stopped
Shift lever: D (CVT), 1st (M/T)
Accelerator pedal: Fully released

Approximately 1.8 V⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

G/Y

Throttle control motor relay

[Ignition switch: OFF]

Battery voltage (11 - 14 V)

[Ignition switch: ON]

0 - 1.0 V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
