ASCD Indicator: Wiring Diagram

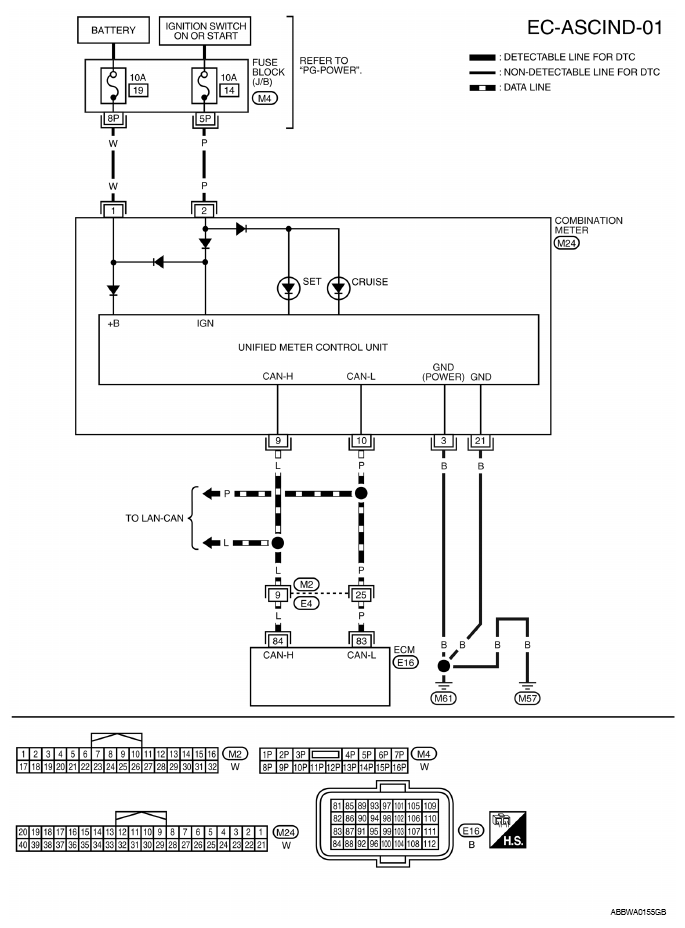

Fig 1: Identifying Wiring Diagram With Connector End View (EC-ASCIND-01)
