CVT CONTROL SYSTEM: Circuit Diagram

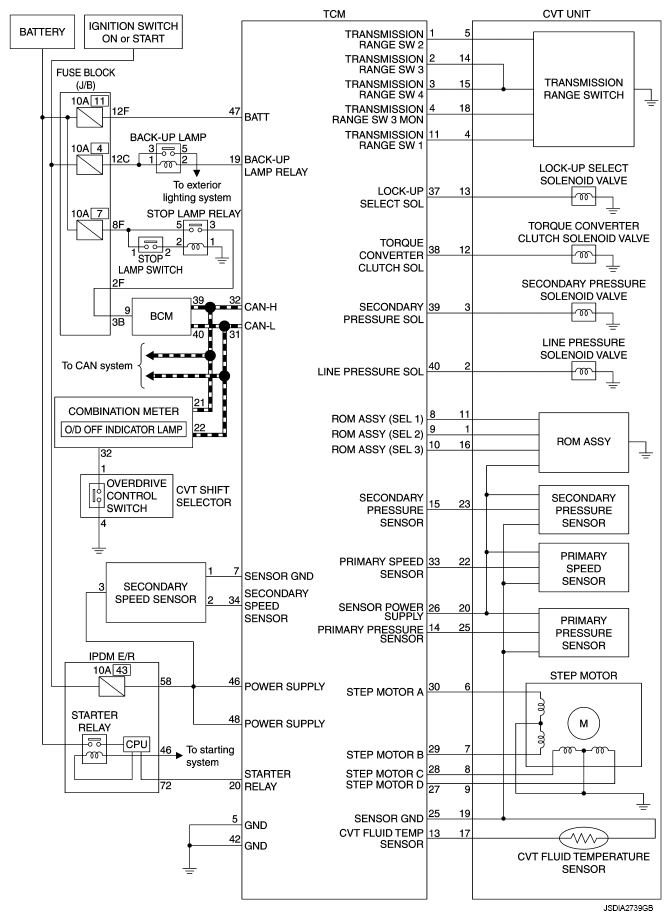

Fig 1: Identifying CVT Control System Circuit Wiring Diagram
G07051966Courtesy of NISSAN NORTH AMERICA, INC.
