OIL PRESSURE CONTROL SYSTEM: System Diagram

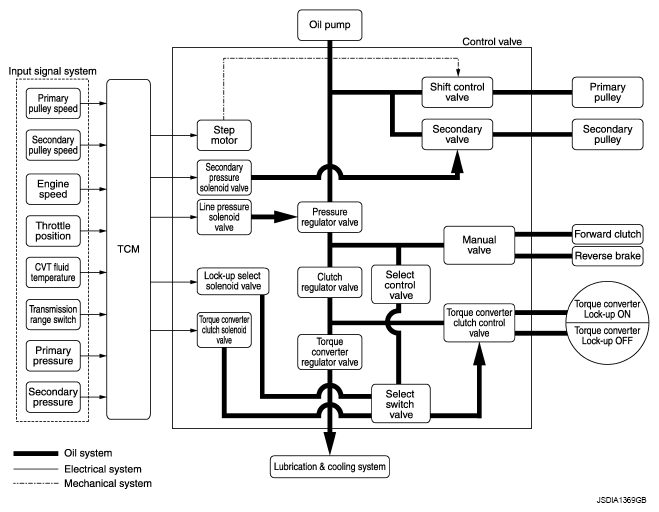

Fig 1: Identifying Oil Pressure Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
