CAN COMMUNICATION SYSTEM : CAN System Specification Chart
WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Determine CAN system type from the following specification chart.
NOTE:
Refer to
"TROUBLE DIAGNOSIS PROCEDURE " for how to use CAN system specification chart.
CAN SYSTEM SPECIFICATION CHART
| Body type | 4-door wagon | ||||
| Axle | 2WD | ||||
| Engine | VQ35DE | ||||
| Transmission | CVT | ||||
| Brake control | VDC | ||||
| Color display (7 inches or 8 inches) | x | x | |||
| Automatic sliding door | x | x | x | x | |
| Automatic drive positioner | x | ||||
| Automatic back door | x | x | x | ||
| CAN system type | 1 | 2 | 3 | 4 | 5 |
| CAN communication control unit | |||||
| ECM | x | x | x | x | x |
| Power steering control module | x | x | x | x | x |
| ABS actuator and electric unit (control unit) | x | x | x | x | x |
| TCM | x | x | x | x | x |
| BCM | x | x | x | x | x |
| Data link connector | x | x | x | x | x |
| Combination meter | x | x | x | x | x |
| Steering angle sensor | x | x | x | x | x |
| Air bag diagnosis sensor unit | x | x | x | x | x |
| AV control unit | x | x | |||
| BSW control module | x | ||||
| Sliding door control unit RH | x | x | x | x | |
| Driver seat control unit | x | ||||
| Sliding door control unit LH | x | x | x | x | |
| Automatic back door control module | x | x | x | ||
| IPDM E/R | x | x | x | x | x |
| BSW communication control unit | |||||
| BSW control module | x | ||||
| Side radar LH | x | ||||
| Side radar RH | x | ||||
| x: Applicable | |||||
VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
NOTE:

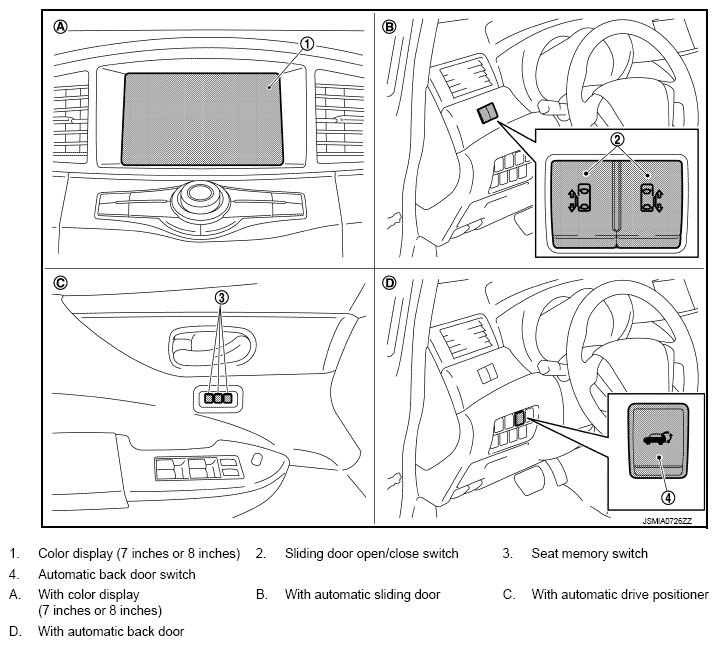

Check CAN system type from the vehicle shape and equipment.
