Removal and Installation: Notes

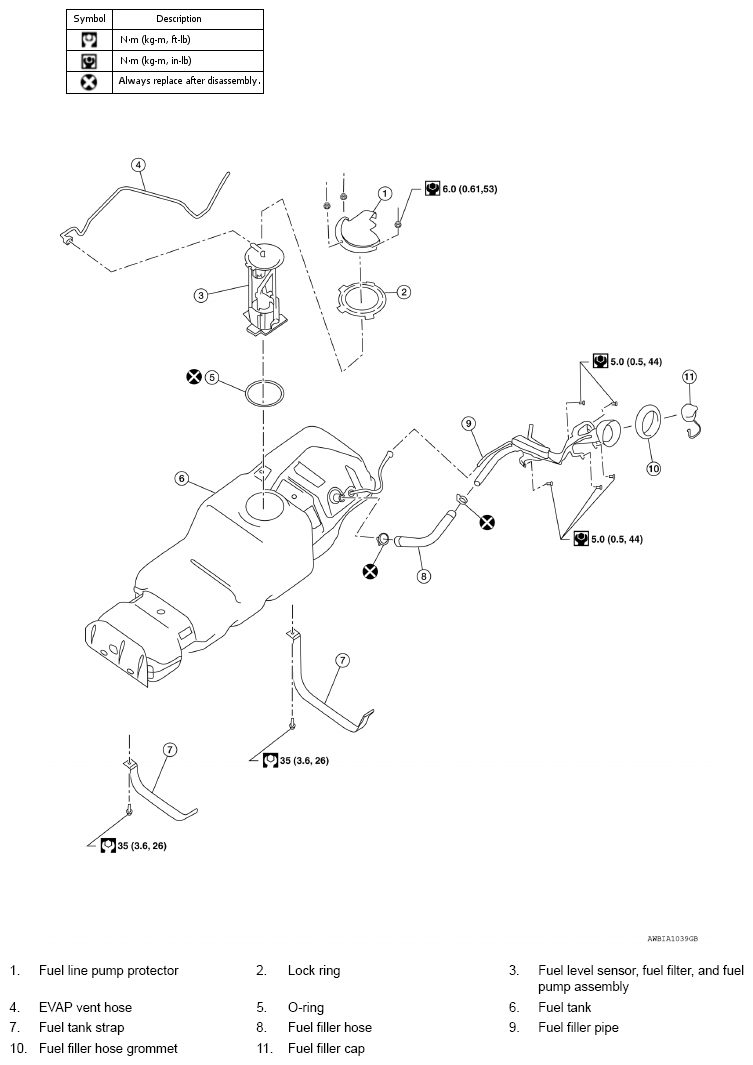

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
G08435958Courtesy of NISSAN NORTH AMERICA, INC.
