Component Parts Location

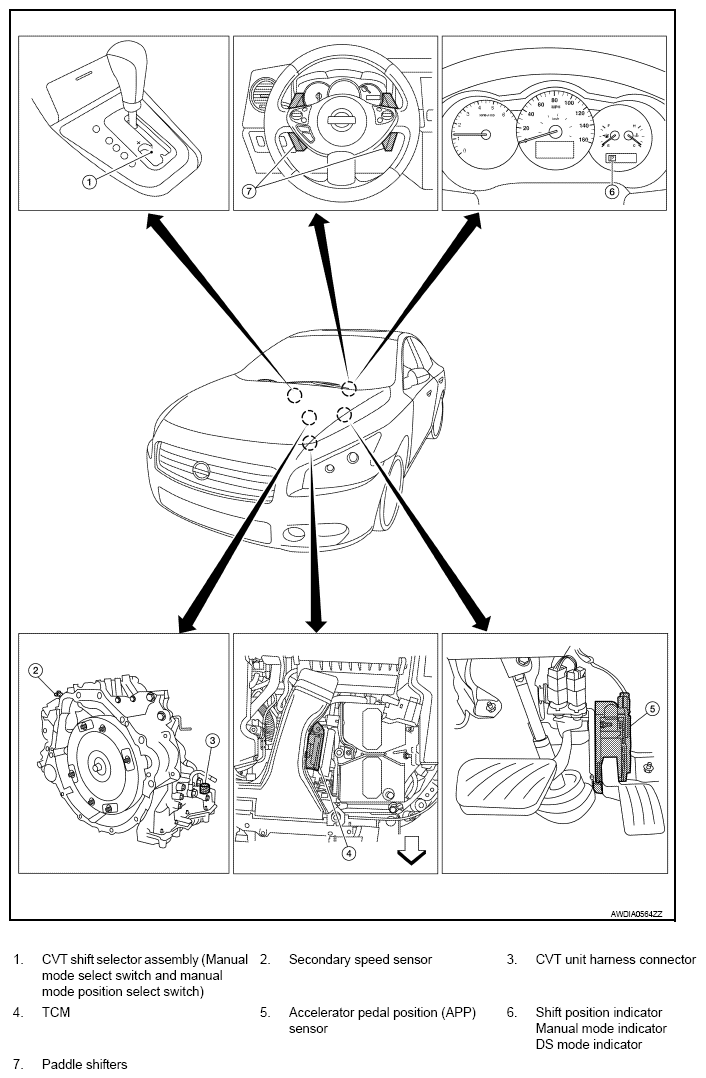

Fig 1: Identifying Control System Component Parts Location
G08147898Courtesy of NISSAN NORTH AMERICA, INC.
