Disassembly and Assembly: Notes

The steering column assembly without electric motor is not serviceable and must be replaced as an assembly.

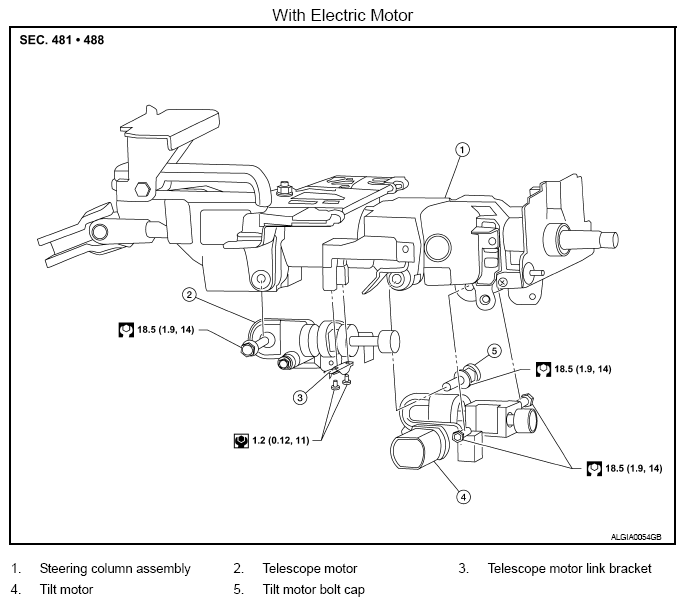

Fig 1: Disassembled View Of Steering Column With Torque Specifications (With Electric Motor)
G08146606Courtesy of NISSAN NORTH AMERICA, INC.
