Lubrication System: Schematic

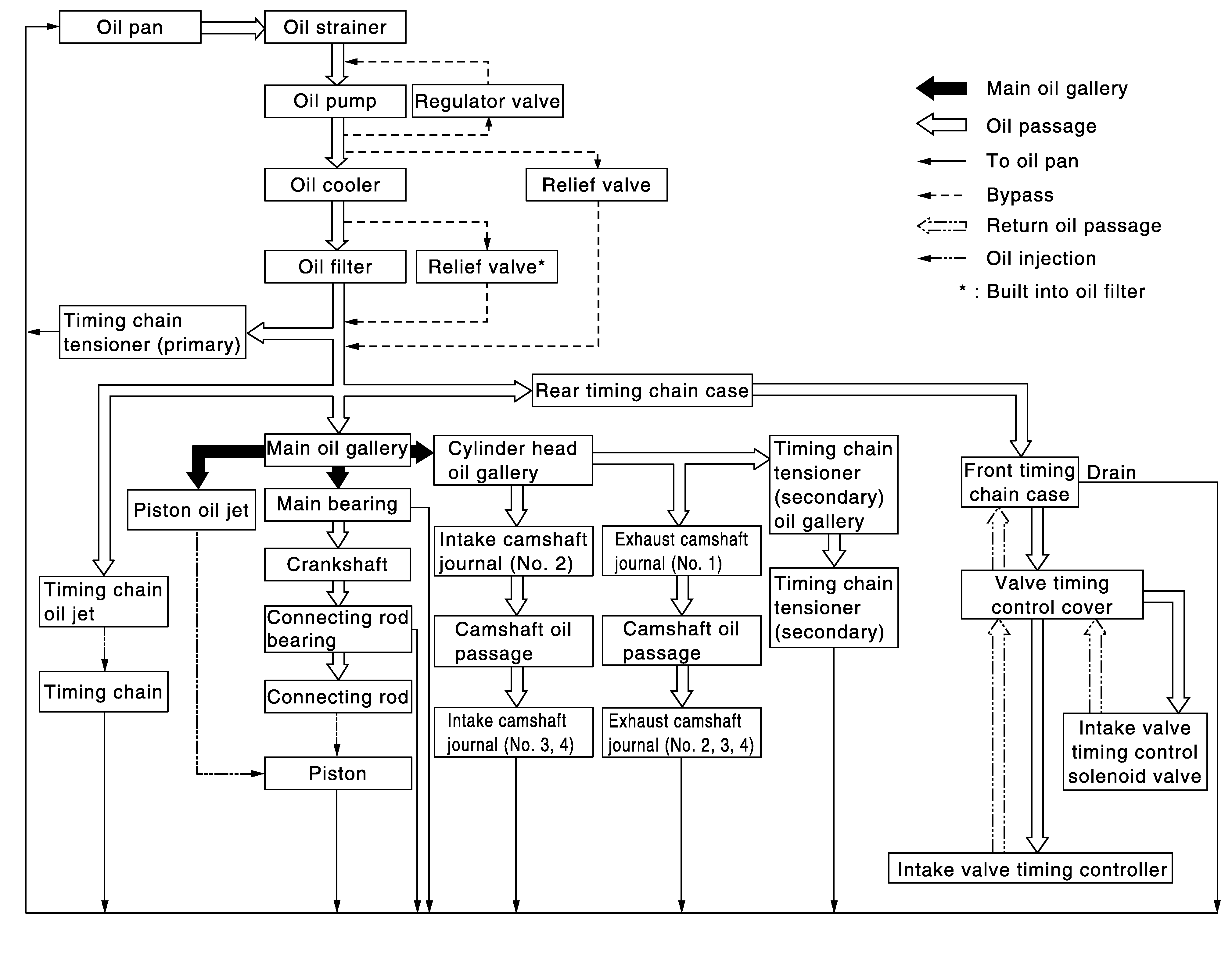

Fig 1: Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
